Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
 |
| Place of Origin: | China |
| Brand Name: | GME |
| Certification: | CE |
| Minimum Order Quantity: | 50pcs |
|---|---|
| Packaging Details: | cartons， pallet |
| Delivery Time: | 7~10 working days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 100000 pcs per Month |
| Power Source: | Electric | Temperature Range: | -200~650℃ |
|---|---|---|---|
| Voltage: | 12-480V | Probe Material: | Stainless Steel Or Nickel |
| Style: | K, J, | Pairs Quantity Of Element: | Simplex/duplex |
| Heating Element: | Nichrome Resistance | Mounting: | Thread/flange/none |
| Function: | Temperature Sensor | Feature: | Economical |
| Types Of Terminal Box: | Anti-spray/water-proof | ||
| High Light: | Stainless Steel Probe Thermocouple,Nickel Probe Thermocouple,480V rtd temperature sensor |
||

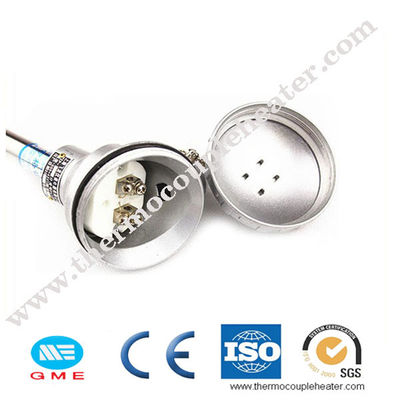

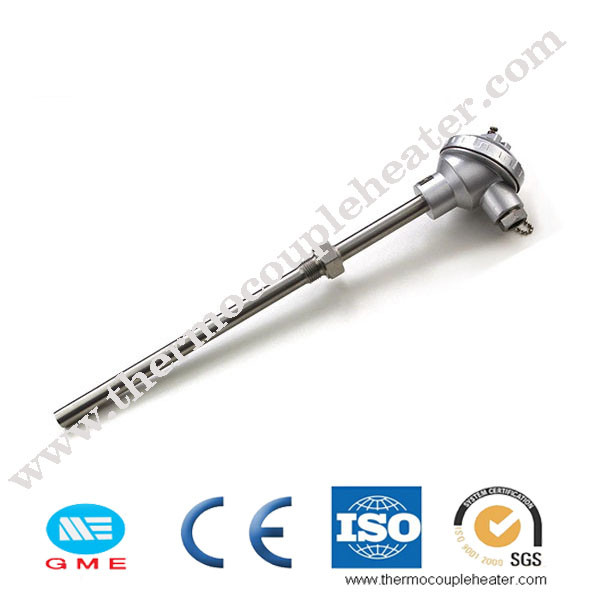

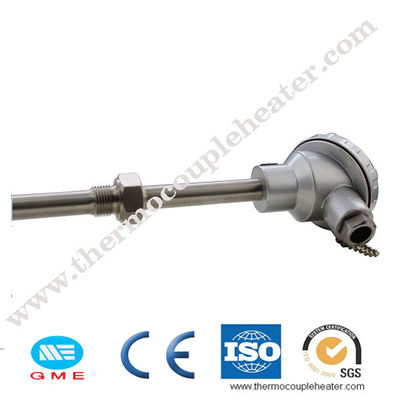

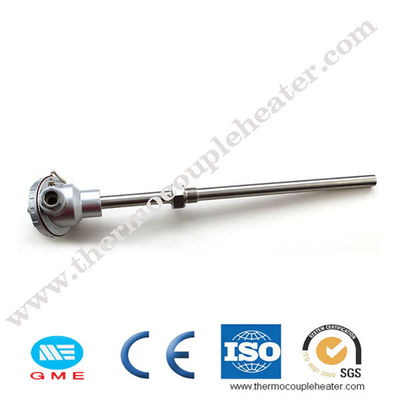

thermocouple with movable flange assembly thermocouple (temperature instrument)
Description:
Thermocouples are very simple and durable temperature sensors. Thermocouple come with different pairings of materials allowing for a very wide range of applications. The different compositions are standardized into thermocouple types. The different types are given letter names which are standardized across the industry.
Thermocouples are manufactured in many different configurations for multitude of applications. Diameters, lengths, sheath material, lead lengths and sensor material are just a few of the variables that go into determining the style of thermocouple when manufactured. The main determining factors of what type thermocouple needs to be used in a application is temperature, environment, response time and accuracy. The junction of the thermocouple can be grounded, ungrounded or exposed.
Thermocouples are easy to use, Thermocouples are the most popular temperature sensors. They are cheap, interchangeable, have standard connectors and can measure a wide range of temperatures.

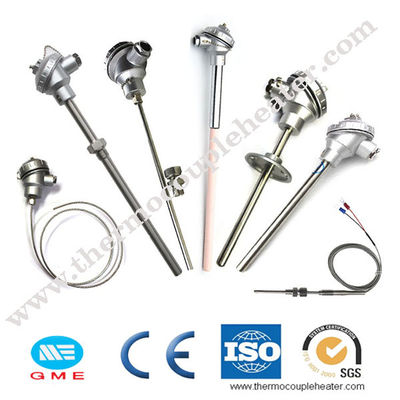

Thermocouple type:Assembly thermocouple, Armored thermocouple, bayonet spring fixed thermocouple,high temperature thermocouple, platinum and rhodium thermocouple,anti-corrosion thermocouple, wear-resistant thermocouple, high pressure thermocouple, special thermocouple, thermocouple, hand-held thermocouple, miniature thermocouple, noble metal thermocouple, rapid thermocouple, tungsten rhenium thermocouple, single core armored thermocouple etc.
Protection Tube:
ø
Technical parameter
| Model | Graduation mark |
temperature range |
Mounting& Fixing |
| WRK | K | 0-1300°C |
1.without Fixing Device 2.Threaded Connector 3.Movable Flange 4.Fixed Flange 5.Elbow Tube Connection 6.Threaded Cone Connection 7.Straight Tube Connection 8.Fixed Threaded Tube Connection 9.Movable Threaded Tube Connection |
| WRE | E | 0-800°C | |
| WRJ | J | 0-800°C | |
| WRT | T | -40-350°C | |
| WRS | S | 0-1600°C | |
| WRR | R | 0-1600°C | |
| WRB | B | 600-1700°C | |
| WRM | N |
0-1200°C |

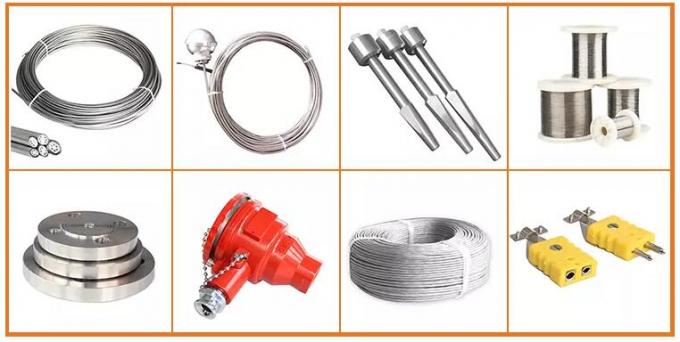

Related Products:
