1mm diameter pt100 stainless steel temperature sensor

China 1mm diameter pt100 stainless steel temperature sensor supplier

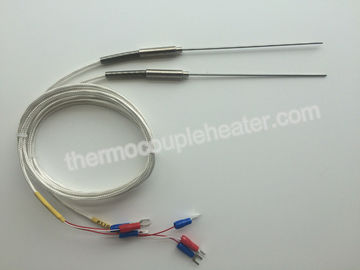

Large Image :  1mm diameter pt100 stainless steel temperature sensor

Product Details:

Place of Origin: China
Brand Name: GME
Certification: ISO9001
Model Number: GME-1mm pt-100

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Packaging Details: Standard Export Packing
Delivery Time: 7-15days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000pcs/month
Contact Now
Verified Supplier

China

  • Product Details
Detailed Product Description
Diameter Of Probe: 1mm Material: Stainless Steel 304
Accuracy: Class1 Usage: Industrial
Type: PT-100 TYPEWire Material: Fiberglass Shielding Wire
Probe Length: 100mm

1mm diameter pt100 stainless steel temperature sensor



Features:



Minimum diameter: 1mm

Accuracy: class1

Material:stainless steel 304





Specification:



type pt100
temperature range 0-400
probe diameter 1mm
probe length 100mm
probe material SS304
wire length 1000mm
wire material fiberglass shielding wire





Pictures



1mm diameter pt100 stainless steel temperature sensor



1mm diameter pt100 stainless steel temperature sensor

temperature sensor PT100



Code Mark Use temperature

Protection tube

materials

Class of accuracy and allowable error



GME



PT100



-200~500°C

304

321

316L

Grade A:

+/- (0.15+0.002%|t|)

Grade B:

+/- (0.3+0.005%|t|)





Pt thermal

Graduation mark ±(°C)Et value on various temperature spots R100/R0
-200 -100 0 100 200 300 400 500 600 650
Pt RTD Grada Pt10 0 0.55 0.35 0.15 0.35 0.55 0.75 0.95 1.15 1.35 1.45 1.3850±0.0005
A Pt10
Grada Pt100 1.3 0.8 0.3 0.8 1.3 1.8 2.3 2.8 3.3 3.6 1.3850±0.0012
B Pt10
Cu RTD   Cu50 1.5 0.9 0.3 0.9 1.5 2.1 ———— ———— —— ———— 1.428±0.002
Cu100






Sensor Type RTD Pt100 element
PPCK: RTD Pt1000 element
Probe Diameter 1mm-6mm
Detector Elements Simplex (1 channel)
Duplex (2 channels)
Probe Length (mm) As required to suit your application
Wiring Configuration 2-wire
3-wire
4-wire (Simplex only)
Grade of Element B (Accuracy: ±0.30°C at 0°C, ±0.80°C at 100°C)
A (Accuracy: ±0.15°C at 0°C, ±0.35°C at 100°C)
Cable Length (mm) As required to suit your application
Extension Cable PVC Insulated (+105°C), 2, 3, 4-wire
PFA Insulated (+250°C), 2, 3, 4, 6-wire
Fibreglass/SSB (+400°C), 2, 3, 4-wire
Optional RTD Connector Miniature RTD Plug
Miniature 3-Pin RTD Plug
Standard RTD Plug
Standard 3-Pin RTD Plug
Optional 316 Stainless Steel Compression Fittings To suit probe Ø: 1mm, 1.5mm, 2mm, 3.0mm, 4.0mm, 4.5mm, 6.0mm



Application:



For food temperature measurement;

Also for liquid and gel temperature measurement;

Entire probe covered with metal coating protection;
