Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
 |
| Place of Origin: | China |
| Brand Name: | GME |
| Certification: | CE |
| Minimum Order Quantity: | 50pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | cartons， pallet |
| Delivery Time: | 7~10 working days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 100000 pcs per Month |
| Power Source: | Electric | Dimension: | Customized |
|---|---|---|---|
| Voltage: | 120v 220v 240v 380v, 220V | Sheath Material: | Stainless Steel Or Nickel |
| Cross Section: | 3.0 X 3.0, 3.30 X 3.30, 3.5 X 3.5, 4 X 4,4.20 X 2.20,4.20 X 2.50 | Style: | Straight Or Coil |
| Lead Wire: | , Fiberglass , Metal Mesh | Coiling Scheme: | Tangential, Radial Exits, Axial |
| Material: | Brass And Stainless Steel | Application: | Manifolds, Hot Runner/ Injection |
| Color: | Silver Or Fully Black | ||
| High Light: | 120V Hot Runner Mini Coil Heater,CE 240V Mini Coil Heater,brass hot runner coil heater |
||

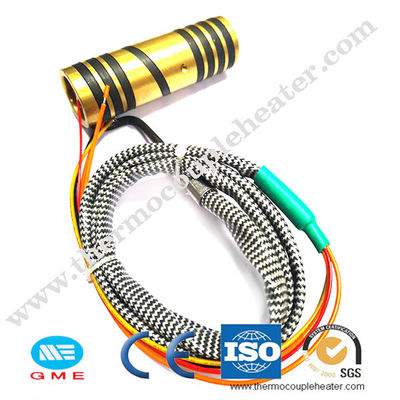

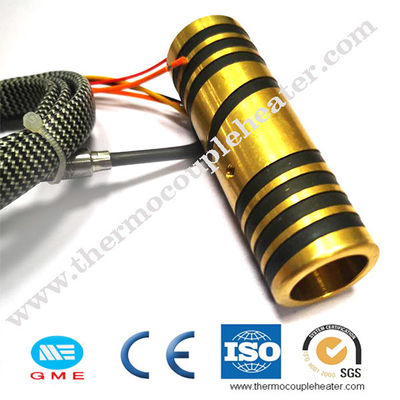

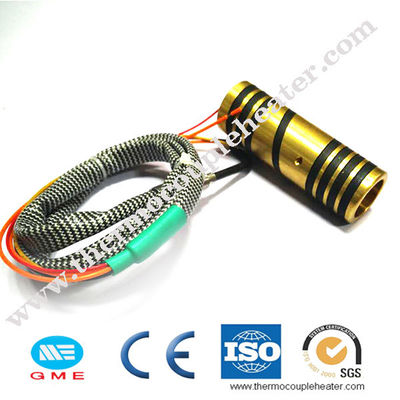

Hot Runner Mini Heater With Thermocouple,Mini Coil Heaters For Injection Molding Machine Brass Coil Heater
Description:
Coil heater is one kind of tubular electric heating elements. These components are mainly used in aerospace, petrochemical, rubber and plastics industries, and the like, it can be used to heat still or flowing air, water, oil,nitrate, alkali and other kinds of liquid. It can also be used to melt light metal or to heat metal moulds. It has advantages such as simple structure, long heat lifetime, high thermal efficiency, reliable and safe operation and so on.
The hot runner heaters are annealed to acquire malleability for bending into any shape. Injection molding coil heaters with thermocouple are also available.
Specification:
Standard Specifications and Tolerances of Coil Heater:
Electrical Dimensional
Resistance Tolerance: ±10% Standard Square Cable: 0.125", 0.134" square
Wattage Tolerance: ±10% Standard Rectangular Cable: 0.110" × 0.160"
Maximun Amperage: 20 Amps Standard Round Cable Diameters: 0.115", 0.120", 0.125"
Standard Voltage: 120 or 240 Volts 0.132", 0.153", 0.163"
Cale Diameter Tolerance: ±0.005
Standard Potting Adapter: 5/16" Diameter, 1/2" Diameter
Standard Coil I.D: 3/8"—2-1/2"
Coil I.D. Tolerance:
3/8" to 3/4": +0.000", -0.020"
7/8" to 1-1/4": +0.000", -0.030"
1-1/2" to 2-1/2": +0.000", -0.060"
Coil Width (length):
Up to 12" on 3/8" to 3/4" I.D.
Up to 16" on 7/8" to 1-1/4" I.D.
Up to 18" on 1-1/2" to 2-1/2"
Coil Width Tolerance:
0"—6": +0, -1/8"
6"—12": +1/8", -1/4"
12"—18": ±1/4"
Higher or lower voltages and other dimensions aplicable for specific heater designs; consult Laier with your requirements.
Design Features:
1. High temperatures resistance
2. Unheated straight section
3. Precise temperature control
4. Fast response
5. Choice of lead orientation
6. Choice of lead protection
7. Longer heat lifetime
8. Round, square and rectangular cable
9. High watt densities
10. Rugged, durable construction
11. Available with built-in thermocouple
12. Made to customers' requirements
