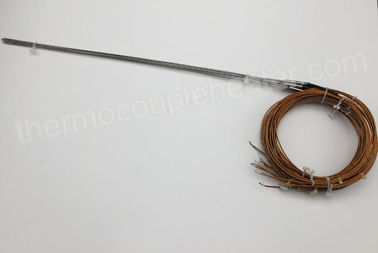

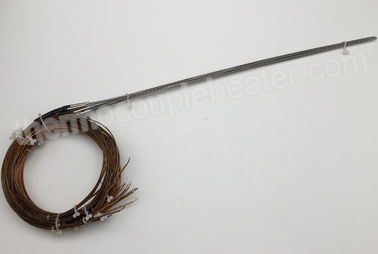

Type J Thermocouple Probe For Hot Runner System With Metal Head And Shrink Tube

Type J Thermocouple Probe For Hot Runner System With Metal Head And Shrink Tube

    • Type J Thermocouple Probe For Hot Runner System With Metal Head And Shrink Tube
    • Type J Thermocouple Probe For Hot Runner System With Metal Head And Shrink Tube
  • Type J Thermocouple Probe For Hot Runner System With Metal Head And Shrink Tube

    Product Details:

    Place of Origin: China
    Brand Name: GME
    Certification: ISO9001/CE

    Payment & Shipping Terms:

    Minimum Order Quantity: 10pcs
    Price: Negotiable
    Packaging Details: Carton or as per your request
    Delivery Time: 7~20 working days
    Payment Terms: L/C, T/T,PAYPAL
    Supply Ability: 100000 pcs per Month
    Contact Now
    Detailed Product Description
    Product Name: Type J Thermocouple Probe With Metal Transition For Hot Runner System Application: Temperature Sensor For Plastic Industry
    Calibration: Type K, J Accuracy: Class I
    Max.temperature: 500F Or 260C Sheath Material: 304SS ,316SS,Inconel 600





    Type J Thermocouple Probe For Hot Runner System With Metal Head And Shrink Tube





    Product  Description:



    Thermocouples are very simple and durable temperature sensors. Thermocouple come with different pairings of materials allowing for a very wide range of applications. The different compositions are standardized into thermocouple types. The different types are given letter names which are standardized across the industry.

    Thermocouples are manufactured in many different configurations for multitude of applications. Diameters, lengths, sheath material, lead lengths and sensor material are just a few of the variables that go into determining the style of thermocouple when manufactured. The main determining factors of what type thermocouple needs to be used in a application is temperature, environment, response time and accuracy. The junction of the thermocouple can be grounded, ungrounded or exposed.

    Thermocouples are easy to use, Thermocouples are the most popular temperature sensors. They are cheap, interchangeable, have standard connectors and can measure a wide range of temperatures.


    Information of J type thermocouple

    Type J (iron–constantan) has a more restricted range than type K (−40 to +750 °C), but higher sensitivity of about 55 µV/°C.The Curie point of the iron (770 °C) causes an abrupt change in the characteristic, which determines the upper temperature limit.



    Type J Thermocouple Probe For Hot Runner System With Metal Head And Shrink Tube



    Specification:





    Probe Outside Diameter

    0.5mm, 1.0mm, 1.5mm

    Calibration

    Standard limits of error (Type K,J,T,E,N)

    Special limits or error (Type K,J,T,E,N)



    Sheath Material

    304 Stainless Steel

    316 Stainless Steel

    Inconel 600



    Junction

    Ungrounded , Grounded



    Cable Insulation Description

    24 Gage, Stranded , Kapton

    24 Gage, Solid, Kapton

    24 Gage, Stranded, Teflon

    24 Gage,Solid, Teflon

    24 Gage,Stranded, Fiberglass

    24 Gage, Solid ,Fiberglass

    Termination type

    50mm split leads and 15mm Bare Ends.

    50mm split leads and spade lugs.

    Standard Male Plug (425F)

    Standard Female Jack(425F)

    Mini Male Plug(425F)

    Mini Female Jack(425F)

    Hi Temp Male Plug(800F)

    Hi Temp Female Jack(800F)





    Feature:



    1. Reed thermal components, good seismic performance;

    2. Simple assembly and easy to change;

    3. Large measuring range (200 °C ~ 1300 °C, 270 °C ~ 2800 °C under special circumstances ).

    4. Fast heat response time;

    5. High temperature can reach 2800 degrees;

    6.  High precision measurement;

    7. High mechanical strength and good compression performance;

    8. Long service life.




    Application:


    The Hot Runner Thermocouple has been designed to be used in below area,

    1.Hot Runner bushings, drops and nozzles
    2. Moulds used in injection molding machines
    3. For direct installation in the process

    4. Hot Runner manifolds .
    5.  Plastics and rubber industry
