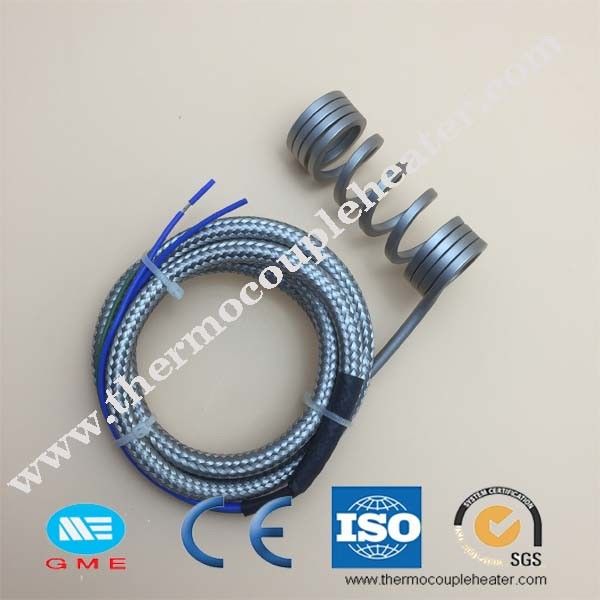

Spring Coil Heater With Thermocouple Mould Nozzle , Electric Heating Element

Spring Coil Heater With Thermocouple Mould Nozzle , Electric Heating Element

    • Spring Coil Heater With Thermocouple Mould Nozzle , Electric Heating Element
    • Spring Coil Heater With Thermocouple Mould Nozzle , Electric Heating Element
    • Spring Coil Heater With Thermocouple Mould Nozzle , Electric Heating Element
    • Spring Coil Heater With Thermocouple Mould Nozzle , Electric Heating Element
  • Spring Coil Heater With Thermocouple Mould Nozzle , Electric Heating Element

    Product Details:

    Place of Origin: China
    Brand Name: GME
    Certification: CE

    Payment & Shipping Terms:

    Minimum Order Quantity: 50pcs
    Price: Negotiable
    Packaging Details: cartons, pallet
    Delivery Time: 7~10 working days
    Payment Terms: T/T, Western Union, MoneyGram, L/C
    Supply Ability: 100000 pcs per Month
    Contact Now
    Detailed Product Description
    Power Source: Electric Dimension: Customized
    Voltage: 120v 220v 240v 380v, 220V Sheath Material: Stainless Steel Or Nickel
    Cross Section: 3.0x3.0,3.3x3.3mm,4.50 * 4.50 Mm Style: Straight Or Coil
    Lead Wire: Teflon, Fiberglass , Metal Mesh Coiling Scheme: Tangential, Radial Exits, Axial
    Material: Brass And Stainless Steel Application: Manifolds, Hot Runner/ Injection
    Surface Finishing: Bright Or Soft Annealed Insulation Resistance: > 5 MΩ



    Good Quality 240V Hot runner spring coil heater with thermocouple mould nozzle


    Description:



    1) Cartridge heaters are manufactured in two basic forms - high density and low density.Cartridge heaters are used to heat plastic injection moulds, dies, platens and so forth, whereas low density cartridge heaters are more suitable for packing machinery, heat sealing, labelling machines and hot stamping applications.


    Specification:



    1. Maximum Sheath Temperature: 700°C
    2. Voltage: 12V~380V
    3. Wattage: 70W~1000W
    4. Sectional area: 3X3,4.2X2.2,4X2,4X2.7,4X2.5 3.3 X 3.3 3.5 X 3.5 4 X 4,2.2X1.3

    5. Available sheath: nylon,metal braided,fiberglass ,silicone rubber, kevlar



    Product Name
    Hot Runner Coil and Cable Heaters with thermocouple K/J
    Section area
    3*3, 3.3*3.3, 3.5*3.5, 4*4, 4.2*4.2, 2.2*4.2
    Sheath Material
    Stainless Steel
    Insulation Material
    High Pure MgO
    Heating Coil ID
    10mm-38mm
    Voltage
    12v-380v
    Wattage
    70w-3000w
    Build-in thermocouple
    With Thermocouple J/K
    Available sheath
    nylon,metal braided,fiberglass ,silicone rubber, kevlar
    Sheath's color
    standard is black,other color is also available
    Resistance Wire
    Ni Cr 80-20
    Maximum Sheath Temperature
    700°C
    Length Tolerance (Straight)
    5%

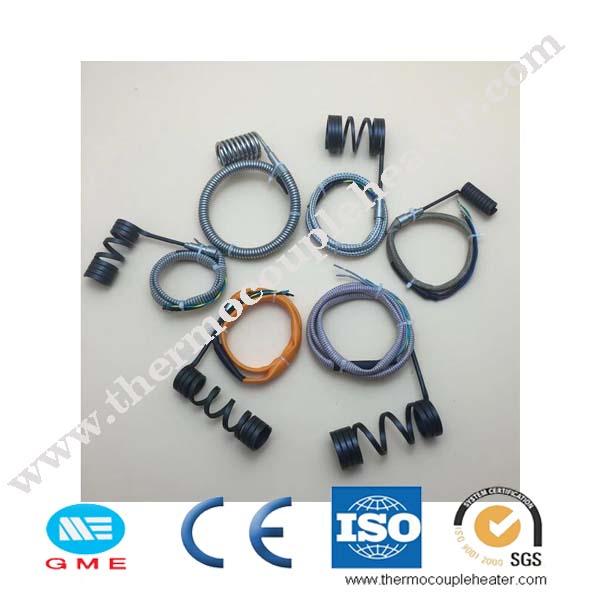

    Spring Coil Heater With Thermocouple Mould Nozzle , Electric Heating Element


    Application:



    1.Caustic Cyanide used in gold processing
    2.Caustic solutions Detergent
    3.Sterilizing equipment
    4.Plastic processing&packaging machinery
    5.Ovens&dryers
    6.Dies&Tools
    7.Water& Oil heating appliances
    8.Vending machines
    9.Medical equipmentstailed information about what you need.

    .
