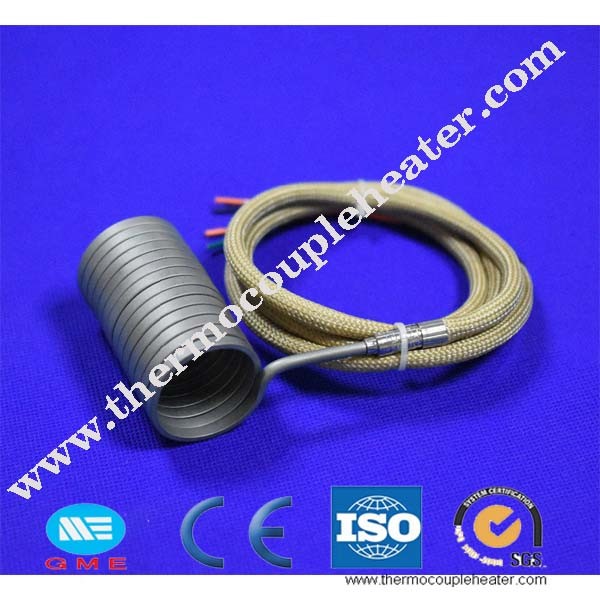

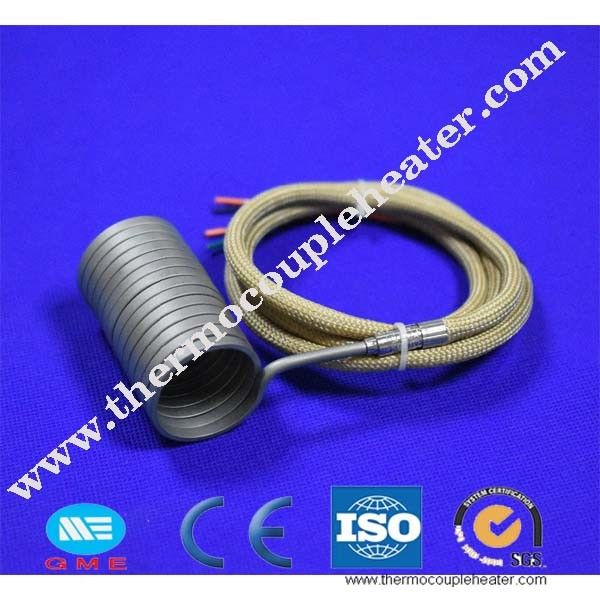

Hot Runner System 5 Wire Industrial Electric Coil Heaters For Injection Molding

Hot Runner System 5 Wire Industrial Electric Coil Heaters For Injection Molding

    • Hot Runner System 5 Wire Industrial Electric Coil Heaters For Injection Molding
    • Hot Runner System 5 Wire Industrial Electric Coil Heaters For Injection Molding
    • Hot Runner System 5 Wire Industrial Electric Coil Heaters For Injection Molding
    • Hot Runner System 5 Wire Industrial Electric Coil Heaters For Injection Molding
    • Hot Runner System 5 Wire Industrial Electric Coil Heaters For Injection Molding
  • Hot Runner System 5 Wire Industrial Electric Coil Heaters For Injection Molding

    Product Details:

    Place of Origin: China
    Brand Name: GME
    Certification: CE

    Payment & Shipping Terms:

    Minimum Order Quantity: 50pcs
    Price: Negotiable
    Packaging Details: cartons, pallet
    Delivery Time: 7~10 working days
    Payment Terms: T/T, Western Union, MoneyGram, L/C
    Supply Ability: 100000 pcs per Month
    Contact Now
    Detailed Product Description
    Power Source: Electric Dimension: Customized
    Voltage: 120v 220v 240v 380v, 220V Sheath Material: SUS304,SUS316
    Cross Section: 3.0x3.0,3.3x3.3mm,4.50 * 4.50 Mm Style: Straight Or Coil
    Lead Wire: Teflon, Fiberglass , Metal Mesh Coiling Scheme: Tangential, Radial Exits, Axial
    Material: Brass And Stainless Steel Application: Manifolds, Hot Runner/ Injection
    Surface Finishing: Bright Or Soft Annealed Insulation Resistance: > 5 MΩ



    Hot Runner System 5 Wire Industrial Electric Coil Heaters For Injection Molding

    Description:



    1) Spring heater is made of nickel chrome resistance wire placed inside chrome nickel steel tube that is filled with MgO powder.



    2) Spring heater is also known as high performance tubular heaters or cable heaters.



    3) Spring heater can be produced with or without built in thermocouples.



    4) Spring heater is widely used in heating engineering, mold, plastic industry, including the transfer machinery, medical equipment, casting process, welding, heat treatment process and many other industries and fields



    Specification:



    1.Use condiction:environment temperature:-20~+60C,Relative temperature<95%

    2.Leakage current: <0.5MA

    3.Insulation resistance: ≥5MO

    4.Groud resistance: <0.1O

    5.Voltage resistance: no electric breakdown for 1 minute under 1500V

    6.Temperature endurance: 100-1200 ℃



    Voltage 12~480V
    Wattage 100~3000W
    Heating Section 2.2*4.2/3*3/3.4*3.4/3.5*3.5/4*4mm
    Thermal Proection Built in type "K" or "J" thermocouple
    Operation Temperature 0~700C
    Lead Cable Fiberglass/Feb/Silicone/Stainless steel braided/Armor cable
    Dimension Tolerance Coil ID ± 0.1mm to 0.2mm
    Coil Length ± 1mm
    Unheated Length 35mm (Standard)


    Hot Runner System 5 Wire Industrial Electric Coil Heaters For Injection Molding



    Application:



    1.Moulds&dies

    2.Manifolds

    3.Hot runner nozzles and spruce bushes

    4.Packaging machineries

    5.Injection moulding machines nozzle
