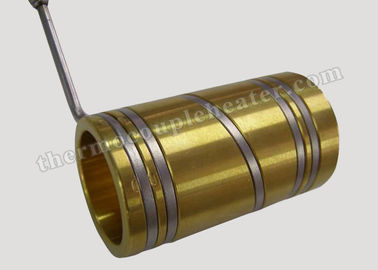

Professional Copper Hot Runner Heaters Coil 1000mm Lead Wire Length

Professional Copper Hot Runner Heaters Coil 1000mm Lead Wire Length

    • Professional Copper Hot Runner Heaters Coil 1000mm Lead Wire Length
    • Professional Copper Hot Runner Heaters Coil 1000mm Lead Wire Length
    • Professional Copper Hot Runner Heaters Coil 1000mm Lead Wire Length
  • Professional Copper Hot Runner Heaters Coil 1000mm Lead Wire Length

    Product Details:

    Place of Origin: China
    Brand Name: GME
    Certification: CE & ISO
    Model Number: Coil Heater

    Payment & Shipping Terms:

    Minimum Order Quantity: 10 pcs
    Price: Negotiation
    Packaging Details: Exported Case Packing
    Delivery Time: 7-15 working days after received your payment
    Payment Terms: L/C, D/P, T/T, Western Union, Paypal
    Supply Ability: 11,000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: Copper Heater Coil Insulated Material: Comressed MgO
    Application: Hot Runner Lead Wire Length: 1000mm
    Watt Density: 6.5 W / CM 2 Power(W): 200-3000W
    Dimension(L*W*H): Custom Size Max.Tempreture: 650℃
    High Light:

    electric resistance heater

    ,

    coil heater with thermocouple

    Hot Runner Copper Heaters Coil




    1. Copper Heaters Coil Brief Introduction



    • Make the groove according to the heating distribution
    • Compatiable with many coil heaters
    • Mini interior diameter 6mm
    • Mini length of the brass tube 30mm
    • Thermocouple K or J available
    • Good performance in heating conducting


    2. Copper Heaters Coil Characteristics

    • Standard sizes available with various cross section
    • Various Watt Density options available.
    • Robust Design with Choice of Terminal Exits
    • Designed for even heat profile
    • Precision fit on Hot Runner Nozzles & Manifolds
    • Highly Non-corrosive
    • Maximum heat transfer due to more contact area
    • Advanced Thermal Engineering
    • CE Certified
    • Available with built in Thermocouple


    3. Copper Heaters Coil Parameter.



    Professional Copper Hot Runner Heaters Coil 1000mm Lead Wire Length

    • Standard Configuration
    • Sleeve Material :copper
    • Unheated length(L1):45mm
    • Connector(cold side)(D1xU): Ф7.6x26
    • Power lines,grounding wire length(L):1000mm
    • Jacket: Silicone fiberglass sheathing establishment, black and others
    • Thermocouple: J type
    • Compensating lead wire length (L): 1000mm
    • Surface treatment: sandblasting;black ,polish

    Spring coil heater (H series)

    3.2x1.8

    Φ1.8
    Φ2.0

    Φ2.5

    4.2x2.2

    Voltage

    220V,230V,240V

    Power tolerance 115W-200W

    +/-10%

    Power tolerance  201W-2000W

    +5%-10%

    Out jacket length

    30mm~280mm

    inside jacket diameter

    10mm~42mm

    Unheating length

    45mm

    Max power density

    9W/cm²

    Heating Length tolerance

    +/-0.05mm

    Unheating length tolerance

    +/-2.5%

    Tolerance ID d ≤20mm

    0.05mm~0.10mm

    Tolerance cross section

    +/-0.10mm

    +/-0.15mm

    Thermocouple

    K,J,E

    None

    K,J,E

    Material

    304,321,316

    Maximum working temperature

    650℃

    Die electrical strength

    600V

    800V

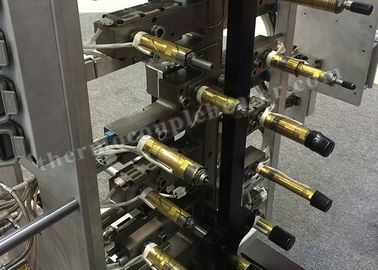

    4. Copper Heaters Coil Application


    Hot Runner Nozzles & Bushings.
    Hot runner Injection moulds
    Injection & Blow Moulding Machine Nozzles.
    PET prefrom & Thin wall container Moulds.
    Hot Runner Manifolds.

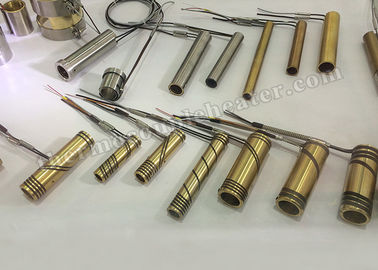

    5. Packing Information

    Professional Copper Hot Runner Heaters Coil 1000mm Lead Wire Length



    6. Transportation



    Professional Copper Hot Runner Heaters Coil 1000mm Lead Wire Length
