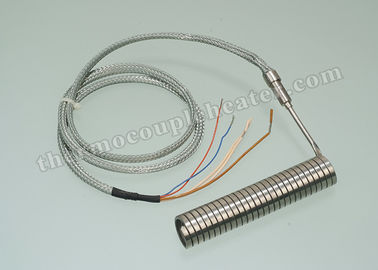

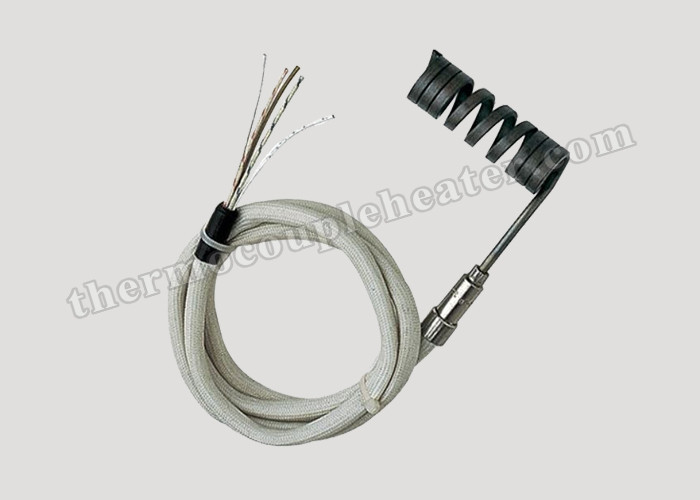

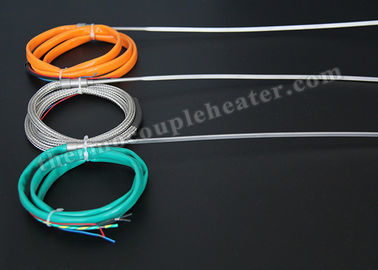

Injection Molding Hot Runner Electric Coil Heaters with K Type Thermocouple

Injection Molding Hot Runner Electric Coil Heaters with K Type Thermocouple

    • Injection Molding Hot Runner Electric Coil Heaters with K Type Thermocouple
    • Injection Molding Hot Runner Electric Coil Heaters with K Type Thermocouple
    • Injection Molding Hot Runner Electric Coil Heaters with K Type Thermocouple
  • Injection Molding Hot Runner Electric Coil Heaters with K Type Thermocouple

    Product Details:

    Place of Origin: China
    Brand Name: GME
    Certification: CE & ISO
    Model Number: -

    Payment & Shipping Terms:

    Minimum Order Quantity: 20 pieces
    Price: negotiateable
    Packaging Details: Exported Case Packing
    Delivery Time: 7-15 working days
    Payment Terms: Western Union, L/C, T/T, paypal
    Supply Ability: 20,000pcs per month
    Contact Now
    Detailed Product Description
    Moisture Proof: IP65 Product Name: Coil Heater
    Warranty: 1 Year Application: Injection Molding
    Material: Stainless Steel 316.304 Cross Section: 4.2 X 2.2 Mm, 3 X 3 Mm, 4 X 2 Mm. Etc.
    Insulated Material: Comressed MgO
    High Light:

    electric resistance heater

    ,

    Electric Coil Heaters

    Hot Runner Electric Coil Heater with K Type Thermocouple



    1.  Coil Heater Brief Introduction



    Wuhan Global Metal Hot Runner Electric Coil Heater with K Type Thermocouple use Germany heater wire,

    United States high purity magnesium oxide material, and strict process technology. There are various cross

    section and size for choice, such as square, round and flat, provide high performance electric heater for

    heating hot runner mold and other fields.



    Heater maximum temperature up to 650 ºC, the integration of temperature thermocouple for the precise

    temperature control, can provide K, J, E thermocouple, blasting and blackening surface treatment, also can

    provide bright surface.



    2.  Coil Heater Application



    This electric coil Heater is widely applied for hot runner system, plastic industry, packaging machinery, medical

    equipment, casting process,other electric heating industry, etc..



    3.  Coil Heater Characteristics



    a.  The inside insulated cover, same as the German GC.

    b.  Very good performance of the heating uniformity in the heating area.

    c.  High insulation (more than 500M ohm) and high pressure resistance (1000V above), can meet special

    requirement if customers need.

    d.  The moisture-proof can be IP65, suitable for working in bad condition.



    4.   Coil Heater Parameter.



     Standard Configuration

    •  Material : 304
    • Unheated length(L1): 45mm
    • Connector(cold side)(DxU):
    • Square cross-section: Ф7.6x26mm
    • Round flat cross-section: Φ7.5x29mm,Φ3.5x40mm
    • Power lines,grounding wire length(L): 1000mm
    • Jacket:Silicone fiberglass sheathing establishment,black and others
    • Thermocouple: J tpye
    • Compensating lead wire length(L): 1000mm
    • Surface treatment: sandblasting,black, polish



    Electric coil heater (H series)

    3.0x3.0
    3.3x3.3
    4.0x2.0
    4.2x2.2
    4.5x2.7

    Φ3.0

    Φ4.0

    Φ5.0

    3.5x3.5
    4.0x4.0

    5.0x5.0

    Voltage

    220V,230V,240V

    Power tolerance 115W-200W

    +/-10%

    Power tolerance  201W-2000W

    +5%-10%

    Out jacket length

    30mm~280mm

    Diameter of the inner sleeve/wrapped diameter

    10mm~42mm

    Unheating length

    45mm

    Max power density

    9W/cm²

    Heating Length tolerance

    +/-0.05mm

    Unheating length tolerance

    +/-2.5%

    Tolerance ID d ≤20mm

    Without inner sleeve:-0.15mm
    With inner sleeve:0.05mm~0.10mm

    Tolerance ID d 20mm~30mm

    Without inner sleeve:-0.20mm
    With inner sleeve:0.05mm~0.10mm

    Tolerance ID d ≥30mm

    Without inner sleeve:-0.25mm
    With inner sleeve:0.05mm~0.10mm

    Tolerance cross section

    +/-0.15mm

    +/-0.20mm

    Thermocouple

    K,J,E

    None

    Material

    304,321,316

    Maximum working temperature

    650℃

    Die electrical strength

    800V

    1000V
