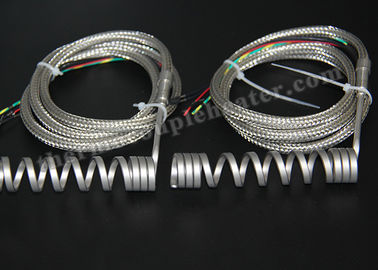

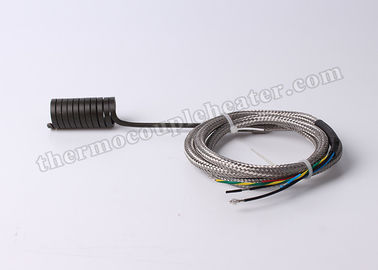

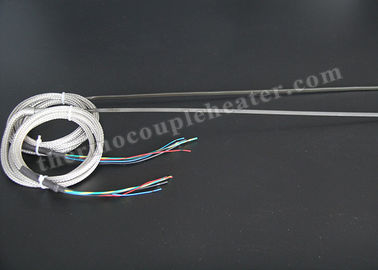

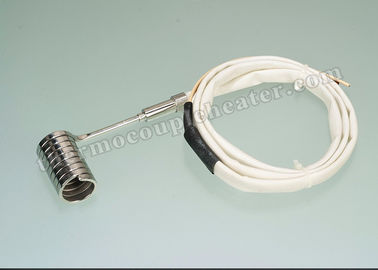

Industrial Hot Runner Coil Heaters with Thermocouple J , Micro Tubular Heater

Industrial Hot Runner Coil Heaters with Thermocouple J , Micro Tubular Heater

    • Industrial Hot Runner Coil Heaters with Thermocouple J , Micro Tubular Heater
    • Industrial Hot Runner Coil Heaters with Thermocouple J , Micro Tubular Heater
    • Industrial Hot Runner Coil Heaters with Thermocouple J , Micro Tubular Heater
    • Industrial Hot Runner Coil Heaters with Thermocouple J , Micro Tubular Heater
  • Industrial Hot Runner Coil Heaters with Thermocouple J , Micro Tubular Heater

    Product Details:

    Place of Origin: China
    Brand Name: GME
    Certification: CE & ISO
    Model Number: Coil Heater

    Payment & Shipping Terms:

    Minimum Order Quantity: 20 pcs
    Price: Negotiation
    Packaging Details: Exported Case Packing
    Delivery Time: 7-15 working days after received your payment
    Payment Terms: T/T, L/C, Western Union, D/P, Paypal
    Supply Ability: 15,000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: Industrial Heaters Other Name: Micro Tubular Heater
    Application: Injection Mould Insulated Material: Comressed MgO
    Watt Density: 6.5 W / CM 2 Max.Tempreture: 650℃
    Warranty: 1 Year Power(W): 200-3000W
    High Light:

    electric resistance heater

    ,

    Electric Coil Heaters

    Hot Runner Industrial Heaters with Thermocouple J




    1. Industrial Heaters Brief Introduction


    Wuhan Global Metal hot runner coil heater use Germany heater wire, United States high-purity magnesium oxide material, and strict process technology. There are various  cross section and size for choice, such as square, round and flat, provide high-performance electric heater for heating hot runner mold and other fields.


    Heater maximum temperature up to 650 ºC, the integration of temperature thermocouple for the precise temperature control, can provide K, J, E thermocouple, blasting and blackening surface treatment, also can provide bright surface.


    2.Industrial Heaters Characteristics



    • Standard sizes available with various cross section
    • Various Watt Density options available.
    • Robust Design with Choice of Terminal Exits
    • Designed for even heat profile
    • Precision fit on Hot Runner Nozzles & Manifolds
    • Highly Non-corrosive
    • Maximum heat transfer due to more contact area
    • Advanced Thermal Engineering
    • CE Certified
    • Available with built in Thermocouple


    3.Industrial Heaters Application



    • Hot Runner Nozzles & Bushings.
    • Hot runner Injection moulds
    • Injection & Blow Moulding Machine Nozzles.
    • PET prefrom & Thin wall container Moulds.
    • Hot Runner Manifolds.


    4.Industrial Heaters Parameter.



    • Standard Configuration
    • Material :304, 316
    • Unheated length(L1):45mm
    • Connector(cold side)(DxU):
    • Square cross-section:Ф7.6x26mm
    • Round flat cross-section:Φ7.5x29mm,Φ3.5x40mm
    • Power lines,grounding wire length(L):1000mm
    • Jacket:Silicone fiberglass sheathing establishment,black and others
    • Thermocouple:J tpye
    • Compensating lead wire length(L):1000mm
    • Surface treatment:sandblasting,black, polish

    Industrial Hot Runner Coil Heaters with Thermocouple J , Micro Tubular Heater

    Cross Section

    Total Length/Heating Length

    Thermcouple

    WATT/VOLT

    Lead Wire











    2,2x4.2

    300/250mm

    J

     195W x 230V

    1000mm

    2,2x4.2

    330/280mm

    J

    215W x 230V

    1000mm

    2,2x4.2

    385/335mm

    J

    240W x 230V

    1000mm

    2,2x4.2

    450/400mm

    J

    300W x 230V

    1000mm

    2,2x4.2

    510/460mm

    J

    350W x 230V

    1000mm

    2,2x4.2

    570/520mm

    J

    400W x 230V

    1000mm

    2,2x4.2

    650/600mm

    J

    460W x 230V

    1000mm

    2,2x4.2

    750/700mm

    J

    530W x 230V

    1000mm

    2,2x4.2

    850/800mm

    J

    610W x 230V

    1000mm

    2,2x4.2

    950/900mm

    J

    690W x 230V

    1000mm

    2,2x4.2

    1160/1110mm

    J

    850W x 230V

    1000mm

    2,2x4.2

    1360/1310mm

    J

    950W x 230V

    1000mm

    2,2x4.2

    1600/1550mm

    J

    1100W x 230V

    1000mm

    2,2x4.2

    1850/1800mm

    J

    1200W x 230V

    1000mm

    2,2x4.2

    2300/2250mm

    J

    1300W x 230V

    1000mm

    2,2x4.2

    2550/2500mm

    J

    1500W x 230V

    1000mm



    5. Packing Information



    Industrial Hot Runner Coil Heaters with Thermocouple J , Micro Tubular Heater



    6. Transportation



    Industrial Hot Runner Coil Heaters with Thermocouple J , Micro Tubular Heater
