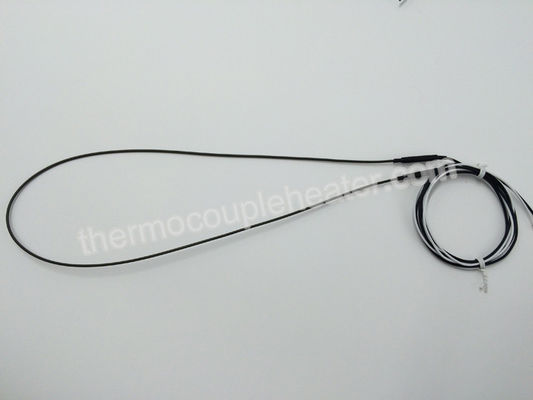

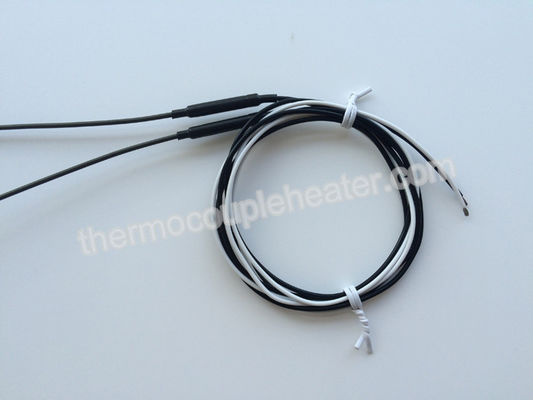

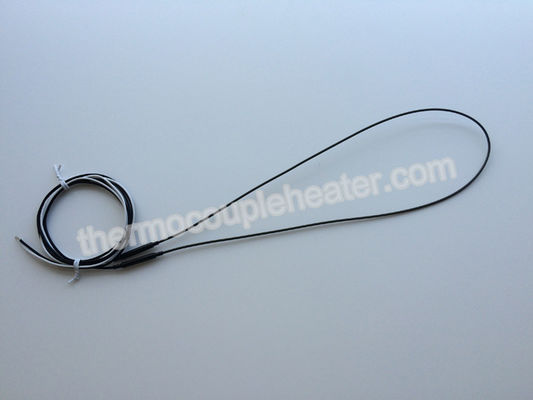

Diameter 1.8mm 230V 250w Straight Hot Runner Cable Heater 1 Year Warranty

Diameter 1.8mm 230V 250w Straight Hot Runner Cable Heater 1 Year Warranty

    • Diameter 1.8mm 230V 250w Straight Hot Runner Cable Heater 1 Year Warranty
    • Diameter 1.8mm 230V 250w Straight Hot Runner Cable Heater 1 Year Warranty
    • Diameter 1.8mm 230V 250w Straight Hot Runner Cable Heater 1 Year Warranty
  • Diameter 1.8mm 230V 250w Straight Hot Runner Cable Heater 1 Year Warranty

    Product Details:

    Place of Origin: China
    Brand Name: GME
    Certification: CE & ISO
    Model Number: -

    Payment & Shipping Terms:

    Minimum Order Quantity: 10 pieces
    Price: negotiation
    Packaging Details: Export Carton Box
    Delivery Time: 7-15 working days
    Payment Terms: L/C, D/P, T/T, Western Union, Paypal
    Supply Ability: 20,000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: Coil And Cable Heater Thermocouple: Type J, K
    Application: Injection Mold Hot Runner Material: Stainless Steel 304, 316
    Moisture Proof: IP 65 Insulated Material: Comressed MgO
    Warranty: 1 Year Lead Wire Length: 1000 Mm Or Customized
    High Light:

    electric resistance heater

    ,

    Electric Coil Heaters

    Diameter 1.8mm 230V 250w Straight Hot Runner Cable Heater



    1. Coil Heater Brief Introduction



    Hot runner heater’s production length in 200-3000mm is mainly used for hot runner mold or, as well as other precision heating system. Spring heating ring external using high quality Ni-Cr steel tube, the internal use of high purity magnesium oxide , high temperature resistance wire, and first-class manufacturing technology . The wire is after the annealed, with flexibility can be bent into an arc or circle heating. Its high working temperature, fast heating, uniform heating precision, long service life, can be automatically controlled area, high thermal conduction, while internal heating material damage, external can reuse.





    2. Coil Heater Characteristics



    • Standard sizes available with various cross section
    • Various Watt Density option available
    • Designed for even heat profile
    • Precision fit on Hot Runner Nozzles
    • Highly Non-corrosive
    • Choice of Terminal Exits
    • Advanced Thermal Engineering
    • Available with in built Thermocouple



    3. Coil Heater Parameter.

    Diameter 1.8mm 230V 250w Straight Hot Runner Cable Heater 1 Year Warranty

    •

    Spring coil heater (H series)

    3.0x3.0
    3.3x3.3
    4.0x2.0
    4.2x2.2
    4.5x2.7

    Φ3.0

    Φ4.0

    Φ5.0

    3.5x3.5
    4.0x4.0

    5.0x5.0

    Voltage

    220V,230V,240V

    Power tolerance 115W-200W

    +/-10%

    Power tolerance  201W-2000W

    +5%-10%

    Out jacket length

    30mm~280mm

    Diameter of the inner sleeve/wrapped diameter

    10mm~42mm

    Unheating length

    45mm

    Max power density

    9W/cm²

    Heating Length tolerance

    +/-0.05mm

    Unheating length tolerance

    +/-2.5%

    Tolerance ID d ≤20mm

    Without inner sleeve:-0.15mm
    With inner sleeve:0.05mm~0.10mm

    Tolerance ID d 20mm~30mm

    Without inner sleeve:-0.20mm
    With inner sleeve:0.05mm~0.10mm

    Tolerance ID d ≥30mm

    Without inner sleeve:-0.25mm
    With inner sleeve:0.05mm~0.10mm

    Tolerance cross section

    +/-0.15mm

    +/-0.20mm

    Thermocouple

    K,J,E

    None

    Material

    304,321,316

    Maximum working temperature

    650℃

    Die electrical strength

    800V

    1000V



    4. Spring Coil Heater Application



    This Heating Coil is widely applied for hot runner system, plastic industry, packaging machinery, medical

    equipment, casting process,other electric heating industry, etc..
