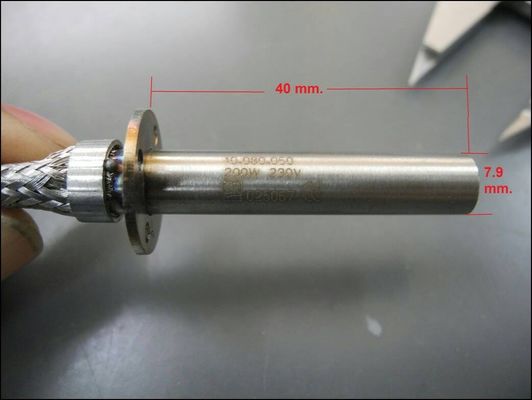

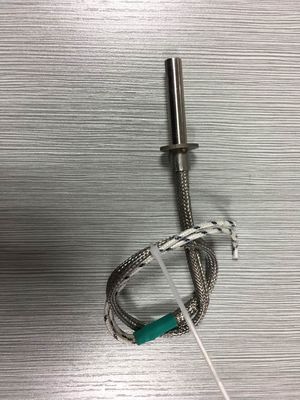

200W 230V Fiberglass Insulation Industrial Heating Elements Flange Cartridge Heater OD 7.9mm x 40mm

200W 230V Fiberglass Insulation Industrial Heating Elements Flange Cartridge Heater OD 7.9mm x 40mm

    • 200W 230V Fiberglass Insulation Industrial Heating Elements Flange Cartridge Heater OD 7.9mm x 40mm
    • 200W 230V Fiberglass Insulation Industrial Heating Elements Flange Cartridge Heater OD 7.9mm x 40mm
  • 200W 230V Fiberglass Insulation Industrial Heating Elements Flange Cartridge Heater OD 7.9mm x 40mm

    Product Details:

    Place of Origin: China
    Brand Name: GME
    Certification: ISO/CE/UL/CSA

    Payment & Shipping Terms:

    Minimum Order Quantity: 10 pcs
    Price: Negotiation
    Packaging Details: Standard Export Packing
    Delivery Time: 1-10 working days after received your payment
    Payment Terms: T/T, Western Union,Paypel
    Supply Ability: 3,000 pcs per month
    Contact Now
    Detailed Product Description
    Product Name: Cartridge Heater Application: Industrial Heating
    Maximum Temperature: 700°C Diameter: 7.9mm
    Tolerance: +/- 1.5% Heating Resistance: Cr20Ni80
    Voltage: 230V Wattage: 200W
    Connection Type: Connection Inside Connection Wire: Fiberglass + Metal Braided
    Water Proof: IP 65 Tube Material: Stainless Steel 304,321,316, Incoloy 800, Inconel 600





    200W 230V Fiberglass Insulation Industrial Heating Elements Flange Cartridge Heater OD 7.9mm x 40mm



    Resistance wire NiCr20/80
    Material stainless steel 304,321,316, Incoloy 800, Incoloy 840
    Maximum Temperature 800°C
    Standard cold length at lead exit 0.375"
    Standard cold length at disc end 0.25"
    Thermocouple  J
    Cable wire silicone wire, metal wire, fiberglass wire, etc
    Flange/thread M12, M14, M16, 1", 1 1/4", 1 1/2", 2",etc
    Diameter 5.9mm
    Voltage 220V
    Wattage 350W
    Water proof IP65



    1. Description



    Cartridge heater is cylindrical electrical heating elements. Protected with a stainless steel sheath, their watt density can reach 25 W/cm2 and their operating temperature can go up to 800°C (1472°F)

    Cartridge heater is one of the electric heating elements, which is widely used in industry mould heating. Compared with the same heating element of high thermal, cartridge heater can save 5% of electric materials, and heat efficiency can reach 90%.



    Mostly, cartridge heater is used for heating solids such as injection presses heating plates or various tools, it can also be used for heating up water of gases under certain conditions. Widely used for manufacturing plastic and rubber parts in the car industry or in the food processing industry, etc . Cartridge heaters are also commonly found in the chemical, electronics, medical equipment, packing and nuclear industries



    2. Applications



    1. Cartridge heater applied in mold heating has been very popular

    2. Heating system in plastic machinery.

    3. Pharmaceutical production

    4. Heat Treatment Lab

    5. Chemical industry and so on



    3. Competitive Advantage



    1. We manufacture high density cartridge heaters; Minimum diameter can reach 2.6mm.

    2. All lead wires are pure nickel

    3. Insulating material can be resistant to the high temperature of 400 degree.

    4. Our product can meet IP65 waterproof

    5. We produce cartridge heater with distributed wattage.



    4. Delivery



    200W 230V Fiberglass Insulation Industrial Heating Elements Flange Cartridge Heater OD 7.9mm x 40mm



    200W 230V Fiberglass Insulation Industrial Heating Elements Flange Cartridge Heater OD 7.9mm x 40mm
