ADC12 Rtd Connection Head , Electrical Heating Elements For Thermocouple Assembled

ADC12 Rtd Connection Head , Electrical Heating Elements For Thermocouple Assembled

    • ADC12 Rtd Connection Head , Electrical Heating Elements For Thermocouple Assembled
    • ADC12 Rtd Connection Head , Electrical Heating Elements For Thermocouple Assembled
  • ADC12 Rtd Connection Head , Electrical Heating Elements For Thermocouple Assembled

    Product Details:

    Place of Origin: China
    Brand Name: GME
    Model Number: KSE

    Payment & Shipping Terms:

    Minimum Order Quantity: 50 pcs
    Price: Negotiation
    Packaging Details: Standard Export Packing
    Delivery Time: 10 working days after received your payment
    Payment Terms: T/T, Western Union, Paypel
    Supply Ability: 50,000pcs per month
    Contact Now
    Detailed Product Description

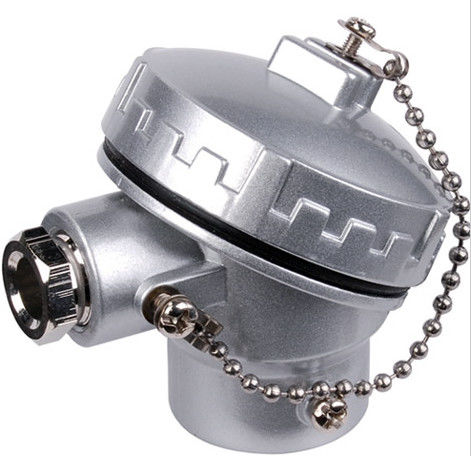

    Product Name: KSE Thermocouple Head Material: Aluminum ADC12
    Color: Silver Application: Industrial
    Painting: Lacquer Painting Polyester Powder Coating Feature: Standard Wire Entry And Probe Entry; Wide Range Of Specification, High Precision Painting





    Aluminium ADC12 Thermocouple Connection Head KSE For Thermocouple Assembled



    ADC12 Rtd Connection Head , Electrical Heating Elements For Thermocouple Assembled



    1. Specification



    Material: Wire entry Probe entry
    Aluminium ADC12 M20*1.5 M24x1.5
    Paniting: NPT1/2" M33x1
    lacquer painting NPT3/4" NPT1/2"
    polyester powder coating G1/2" NPT3/4"
    Colour: G3/4" G1/2"
    Silver   G3/4"
    RAL colour code





    2. Description:

    1. KSC Thermocouple head
    2. Type: KSC, all type available
    3. Material: Aluminum(ADC-12), Stainless steel
    4. Wire entry: M20*1.5, G1/2’’, G3/4’’, NPT1/2’’, NPT3/4’’
    5. Tube entry: M12*1, M16*1, M20*1, M22*1, M24*1, M27*1’’, M33*1, G1/2’’, G3/4’’,
    6. NPT1/2’’, NPT3/4’’
    7. Hole to hole distance: H=33±0.1mm, H=36±0.1mm, H=40±0.1mm
    8. Weight: 274g/pc
    9. Standard wire entry and probe entry;
    10. Wide range of specification;
    11. High precision painting
    12. Accessory: cover sealing and cable gland sealing in silicone free material
    13. Protection level: IP65 of IEC529 Enclosure protection class
    14. Ceramic terminal block: 2p-c, 3p-c, 4p-c, 6p-c
    15. Bakelite terminal block: 2p-b, 3p-b, 4p-b, 6p-b
    16. Place of Origin: China (Mainland)
    17. Eco-friendly: Yes
    18. MOQ: 50PCS
    19. Certificate: ISO,
    20. Making sample time: all type in stock
    21. Trade term: FOB, EXW, CIF, CFR
    22. Payment term: T/T, Western Union, Paypal

    3. Applications:

    Connecting with thermocouple and instrument machine



    4. Competitive Advantage:

    1. Beautiful outlook and good performance
    2. Suitable for all kinds of thermocouple or thermal resistance
    3. Small minimum order quantity
    4. All sizes available
    5. Make head with logo according to your demand
    6. Excellent corrosion resistance
    7. Moisture and dust-resistant
    8. High precision painting
