Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
|Place of Origin:||China|
|Minimum Order Quantity:||10pcs|
|Packaging Details:||Carton or wooden crate or as per your request|
|Delivery Time:||10 working days or above|
|Payment Terms:||L/C, T/T,PAYPAL|
|Supply Ability:||100000pcs per month|
|Product Name:||8mm Diameter Stainless Steel 304 Formed Tubular Heating Elements||Application:||Industrial Heating Elements|
|Sheath Material:||Incoloy 800, SS304, SS321, SS316||Voltage:||Customized|

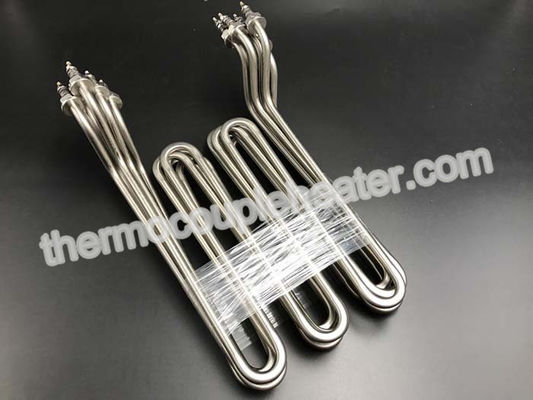

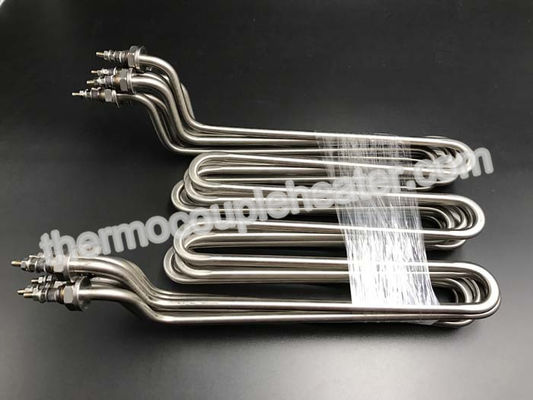

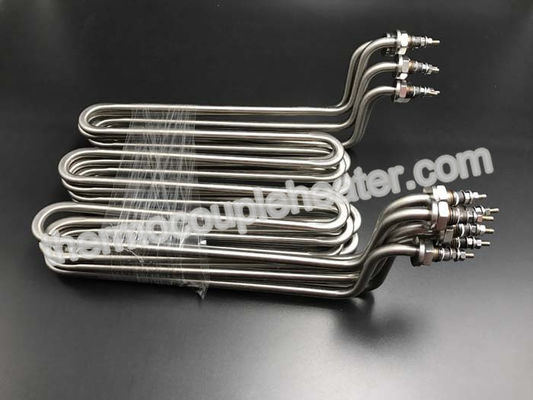

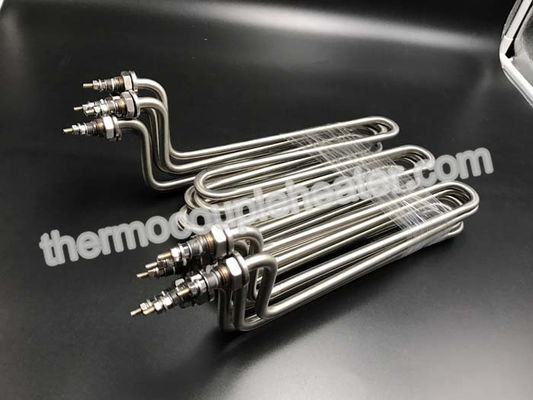

8mm Diameter Stainless Steel 304 Formed Tubular Heating Elements
Custom heating elements can be provided to any length, formed into any configuration and sheathed in a variety of different materials to suit your application. Likewise, the connection/termination possibilities are limited only by your imagination and the availability of components. Standard terminations include threaded stud, threaded bulk-head, screw lug, quick disconnect spade, ceramic-to-metal hermetic, molded rubber lead, conventional lead wire terminal assembly and more.
|Material||Material Max. Temp. °C||Application|
|Copper||150||Water, non-corrosive liquids|
|Stainless Steel 304||650||Water,Corrosive liquids, food processing|
|Stainless Steel 316||650||Corrosive liquids,|
|Stainless Steel 321||650||intergranular corrosion situation|
|Incoloy 800||800||Water ,Corrosive liquids, air, clam|
1. The tube sheath materials available in SUS304,SUS316,SUS321 INCOLOY840,Incoloy800
2. Tube Diameter : 6.6mm ~ 25mm.
3. The surface load of the heating tube is 9.8W/cm2.
1. Quick temperature raising rate
2. Longer transfer of heat radiation
3. No contamination from dust: No convection needed
4. High safety: No spark, no naked fire, highly insulated, the radiation of the harmony heater is not harmful to human bodies
5. Low cost with long service life and high efficiency
6. Easy installation
7. Fast heat exchange rate
8. Shorter process time
9. Lower power needed
Formed tubular heating elements is widely used in domestic or commercial water dispenser,coffee machines,water and oil heaters,showers water machine,dishwashers,etc.
