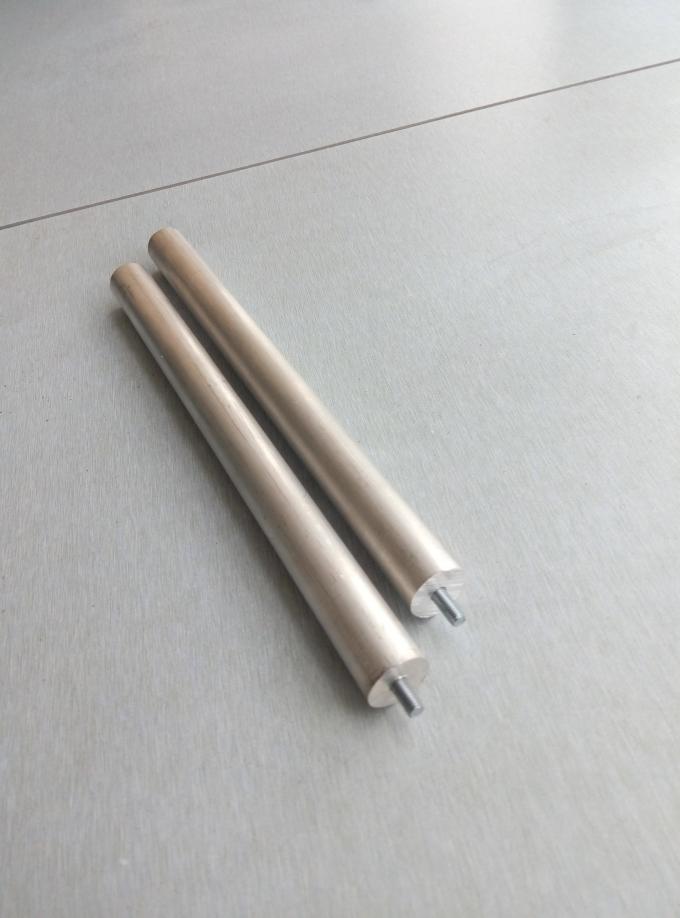

High Density Magnesium Sacrificial Anodes For Cathodic Protection , Pure Material

High Density Magnesium Sacrificial Anodes For Cathodic Protection , Pure Material

High Density Magnesium Sacrificial Anodes For Cathodic Protection , Pure Material

Product Details:

Place of Origin: Wenzhou, China
Brand Name: GME

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Packaging Details: Standard Export Packing
Delivery Time: 7-15 wroking days
Payment Terms: T/T, Western Union
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Density G/cm3: 1.74 Open Circuit Potential V: - 1.56
The Theory Of Electric Capacity (A.h/kg): 2200 Current Efficiency (%): 40
Capacitance A.h/kg: 880 Consumption Rate Kg/(A.a): 10.0

1. Short description

Part: Other Zinc anode cathodic protection: Marine ship use sacrificial zinc anode cathodic protection Powder Or Not: Not Powder
Material: Zinc Stardard: GB/T4950-2002 Colour: Silver
Zn (Min): 99.9% Shape: Trapezium,bar,square, etc Gloss: Bright
Size: Customed Function: perfect



2. The chemical composition of magnesium alloy sacrificial anode(%):

element standard Magnesium and manganese type
Al 5.3~6.7 ≤0.010
Zn 2.5~3.5
Mn 0.15~0.60 0.50~1.30
Fe ≤0.005 ≤0.03
Ni ≤0.003 ≤0.001
Cu ≤0.020 ≤0.020
Si ≤0.10
Mg balance balance




3. The electrochemical properties of magnesium alloy sacrificial anode:

electrochemical property standard Magnesium and manganese type remark

density

g/cm3

1.77 1.74
open circuit potential V - 1.48 - 1.56 relative SCE
The theory of electric capacity (A.h/kg) 2210 2200
current efficiency (%) ≥50 40

in the soil,

0.03 mA/cm2

capacitance

A.h/kg

1110 880
consumption rate kg/(A.a) ≤7.92 10.0




4. Product Description

Sacrificial anodes is a rotecting cathode unit for metal constructions in marine and harbor industries. Its properties are in compliance with the requirement of the GB/4950-2002. Sacrificial anodes are used in applications for protecting the pipelines and marine structures from corrosion in seawater and saline mud. Zinc anode also suitable for the protection of storage tanks, fishing boat, submarine, stern drive and offshore platform, etc.



5. Main Features

1. Lower losses and noise;
2. The oil tank type is various and good -looking;
3. High reliability, advanced level of performance, reasonable economical indicators;
4. It's newly designed insulation structure helps enhance.



6. Packaging & Delivery

Packaging Details: The packages of product will be suitable for the long distance ocean transportation
Delivery Detail: shipped in 7 days after payment
