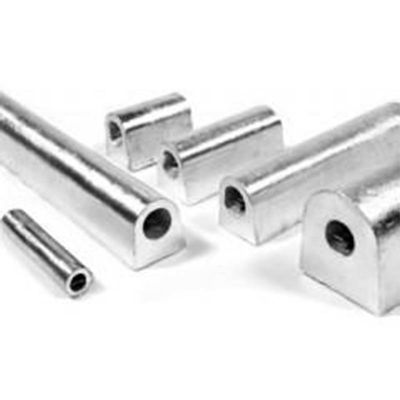

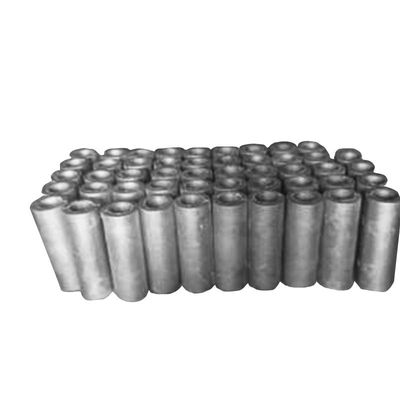

Marine ship Sacrificial Anodes cathodic protection , GB/T4950-2002 standard

Marine ship Sacrificial Anodes cathodic protection , GB/T4950-2002 standard

    • Marine ship Sacrificial Anodes cathodic protection , GB/T4950-2002 standard
    • Marine ship Sacrificial Anodes cathodic protection , GB/T4950-2002 standard
  • Marine ship Sacrificial Anodes cathodic protection , GB/T4950-2002 standard

    Product Details:

    Place of Origin: China
    Brand Name: GME
    Certification: ISO9001

    Payment & Shipping Terms:

    Minimum Order Quantity: 10pcs
    Packaging Details: Standard Export Packing
    Delivery Time: 7-15 wroking days
    Payment Terms: T/T, Western Union
    Supply Ability: 100000pcs/month
    Contact Now
    Detailed Product Description
    Zinc Anode Cathodic Protection: Marine Ship Use Sacrificial Zinc Anode Cathodic Protection Material: Zinc
    Stardard: GB/T4950-2002 Zn (Min): 99.9%
    Shape: Trapezium,bar,square, Etc Gloss: Bright

    1. Short description

    Part: Other Zinc anode cathodic protection: Marine ship use sacrificial zinc anode cathodic protection Powder Or Not: Not Powder
    Material: Zinc Stardard: GB/T4950-2002 Colour: Silver
    Zn (Min): 99.9% Shape: Trapezium,bar,square, etc Gloss: Bright
    Size: Customed Function: perfect

    2. Packaging & Delivery

    Packaging Details: The packages of product will be suitable for the long distance ocean transportation
    Delivery Detail: shipped in 7 days after payment



    3. Product Description

    Sacrificial anodes is a rotecting cathode unit for metal constructions in marine and harbor industries. Its properties are in compliance with the requirement of the GB/4950-2002. Sacrificial anodes are used in applications for protecting the pipelines and marine structures from corrosion in seawater and saline mud. Zinc anode also suitable for the protection of storage tanks, fishing boat, submarine, stern drive and offshore platform, etc.



    Parameters



    Chemical composition

    Alloy Element Al Cd Impurity Element Zn
    Fe Cu Pb Si
    Content 0.3~0.6 0.05~0.12 ≤0.005 ≤0.005 ≤0.006 ≤0.125



    Electrochemical properties

    Electrochemical properties open circuit potential(v) Working potential(v) Actual capacitance(Ah/kg) consumption rate(Ah/kg) Current efficiency % Solubility property
    In the seawater -1.09~-1.05 -1.08~-1.05 ≥780 ≤11023 ≥95 Corrosion product break off easily,and the surface dissolves in uniformity.
    In the soil ≤-1.05 ≤-1.03 ≥530 ≤17.25 ≥65



    Model

    Model Technical Specification Contact Resistance
    ZAC-C1
    ZAC-C2
    ZAC-C3
    ZAC-C4
    ZAC-C5
    ZAC-C6
    ZAC-C7
    ZAC-C8
    ZAC-C9
    Special
    Dimensions L*W*H(mm) ≤0.001Ω
    400*100*55 400*100*55
    300*150*50 500*100*40
    400*100*35 300*100*35
    250*100*35 180*70*35
    180*80*12
    Order according to the requirements of contract
    Weight(kg):15.4;15.0;13.6;12.8;9.0;6.5;5.4;2.8;1.1
