    Detailed Product Description
    Power Source: Electric Dimension: Customized
    Sheath Material: Aluminum Alloy Explosion Proof Grade: DIIBT1 ~ T6
    Supply: OEM Wire Entry: M20*1.5,M22*1.5,G1/2"
    Protection Level: IP 65 Usage: Industrial

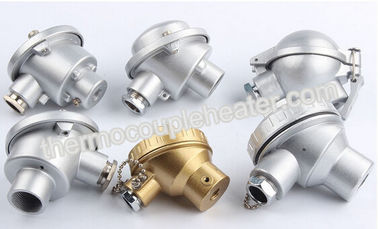

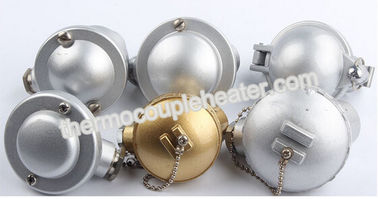

    Industrial usage Aluminum alloy thermocouple connection head in different type



    Description:



    Thermocouple head is uaually use with assembly thermocouple and RTD,with terminal block or transmitter in the side.



    1.cable entry size: M20*1.5 , NPT1/2'' , G1/2'' , pg16

    bottom hole size: M24*1.5 , M16X1 , NPT1/2'' , G1/2''



    2. Material : Aluminum,SUS304 or SUS 316 Excellent appearance,

    Explosion Proof standard : DIIBT1 ~ T6 Conforming to international

    standard IEC529 and IP65 approval. with various types of thermocouple and resistance bulbs.

    3P - B (H=36) can assemble with explosion proof thermocouple and resistance bulbs which have.



    3. Available in thermocouple types: K, T, J, N, Pt100 and others.Thick wall protective sheaths in stainless steel.







    Related Insulation material:
    1) Conductor insulated (PVC, Fiberglass, Teflon)
    2) Jacket / Overall insulated (PVC, Fiberglass, Teflon)
    3) Shield / Overbraid (Stainless steel or tinned copper)



    Specification:





    1) Cover diameter 83mm
    2) Ceramic terminal blocks:

         mounting holes distance: 33±0.1mm, 40±0.1mm

    3) wire entry: M20×1.5,NPT1/2", NPT3/4", G1/2 , G3/4 ", .

    4) probe entry: M24×1.5, M33 ×1 , NPT1/2 , NPT3/4", G1/2, G3/4 ",

    5) Packing condition: Plastic holder + internal carton(L460×W220×H90mm)

       + external carton(L470×W460×H300mm), 60pcs/ex-ctn



    type bakelite thermocouple head
    1) Material: Backlite
    2) Painting: lacquer painting polyester powder coating
    3) Color: Black RAL color code



    Order No. Description Terminal block Weight
    Poles Material
    KNE-0 Head Without 274g
    KNE+2P-C Head & terminal block 2 poles Ceramic 342g
    KNE+3P-C Head & terminal block 3 poles Ceramic 356g
    KNE+4P-C Head & terminal block 4 poles Ceramic 374g
    KNE+6P-C Head & terminal block 6 poles Cermic 394g
    KNE+2P-B Head & terminal block 2 poles Bakelite 330g
    KNE+3P-B Head & terminal block 3 poles Bakelite 344g
    KNE+4P-B Head & terminal block 4 poles Bakelite 358g
    KNE+6P-B Head & terminal block 6 poles Bakelite 374g
    N-2P-C Terminal block 2 poles Ceramic 68g
    N-3P-C Terminal block 3 poles Ceramic 82g
    N-4P-C Terminal block 4 poles Ceramic 100g
    N-6P-C Terminal block 6 poles Ceramic 120g
    N-2P-B Terminal block 2 poles Bakelite 56g
    N-3P-B Terminal block 3 poles Bakelite 70g
    N-4P-B Terminal block 4 poles Bakelite 84g
    N-6P-B Terminal block 6 poles Bakelite 100g

    Industrial Usage Aluminum Alloy Thermocouple Connection Head In Different Type



    Application:



    1) The main determining factors of what type thermocouple needs to be used in a application is temperature, environment, response time and accuracy.



    2) The junction of the thermocouple can be grounded, ungrounded or exposed.



    3) The thermocouple junction may be of many different styles, from tube type to a washer configuration.

    Product use: for gas cookers, gas oven, outdoor heaters, volumetric gas water heaters and remove protection device.
