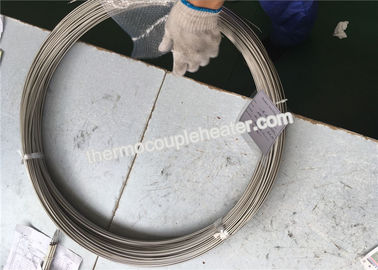

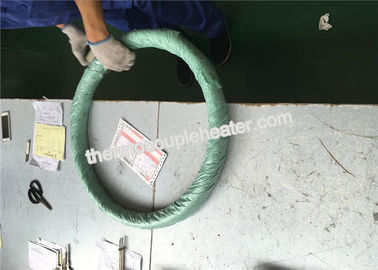

MI Cable Mineral Insulated Thermocouple Cable / Mineral Insulated Heating Cable

MI Cable Mineral Insulated Thermocouple Cable / Mineral Insulated Heating Cable

    • MI Cable Mineral Insulated Thermocouple Cable / Mineral Insulated Heating Cable
    • MI Cable Mineral Insulated Thermocouple Cable / Mineral Insulated Heating Cable
  • MI Cable Mineral Insulated Thermocouple Cable / Mineral Insulated Heating Cable

    Product Details:

    Place of Origin: China
    Certification: ISO9001
    Model Number: MI cable

    Payment & Shipping Terms:

    Minimum Order Quantity: 100Meters
    Price: Negotiable
    Packaging Details: Carton or wooden crate or as per your request
    Delivery Time: 7~10 working days
    Payment Terms: L/C, T/T,PAYPAL, Western Union, D/P
    Supply Ability: 300000 Meter/Meters per Month
    Contact Now
    Detailed Product Description
    Product Name: Type T 12.7mm Triplex Inconel Sheath Mineral Insulated Thermocouple Application: Industrial Temperature Sensor
    Diameter: 12.7mm Accuracy: Class I
    Calibration: Type T Core: Triplex
    Conductor: 6 Wires Sheath Material: Inconel 600
    High Light:

    mineral insulated metal sheathed cable

    ,

    mineral insulated heating cable

    MI cable / mineral insulated heating cable / thermocouple cable



    Product Description:

    It is known as inorganic substance insulation thermocouple cable internationally. It is the mould-pressed solid integrity of combined stainless steel protective pile

    (1) magnesium oxide insulation powder.

    (2) and thermocouple thread materials .

    (3)Its merits include press endurance, vibration resistance, bending capability, mini size, quick respond, etc. It acts as the key material of sheath



    Electric property:

    Resistance value allowance:±10%

    Dielectric property:heating cable pressure resist:1200V AC/1min

    Insulation resistance:end product test:100MΩ/500VDC

    Sheath continuity:all the heating cable submerged in the water 12 hours then test the insulation resistance,

    the value should be 50M/500VDC at least.

    MI Cable Mineral Insulated Thermocouple Cable / Mineral Insulated Heating Cable

    Sheath Diameter available

    From 0.25mm to 12.7mm

    Calibration Available

    J, K, T , E , N



    Sheath Material

    304 Stainless Steel

    316 Stainless Steel

    310 Stainless Steel

    Inconel 600

    Incoloy800

    Wire Number

    Simplex, Duplex, Triplex



























    Sheath Material

    Continuous Max. Temperature

    Melting Temperature

    Application Notes

    304

    900°C

    1400°C

    Good resistance to corrosion and oxidation

    316

    925°C

    1370°C

    Good corrosion resistance and creep strength at elevated temperatures (Mo). Resists tendency to pit in phosphoric and aetic acids. Withstands sulphuric acid compounds.

    310S

    1100°C

    1400°C

    High temperature strength and scale resistance. Good resistance to carburising and reducing envirnoments. Withstands sulphurous gas at elevated temperatures (high Ni-Cr)

    INC600

    1150°C

    1400°C

    High corrision resistance at elevated temperatures. High hot strength. Used in sulphur-free environments. Resists oxidising and reducing atmospheres.



    Feature:

    1. Stainless Steel Sheath 304, 310, 316, 321SS
    2. Inconel 600 Sheathing
    3. J, K, N, T, E Wire Calibration Available
    4. M.I. Cable with MgO
    5. High Purity and Standard MgO
    6. Inch and Metric Diameters
    7. .010” upto 0.50” Diameter
    8. Special Limits SLE or Standard Grade
    9. Can Be Welded, Bent or Formed
    10. Withstands High Temperatures and Pressures



    Applications:



    • Food processing equipment
    • Plastic injection molding machinery

    • Engine and turbine exhaust gas
    • Semiconductor processing
    • Heat treating and metals processing
    • Medical equipment
    • Aerospace industries
    • Packaging equipment
    • Test stands
