hot runner coil heaters spring heaters 2.2x.4.2mm cross section specification

hot runner coil heaters spring heaters 2.2x.4.2mm cross section specification

hot runner coil heaters spring heaters 2.2x.4.2mm cross section specification

Product Details:

Place of Origin: China
Brand Name: GME
Certification: CE & ISO
Model Number: -

Payment & Shipping Terms:

Minimum Order Quantity: 20 pieces
Price: negotiateable
Packaging Details: Exported Case Packing
Delivery Time: 7-15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20,000pcs per month
Detailed Product Description
Voltage: 220V Power: 1000w
Usage: Hot Runner Coil Heater Material: Stainless Steel 304
Cross Section: 4.2 X 2.2 Mm, 3 X 3 Mm, 4 X 2 Mm. Etc Coil Heater Temperature: 900 Degree C

hot runner coil heaters spring heaters 2.2x.4.2mm cross section specification

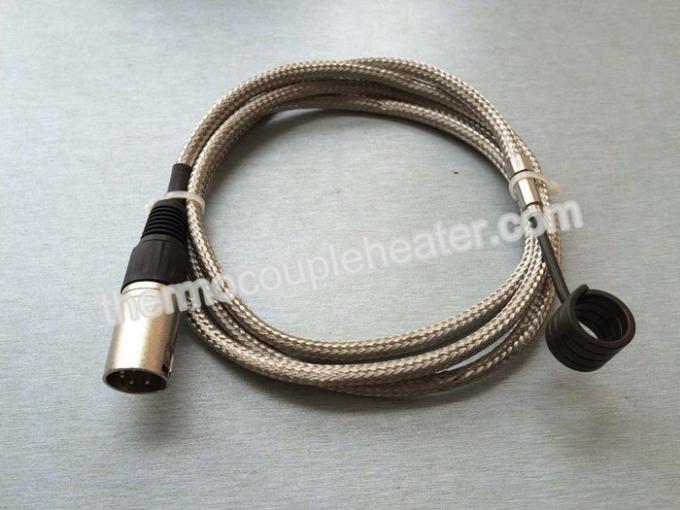

Description of Coil Heater:



1) Spring coil heater is made of nickel chrome resistance wire placed inside chrome nickel steel tube that is filled with MgO powder.

2) Spring coil heater is also known as high performance tubular heaters or cable heaters. 3) Spring heater can be produced with or without built in thermocouples.

4) Spring coil heater is widely used in heating engineering, mold, plastic industry, including the transfer machinery, medical equipment, casting process, welding, heat treatment process and many other industries and fields



Coil Heater Technical parameter:



1) Customized voltage and power

2) Various sizes of cross section, including 1.8, 2*4, 2.2*4.2, 3.0, 3*3, 3.5*3.5, 4*6 and other specifications.
3) High watt density 25w/sq.cm, low watt density 5w/sq.cm.

4) Temperature: 650 degree
5) Materials: stainless steel
6) Thermocouple type J/K/E can be attached.

7) High temperature Teflon lead wire



specifications



Model Dimension(MM) Voltage(V) Power(W) Key technical indexes
LΦ45x50 Φ45x50 220 1000

1.Use condition: environment temperature -20~+60°C,

2.Leakage current <0.5MA

3.Insulation resistance ≥5M

4.Ground resistance <0.1

5.Voltage resistance: no electric breakdown for 1 minute under 1500V

6.Temperature endurance: 100-1200°C



Φ22X160 Φ22X160 230 1200
Φ40X40 Φ40X40 220 400
Φ30X50 Φ30X50 220 400
Note: Other models are available according to your specifications. Please refer to the Order Guide
