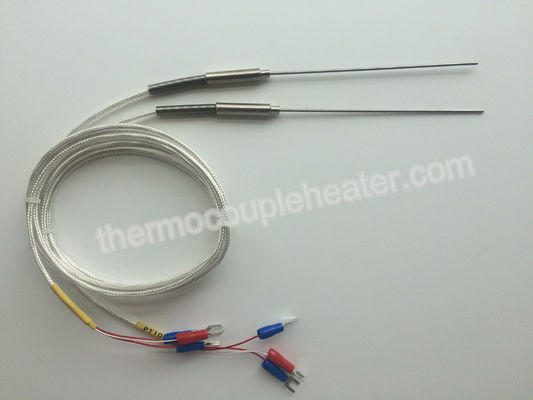

1mm Diameter Probe 3 wire Thermocouple RTD pt100 temperature sensor ss304 Class 1 Accuracy

1mm Diameter Probe 3 wire Thermocouple RTD pt100 temperature sensor ss304 Class 1 Accuracy

1mm Diameter Probe 3 wire Thermocouple RTD pt100 temperature sensor ss304 Class 1 Accuracy

Product Details:

Place of Origin: China
Brand Name: GME
Certification: ISO9001
Model Number: GME-1mm pt-100

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Packaging Details: Standard Export Packing
Delivery Time: 7-15days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Diameter Of Probe: 1mm Material: Stainless Steel 304
Accuracy: Class1 Usage: Industrial
Type: PT-100 TYPEWire Material: Fiberglass Shielding Wire
Probe Length: 100mm

1mm diameter Probe 3 wire RTD pt100 temperature sensor ss304 Material Class1 Accuracy





Specification:



type pt100
temperature range 0-400
probe diameter 1mm
probe length 100mm
probe material SS304
wire length 1000mm
wire material fiberglass shielding wire

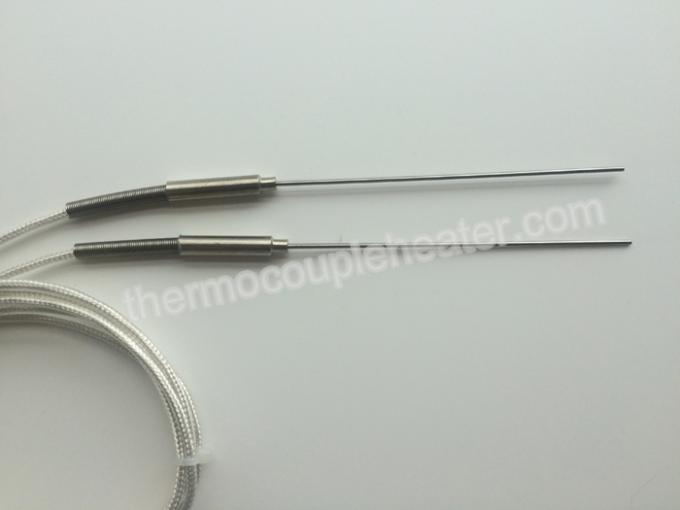

Pictures


1mm Diameter Probe 3 wire Thermocouple RTD pt100 temperature sensor ss304 Class 1 Accuracy

1mm Diameter Probe 3 wire Thermocouple RTD pt100 temperature sensor ss304 Class 1 Accuracy





temperature sensor PT100



Code Mark Use temperature

Protection tube

materials

Class of accuracy and allowable error



GME



PT100



-200~500°C

304

321

316L

Grade A:

+/- (0.15+0.002%|t|)

Grade B:

+/- (0.3+0.005%|t|)





Pt thermal

Graduation mark ±(°C)Et value on various temperature spots R100/R0
-200 -100 0 100 200 300 400 500 600 650
Pt RTD Grada Pt10 0 0.55 0.35 0.15 0.35 0.55 0.75 0.95 1.15 1.35 1.45 1.3850±0.0005
A Pt10
Grada Pt100 1.3 0.8 0.3 0.8 1.3 1.8 2.3 2.8 3.3 3.6 1.3850±0.0012
B Pt10
Cu RTD   Cu50 1.5 0.9 0.3 0.9 1.5 2.1 ———— ———— —— ———— 1.428±0.002
Cu100






Sensor Type RTD Pt100 element
PPCK: RTD Pt1000 element
Probe Diameter 1mm-6mm
Detector Elements Simplex (1 channel)
Duplex (2 channels)
Probe Length (mm) As required to suit your application
Wiring Configuration 2-wire
3-wire
4-wire (Simplex only)
Grade of Element B (Accuracy: ±0.30°C at 0°C, ±0.80°C at 100°C)
A (Accuracy: ±0.15°C at 0°C, ±0.35°C at 100°C)
Cable Length (mm) As required to suit your application
Extension Cable PVC Insulated (+105°C), 2, 3, 4-wire
PFA Insulated (+250°C), 2, 3, 4, 6-wire
Fibreglass/SSB (+400°C), 2, 3, 4-wire
Optional RTD Connector Miniature RTD Plug
Miniature 3-Pin RTD Plug
Standard RTD Plug
Standard 3-Pin RTD Plug
Optional 316 Stainless Steel Compression Fittings To suit probe Ø: 1mm, 1.5mm, 2mm, 3.0mm, 4.0mm, 4.5mm, 6.0mm





Application:



For food temperature measurement;

Also for liquid and gel temperature measurement;

Entire probe covered with metal coating protection;
