Industrial Thermocouple Junction Box for Temperture Sensor Measurement

Industrial Thermocouple Junction Box for Temperture Sensor Measurement

Industrial Thermocouple Junction Box for Temperture Sensor Measurement

Product Details:

Place of Origin: China
Brand Name: GME
Certification: ISO/CE/UL

Payment & Shipping Terms:

Minimum Order Quantity: 100pcs
Price: USD 2.5-10 FOB Shanghai/PC
Packaging Details: Export Carton Package or as Customer Request
Delivery Time: 7-15 Working Days
Payment Terms: T/T, Western Union, L/C,PayPal
Supply Ability: 10000pcs
Contact Now
Detailed Product Description
Product Name: Thermocouple Connection Box Application: Industrial
Wire Entry: M20*1.5 Probe Entry: M22x1.5
Color: Silver RAL Color Code Feature: High Precision Painting

Thermocouple Connection Box for Temperture Sensor Measurement


1. Specifications


Material:

Wire entry

Probe entry

Aluminium ADC12

M20*1.5

M22x1.5

Paniting:





lacquer painting





polyester powder coating





Colour:





Silver





RAL colour code

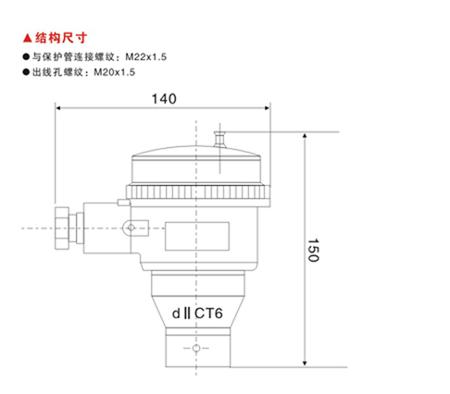

2. Drawing picture

Industrial Thermocouple Junction Box for Temperture Sensor Measurement

3. Description

1. Thermocouple connection box
2.Type: all type available
3. Material: Aluminum(ADC-12), Stainless steel
4. Wire entry: M20*1.5,
5. Tube entry: M22*1.5,
6. NPT1/2’’, NPT3/4’’
7. Hole to hole distance: H=33±0.1mm, H=36±0.1mm, H=40±0.1mm
8. Weight: 274g/pc
9. Standard wire entry and probe entry;
10. Wide range of specification;
11. High precision painting
12. Accessory: cover sealing and cable gland sealing in silicone free material
13. Protection level: IP65 of IEC529 Enclosure protection class
14. Ceramic terminal block: 2p-c, 3p-c, 4p-c, 6p-c
15. Bakelite terminal block: 2p-b, 3p-b, 4p-b, 6p-b
16. Place of Origin: China (Mainland)
17. Eco-friendly: Yes
18. MOQ: 50PCS
19. Certificate: ISO,
20. Making sample time: all type in stock
21. Trade term: FOB, EXW, CIF, CFR
22.  Payment term: T/T, Western Union, Paypal

4. Applications

Connecting with thermocouple and instrument machine

5. Competitive Advantage

1. Beautiful outlook and good performance
2. Suitable for all kinds of thermocouple or thermal resistance
3. Small minimum order quantity
4. All sizes available
5. Make head with logo according to your demand
6. Excellent corrosion resistance
7. Moisture and dust-resistant
8. High precision painting
