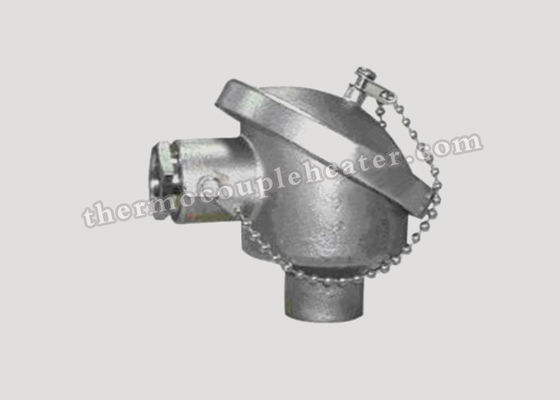

Planting Silver 304 Stainless Steel KC-SS Thermocouple Connection Box

Planting Silver 304 Stainless Steel KC-SS Thermocouple Connection Box

    • Planting Silver 304 Stainless Steel KC-SS Thermocouple Connection Box
    • Planting Silver 304 Stainless Steel KC-SS Thermocouple Connection Box
  • Planting Silver 304 Stainless Steel KC-SS Thermocouple Connection Box

    Product Details:

    Place of Origin: China
    Brand Name: GME
    Certification: ISO/CE/UL

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pcs
    Price: USD 2.5-10 FOB Shanghai/PC
    Packaging Details: Export Carton Package or as Customer Request
    Delivery Time: 7-15 Working Days
    Payment Terms: T/T, Western Union, L/C,PayPal
    Supply Ability: 10000pcs
    Contact Now
    Detailed Product Description
    Product Name: KC-SS Thermocouple Connection Head Material: 304 Stainless Steel
    Probe Entry: M12*1, M16*1, M20*1 Founction: Waterproof
    Terminal Block:: 2P, 3P, 4P, 6P ,8P

    304 Stainless Steel KC-SS Thermocouple Connection Head of Planting Silver



    1. Mullti explosion-proof type, good explosion-proof performance

    2. Wide measuring range

    3. High mechanical strength and good pressure-resistant performance

    4. Certain modification can be done according to your designs

    5. Material: SS304, Approved IEC529 IP65

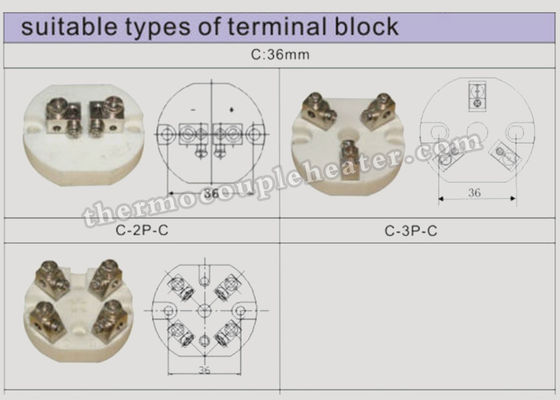

    6. Terminal block: 2P, 3P, 4P, 6P ,8P

    7. Terminal block material: Bakelite or ceramic.



    Specifications:



    1. KC-SS Thermocouple head

    2. Type: KC-SS, all type available

    3. Material: Aluminum(ADC-12), Stainless steel

    4. Wire entry: G3/8’’

    5. Probe entry: M12*1, M16*1, M20*1

    6. Standard wire entry and probe entry;

    7. Wide range of specification;

    8. High precision painting

    9.  Accessory: cover sealing and cable gland sealing in silicone free material

    10. Protection level: IP65 of IEC529 Enclosure protection class

    11.  Place of Origin: China (Mainland)

    12.  Eco-friendly: Yes



    Technical Drawing



    Planting Silver 304 Stainless Steel KC-SS Thermocouple Connection Box



    Description:



    As an optional to the standard connection head,  the thermometer may be equipped with the digital indicator. The connection head used in this case , transmitters is necessary, which is mounted to the measuring insert.



    The scale range of the indicator is configurated identical to the measuring range of the transmitter. Intrinsically safe versions, explosion protection type are also available.



    This heavy duty thermocouple is specifically designed for temperature sensing in arduous industrial environments such as blast or carburizing furnaces, kilns, large ovens and galvanizing baths where their robust construction ensures a prolonged sensor life.

    Available in thermocouple types: K, T, J, N, E, R, S, B, C, and Pt100.

    Thick wall protective sheaths in stainless steel



    Application:



    Machinery, plant and tank construction, Energy and power plant technology  Chemical industry, Food and beverage industry, Sanitary, heating and air-conditioning technology Special Feature.



    Application ranges from 0 °C to +1200 °C,  Suitable for all standard thermal designs Measuring insert exchangeable Intrinsically safe, versions Description Thermocouples in this series can be combined with a large number of designs.



    Competitive Advantage:



    1. Beautiful outlook and good performance

    2. Suitable for all kinds of thermocouple or thermal resistance

    3. Small minimum order quantity

    4. All sizes available

    5. Make head with logo according to your demand

    6. Excellent corrosion resistance

    7. Moisture and dust-resistant

    8. High precision painting

    9. Assembling easily.

    10. Available for Spring-loaded blocks.

    11. Standard size is suitable for various types of blocks, an international design.

    12. Can assemble with thermocouple and
