Digital Thermometer Components KB Connection Thermocouple Head for Outdoor

Digital Thermometer Components KB Connection Thermocouple Head for Outdoor

    • Digital Thermometer Components KB Connection Thermocouple Head for Outdoor
    • Digital Thermometer Components KB Connection Thermocouple Head for Outdoor
  • Digital Thermometer Components KB Connection Thermocouple Head for Outdoor

    Product Details:

    Place of Origin: China
    Brand Name: GME
    Certification: ISO/CE/UL

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pcs
    Price: USD 2.5-10 FOB Shanghai/PC
    Packaging Details: Export Carton Package or as Customer Request
    Delivery Time: 7-15 Working Days
    Payment Terms: T/T, Western Union, L/C,PayPal
    Supply Ability: 10000pcs
    Contact Now
    Detailed Product Description

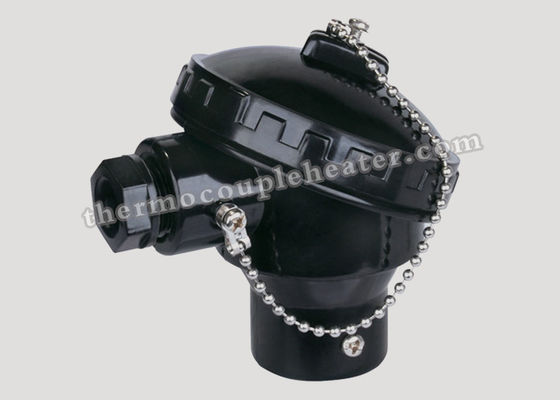

    Product Name: KB Thermocouple Connection Head Application: Outdoor Use
    Probe Entry: M12*1, G1/4’’ Material: Aluminum(ADC-12)
    Founction: Waterproof Terminal Block:: 2P, 3P, 4P, 6P ,8P

    Digital Thermometer Components KB Thermocouple Connection Head Ideal for Outdoor Use



    Specifications:



    1. KB Thermocouple head

    2. Type: KB, all type available

    3. Material: Aluminum Alloy

    4. Approved IEC529 IP65

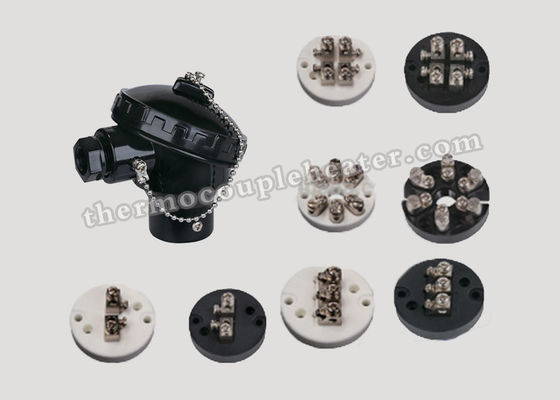

    5. Terminal block: 2P, 3P, 4P, 6P ,8P

    6. Terminal block material: bakelite or ceramic .

    7. Material: Aluminum(ADC-12), Stainless steel

    8. Wire entry: G1/2’’

    9. Probe entry: G1/2’’

    10. Standard wire entry and probe entry;

    11. Wide range of specification;

    12. High precision painting

    13. Accessory: cover sealing and cable gland sealing in silicone free material

    14. Protection level: IP65 of IEC529 Enclosure protection class

    15. Place of Origin: China (Mainland)



    Description:



    A universal thermocouple head provided with an internal recess having one or more tiers, the said tiers having shaped peripheral configurations to receive and retain terminal blocks manufactured by various producers.This invention relates to the general field of high temperature measurements and is more particularly directed to a universally adaptable thermocouple head having general interchangeable application in the art.



    Thermocouples as now in use commonly employ a bimetallic sensing wire enclosed within a protective tube. A specially designed thermocouple head t receives the protective tube and is provided with a second threaded opening to receive the lead wires and the wire enclosing conduit. The head houses a terminal connecting block there within and a large threaded cover in the head fitting permits easy access to the terminal block.



    As may be readily appreciated, there are many large manufacturers of thermocouples in the country and all produce to satisfactory standards. With a number of equally good brands available, after a period of operation, most plants employing thermocouples will be equipped with many similar items of different manufacture. When the thermocouple components begin to wear, operating personnel then find that the various parts from different manufacturers are not interchangeable. This problem results either in causing the maintaining of a large inventory of parts of all manufacturers represented or in replacing some of the thermocouples so that all in use will be the same make. Either solution will, of course, prove to be quite costly.



    Digital Thermometer Components KB Connection Thermocouple Head for Outdoor



    Technical Drawing



    Digital Thermometer Components KB Connection Thermocouple Head for Outdoor

    Applications:



    1. Mullti explosion-proof type, good exposion-proof performance

    2. Wide measuring range

    3. High mechanical strength and good pressure-resistant performance

    4. Certain modification can be done according to your designs

    5. Excellent appearance with fine finish.

    6. Assembling easily.

    7. Available for Spring-loaded blocks.

    8. Standard size is suitable for various types of blocks, an international design.

    9. Can assemble with thermocouple and RTD



    Competitive Advantage:



    1. Beautiful outlook and good performance

    2. Suitable for all kinds of thermocouple or thermal resistance

    3. Small minimum order quantity

    4. All sizes available

    5. Make head with logo according to your demand

    6. Excellent corrosion resistance

    7. Moisture and dust-resistant

    8.  High precision painting
