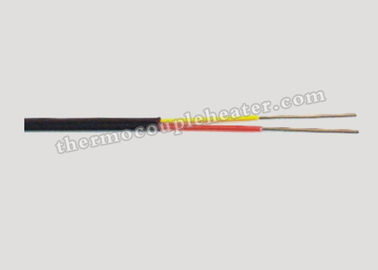

Teflon Insulated Conductor Compensating Cable For K Type Thermocouple

Teflon Insulated Conductor Compensating Cable For K Type Thermocouple

    • Teflon Insulated Conductor Compensating Cable For K Type Thermocouple
    • Teflon Insulated Conductor Compensating Cable For K Type Thermocouple
    • Teflon Insulated Conductor Compensating Cable For K Type Thermocouple
  • Teflon Insulated Conductor Compensating Cable For K Type Thermocouple

    Product Details:

    Place of Origin: China
    Brand Name: GME
    Certification: CE/UL/CSA/ISO
    Model Number: TF+TF

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000Meter
    Price: USD 0.5-3.0 FOB Shanghai /Meter
    Packaging Details: Export Carton Package
    Delivery Time: 7-15 Working Days
    Payment Terms: T/T, L/C, Western Union, PayPal
    Supply Ability: 100000Meter/Month
    Contact Now
    Detailed Product Description
    Product Name: Extension Cable Max Temperature: 400℃
    Wire Size: As Customer’s Request Conductor Insulator Material: Teflon
    Jacket: Teflon Structure: TF+TF

    Thermocouple Compensating Cable with Teflon Insulated Conductor and Teflon Jacket (TF+TF)



    Specifications:



    1. Calibration: K, J, T, E, N, S, R

    2. Conductor insulation material: Teflon

    3. Inner shield material: SSB

    4. Jacket insulation material: Teflon

    5. Outer shield material: SSB

    6. Max temperature :200℃

    7. Constructure : TF+TF



    Type



    Contractors

    Color Code

    K

    Wire size

    Section (mm’)

    AWG





    J

    2X1/0.2



    32

    FB+FB

    ANSI

    E

    2X1/0.5



    24

    FB+FB

    DIN

    T

    2X1/0.65



    22

    FB+FB

    IEC

    N

    2X1/0.8



    20

    FB+FB

    JIS

    S

    2X7/0.2



    24

    FB+FB

    BS



    2X7/0.3



    20

    FB+FB

    NFC







    20

    FB+FB





    Description:



    Thermocouple and RTD extension cables are available in a variety of connector and jacket configurations to make connections between process and instrumentation easy.

    Practical for use in connecting between a thermocouple sensor and readout, extension wire comes in as large a variety as our thermocouple wire.



    Teflon is the best insulation material among organic materials in respect of heat resistance, chemical Resistance, electrical insulation, high frequency resistance, weather resistance, etc. high mechanical strength and, especially, high pressure resistance over wider range of operating temperatures. Recommended Temperature Range: -25˜+200˚C. *Teflon is the registered trade mark by DuPont, U.S.A.

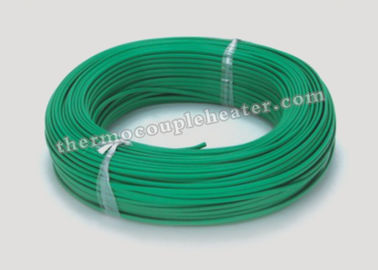

    Teflon Insulated Conductor Compensating Cable For K Type Thermocouple



    Applications:

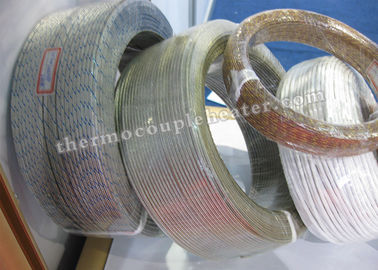

    Thermocouple extension cable consists of conductors of the same nature as the elements of the thermocouple and which extends this to the thermocouples’ reference junction. Commonly there are four types of insulation material for extension cable: fiberglass, Teflon, PVC and silicone. Stainless steel braided and tinned brass braided are also commonly used in the cable.

    Customers from different areas possibly require different color style for the cable, all color standard are available upon request.



    Competitive Advantage:



    1. Our measurement accuracy of thermocouple cable can reach the level of grade 1
    2. 10,000 meters without joints
    3. The color-coded can meet the requirements of (ASNI, DIN, JAP, IEC ... etc)
