304 Stainless Steel Liquid Tube Cooled Aluminum Cast In Heaters , ISO9001

304 Stainless Steel Liquid Tube Cooled Aluminum Cast In Heaters , ISO9001

    • 304 Stainless Steel Liquid Tube Cooled Aluminum Cast In Heaters , ISO9001
    • 304 Stainless Steel Liquid Tube Cooled Aluminum Cast In Heaters , ISO9001
    • 304 Stainless Steel Liquid Tube Cooled Aluminum Cast In Heaters , ISO9001
  • 304 Stainless Steel Liquid Tube Cooled Aluminum Cast In Heaters , ISO9001

    Product Details:

    Place of Origin: China
    Certification: ISO9001/ CE

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: Negotiable
    Packaging Details: Carton or wooden crate or as per your request
    Delivery Time: 10 working days or above
    Payment Terms: L/C, T/T,PAYPAL
    Supply Ability: 100000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: 304 Stainless Steel Liquid Tube Cooled Aluminum Cast In Heater Application: Industrial Heating
    Voltage: 220V, Or Special Voltage To Order. Wattage: 1000W ,or Special To Order
    Alloy Material Casted: Aluminum Heating Wire: Nickel Chrome Wire

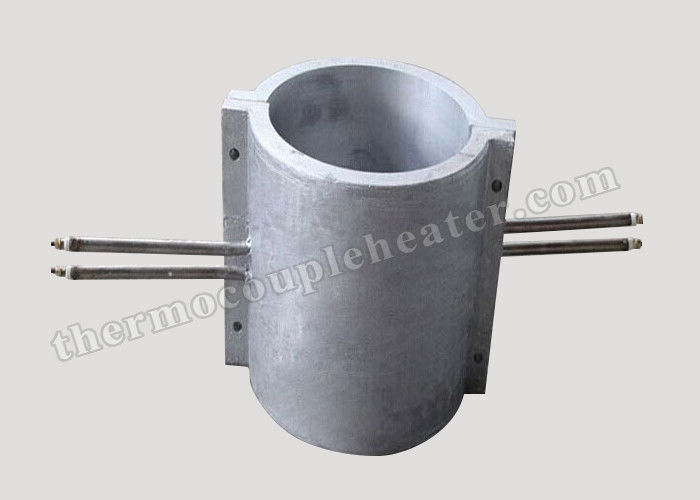

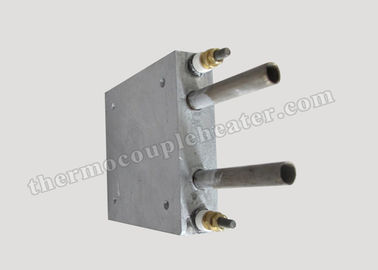

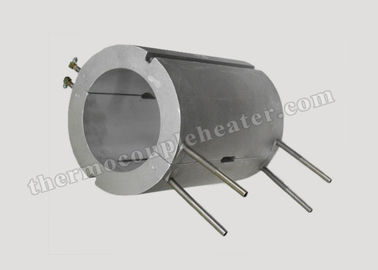

    304 Stainless Steel Liquid Tube Cooled Aluminum Cast In Heater



    Product Description



    Cast in heaters is the component for plastics extrusion machinery. Such as extruder barrel and die heaters. Cast (cast-in) Heaters can heat them, Extruders, Compression Molding Platens, Heat Sealers, Vacuum Forming Platens.  The heat cool capabilities of Cast in Heaters can offer high accuracy temperature control. Either cooling fins or seamless stainless steel cooling tubes, it is the key.



    Specification





    Industrial Heater

    Cast in heater

    1

    High operating temperatures

    2

    Liquid cooling or air-cooling fins

    3

    Any size or shape customized

    Power Wattage

    Aluminum 35 watts/sq

    Bronze 50 watts/sq

    Max Temperature

    Aluminum 371 degree celsius

    Bronze/copper 700 degree celsius

    Material

    Aluminum

    Bronze or Copper





    Features


    1. High operating temperatures
    2. Aluminum and bronze available
    3. Multiple shapes or sizes can be made
    4. Fins, tubes, and mounting pins can be cast into the heater
    5. Secondary machining for precision control
    6. Because tubular heating elements are shielded , cast aluminum or bronze thus providing a longer life and trouble-free.
    7. Precise and accurate control of temperature due to heat cool action
    8. High watt densities available



    Application



    1

    Injection and Blow Moulding

    2

    Extruders

    3

    Moulds & Dies

    4

    Packaging machinery

    5

    Medical equipments

    6

    Thermoforming equipment
