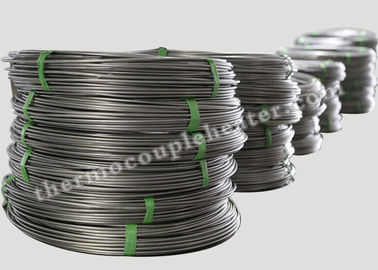

Sheath Mineral Insulated Thermocouple Cable Type J 1.6mm Stainless Steel 316

Sheath Mineral Insulated Thermocouple Cable Type J 1.6mm Stainless Steel 316

    • Sheath Mineral Insulated Thermocouple Cable Type J 1.6mm Stainless Steel 316
    • Sheath Mineral Insulated Thermocouple Cable Type J 1.6mm Stainless Steel 316
    • Sheath Mineral Insulated Thermocouple Cable Type J 1.6mm Stainless Steel 316
  • Sheath Mineral Insulated Thermocouple Cable Type J 1.6mm Stainless Steel 316

    Product Details:

    Place of Origin: China
    Certification: ISO9001

    Payment & Shipping Terms:

    Minimum Order Quantity: 100Meters
    Price: Negotiable
    Packaging Details: Carton or wooden crate or as per your request
    Delivery Time: 3~20 working days
    Payment Terms: L/C, T/T,PAYPAL
    Supply Ability: 300000 Meter/Meters per Month
    Detailed Product Description
    Product Name: Type J 1.6mm Stainless Steel 316 Sheath Mineral Insulated Thermocouple Application: Industrial Temperature Sensor
    Diameter: 1.6mm Accuracy: Class I
    Calibration: Type J Core: Simplex
    Conductor: 2 Wires Sheath Material: SUS316

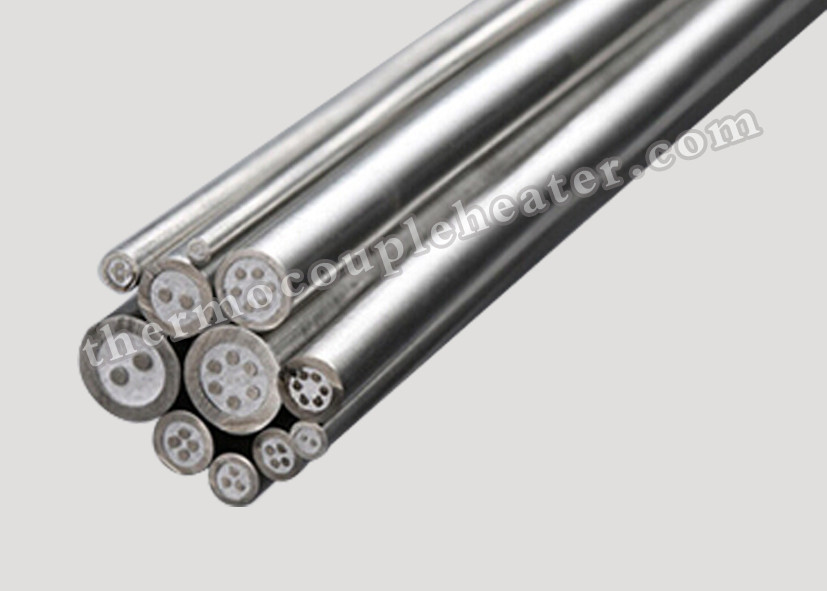

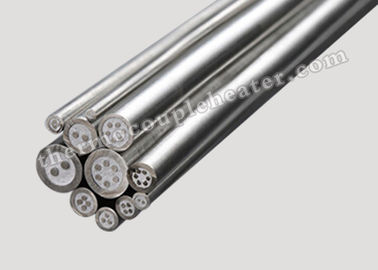

    Type J 1.6mm Stainless Steel 316 Sheath Mineral Insulated Thermocouple Cable



    Product Description:

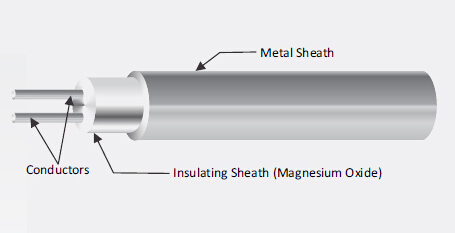

    Mineral Insulated Cable consists of thermocouple wire insulated by compacted magnesium oxide surrounded by a metal sheath. GME’s M. I. Cable is manufactured to exacting standards from the highest quality materials available to ensure accurate and reliable performance with long life. Mineral insulated thermocouples are more durable, faster responding, longer lasting and capable for use at higher temperatures than ceramic insulator or fiberglass insulated thermocouples because the wires are encased and protected by compacted insulation and the metal sheath. Maximum operating temperatures of the thermocouples are determined by the wire calibration type and the sheath alloy selected.

    Sheath Mineral Insulated Thermocouple Cable Type J 1.6mm Stainless Steel 316

    Specification:



    Outside Sheath Diameter available

    0.25mm-12.7mm

    Calibration Available

    J, K, T , E , N, S, R, B



    Sheath Material

    304 Stainless Steel

    316 Stainless Steel

    310 Stainless Steel

    Inconel 600

    Incoloy800

    Quantity of Conductors

    Simplex, Duplex, Triplex



    Conductor

    Calibration

    Accuracy

    I

    Tolerance

    Temperature

    Ni Cr - Ni Si

    K

    1.5 or 0.4%t

    -40~1000

    Ni Cr Si- Ni Si

    N

    -40~1000

    Ni Cr - Konstantan

    E

    -40~800

    Fe - Konstantan

    J

    -40~750

    Cu - Konstantan

    T

    1.5 or 0.4%t

    -40~350

    Pt Rh 10 - Pt

    S

    1 or 1+(t-1100)x0.003

    0~1600

    Pt Rh 13 - Pt

    R

    0~1600

    Pt Rh 13 - Pt Rh 6

    B

    ---

    ---



    Sheath Material

    Maximum Temperature  In Air

    Melting Temperature

    SS304

    900℃

    1405℃

    SS321

    870℃

    1400℃

    SS316

    925℃

    1370℃

    SS310

    1090℃

    1405℃

    INC600

    1090℃

    1400℃



    Feature:



    1. Long lifespan

    2. Quick response

    3. Simple installation

    4. Custom long lengths

    5. Excellent mechanical strength

    6. Corrosion and scaling resistance

    7. Moisture/pressure/radiation resistant

    8. Wide measuring range with a choice of insulation and sheath material

    9. Standard sheath sizes ranging from 0.25mm OD to 12.7mm OD.



    Application:



    Mineral Insulated thermocouple cables are mainly used to produce thermocouples .
