Electric Die Cast Aluminum Heaters For Plastic Extrusion Machine / Injection Molding

Electric Die Cast Aluminum Heaters For Plastic Extrusion Machine / Injection Molding

    • Electric Die Cast Aluminum Heaters For Plastic Extrusion Machine / Injection Molding
    • Electric Die Cast Aluminum Heaters For Plastic Extrusion Machine / Injection Molding
    • Electric Die Cast Aluminum Heaters For Plastic Extrusion Machine / Injection Molding
    • Electric Die Cast Aluminum Heaters For Plastic Extrusion Machine / Injection Molding
  • Electric Die Cast Aluminum Heaters For Plastic Extrusion Machine / Injection Molding

    Product Details:

    Place of Origin: China
    Certification: ISO9001,CE/UL/CSA

    Payment & Shipping Terms:

    Minimum Order Quantity: 1piece
    Price: Negotiable
    Packaging Details: Carton or wooden crate or as per your request
    Delivery Time: 10-15 working days
    Payment Terms: L/C, T/T,Paypal
    Supply Ability: 100,000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: Electric Die Cast Aluminum Heater For Plastic Extrusion Machine / Injection Molding Application: Industrial Heating
    Voltage: 120, 240, 480 Standard , Special Voltage To Order. Wattage: Aluminum - Up To 35 Watts/sq. In. Bronze - Up To 50 Watts/sq. In.
    Alloy Material Casted: Aluminum ,Bronze,Iron Heating Wire: Nickel Chrome Wire

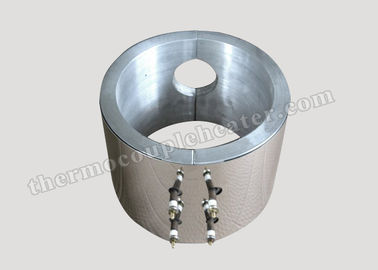

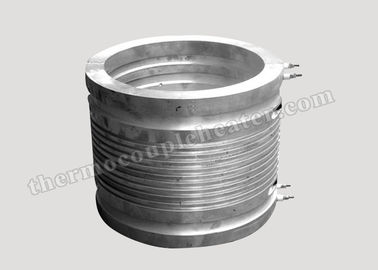

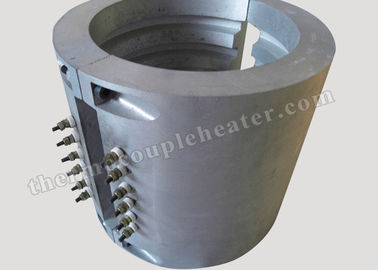

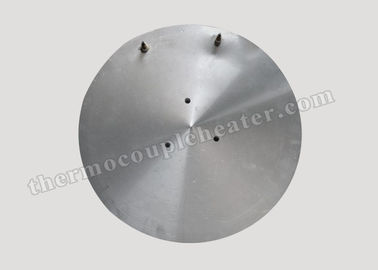

    Electric Die Cast Aluminum Heater For Plastic Extrusion Machine / Injection Molding



    1. Description



    The cast in heaters is one kind of electric heating element , which are comprised of one or more electrical heating elements embedded in alloy such as Aluminum or Bronze with good thermal conductivity.

    The homogeneity of the casting material enables excellent thermal diffusion. The uniformity of the surface temperature is ensured by a suitable forming. The cast heating elements can be used to surface temperatures up to 950 ° C.



    Cast in aluminum heaters



    Aluminum alloy is the most commonly used material up to a temperature of 400 ° C. For higher temperatures, or due to mechanical stress or other specific environmental constraints, it can be substituted by alloys of brass, bronze or cast iron.



    2. SPECIFICATIONS


    Size: Any size and shape practical
    Wattage: Aluminum - up to 35 watts/sq. in. ,  Bronze - up to 50 watts/sq. in.
    Volts: 120, 240, 480 Standard , special voltage to order.
    Max. temp: Aluminum - 700 deg. F (375 deg.C) , Bronze - 1000 deg F. (650 deg.C)
    Machining tolerance:.005" Standard.



    3. Features



    1). High operating temperatures

    2). Aluminum and bronze available

    3). Multiple shapes or sizes can be made

    4). Fins, tubes, and mounting pins can be cast into the heater

    5). Secondary machining for precision control

    6). Because tubular heating elements are shielded , cast aluminum or bronze thus providing a longer life and trouble-free.

    7). Precise and accurate control of temperature due to heat cool action

    8). High watt densities available



    4. Application

    1). Extruder Barrels

    2). Thermoforming equipment

    3). Extrusion Die Heads

    4). Blow Molding machines

    5). Packaging

    6). Food warmers

    7). Glue pots

    8). Medical equipments

    9). Rubber presses

    10). Window machines

    11). Transfer machine

    12). T-shirt press machines
