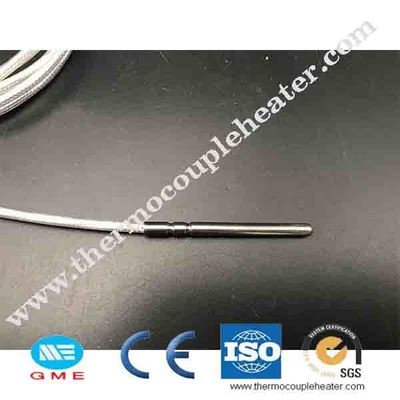

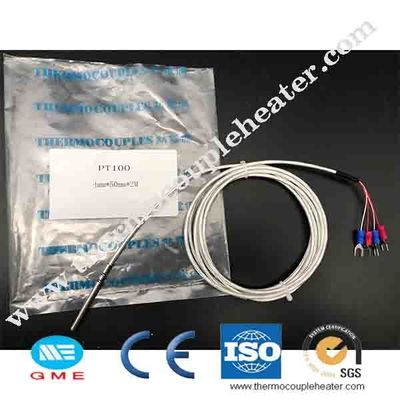

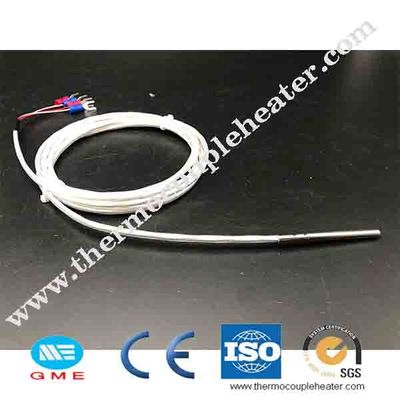

IP68 3 Wire Thermocouple Temperature Sensor PT100

IP68 3 Wire Thermocouple Temperature Sensor PT100

    • IP68 3 Wire Thermocouple Temperature Sensor PT100
    • IP68 3 Wire Thermocouple Temperature Sensor PT100
    • IP68 3 Wire Thermocouple Temperature Sensor PT100
  • IP68 3 Wire Thermocouple Temperature Sensor PT100

    Product Details:

    Place of Origin: China
    Brand Name: GME
    Certification: CE

    Payment & Shipping Terms:

    Minimum Order Quantity: 50pcs
    Packaging Details: cartons, pallet
    Delivery Time: 7~10 working days
    Payment Terms: T/T, Western Union, MoneyGram, L/C
    Supply Ability: 100000 pcs per Month
    Contact Now
    Detailed Product Description
    Power Source: Electric Temperature Range: -200~650℃
    Voltage: 12-480V Probe Material: Stainless Steel Or Nickel
    Style: PT100, PT1000, PT500, K, J Pairs Quantity Of Element: Simplex/duplex
    Heating Element: Nichrome Resistance Probe Length: 30-1000mm
    Usage: Temperature Sensor Temperature: 0-800C
    Types Of Terminal Box: Anti-spray/water-proof
    High Light:

    Thermocouple Temperature Sensor PT100

    ,

    IP68 Thermocouple Temperature Sensor PT100

    ,

    3 Wire PT100 Temperature Sensor

    3 wires waterproof probe thermal resistance Thermocouples temperature sensor pt100


    Description:



    As for the thermocouple, we split the word: Pt and 100. Pt is the chemical symbol for Platinum, 100 is the resistance in Ohm of the Pt100 at 0 °C. The resistance changes (fearly linear) with temperature are: 0.385 Ohm/°C for European and 0.392 Ohm/°C for American elements. So, by measuring the resistance we can calculate the temperature. Never use a European Pt100 with an American instrument unless you know that it is set for the right conversion factor (usually called 'alpha'). In english a Pt100 is also called a RTD element, meaning Resistance Temperature Detector.

    An RTD or Pt100 sensor is connected with two, three or four wires to the measuring device. we learned that we are in fact measuring resistance to determine the temperature. Now when measuring the resistance of the sensing element, we also measure the resistance of the leads and cables used. This gives an error! To compensate for this, the three wire type (bridge) is used, giving enough accuracy in most industrial applications. Even better accuracy is possible with a four wire Pt100 (laboratory applications). Our Pt100 panel mounted indicators have an offset compensation when using two wire sensors.

    If you want high accuracy, for example better then 0.5°C between 0 and 100°C, go for the Pt100.


    Specification:



    Temperature sensor :

    1: NTC, R25=10K, B25/85=3435

    2 :PT100

    3: PT1000

    4: Quick Overview

    IP68 temperature sensor 0.6m,1.5m,2.5m,3m, 6 m cable, -50 TO 105 °C



    The precision reached thanks to the technical solutions adopted in the development of these sensors and the reliability proven by the tests performed make NTC probes reliable and affordable transducers for measuring temperature.

    The range of IP 68 temperature sensors now includes TS* series (with two new immersion sensors, NTC and PT100, PT1000 suitable exclusively for hydronic applications) and a new pass-through temperature sensor to be used in the blast chiller applications, where the sensor is used for measuring the temperature in the product heart.





    Operating tempe. range -50+150°c

    Dielectronic strengh 2750V AC for one sec

    Thermal time constant MAX 25 sec

    Moisture resistant (60°c 95% RH)x1000hours



    IP68 3 Wire Thermocouple Temperature Sensor PT100
