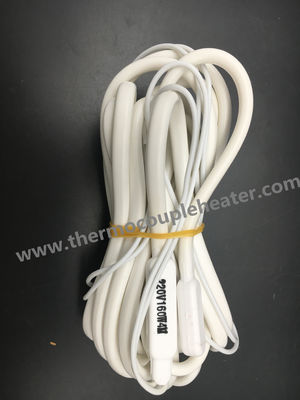

Silicone Rubber Insulation Heating Cable 1m For Freezer Drain Pipe

Silicone Rubber Insulation Heating Cable 1m For Freezer Drain Pipe
Silicone Rubber Insulation Heating Cable 1m For Freezer Drain Pipe Silicone Rubber Insulation Heating Cable 1m For Freezer Drain Pipe Silicone Rubber Insulation Heating Cable 1m For Freezer Drain Pipe Silicone Rubber Insulation Heating Cable 1m For Freezer Drain Pipe

Large Image :  Silicone Rubber Insulation Heating Cable 1m For Freezer Drain Pipe

Product Details:
Place of Origin: China
Brand Name: GME
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Packaging Details: Exported Case Packing
Delivery Time: 7-15 Working Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100,000 meters per month
Detailed Product Description
Power Density: 25W/M, 40W/M, 50W/M, Customized Voltage: 220V / 230V
Heating Element: Nickel Alloy Wire Insulation: Silicone Rubber
Shape: Flat Or Round Length: 1-6 Meters, Customized
Color: White, Brown, Red, Black, Blue, Etc. Application: Drainpipe Antifreezing Cable
Highlight:

Silicone Rubber Insulation Heating Cable

,

Freezer Drain Pipe Heating Cable

,

1m High Temperature Cable

Draining Heating Cable Silicone Heater For Freezer Drainpipe Antifreezing Wire



Description:



In cold storages,after a certain time of operation,there is build up of ice on the cooler fans and a defrosting cycle must take place.
Electrical resistances are inserted between the fans to melt the ice,and the water is collected and passed through drain pipes for disposal.Some waters if the drain pipes are inside the cold storage,so consequently the water may freeze again.To avoid this problem,a drainpipe antifreezing cable is inserted into the pipe.It is switched on only during the defrosting cycle.





Feature



(1) Good temperature resistance.The whole body uses silicon rubber as the insulation heat conduction material(including power cord),and work environment temperature is -70 to±200℃

(2) Good heat-conducting property:Generate heat energy by passing to directly conduct heat,high thermal efficiency,capable of heating in short time to achieve the effect.
(3) Reliable electrical property:When each heat tape leaves the factory,conduct strict DC resistance,soaking high pressure,insulation resistance and other tests to ensure quality.
(4) Firm structure,flexibility and easy bending:Combine the whole cooling end section,no binding point.Rational structure,easy installation.
(5) Strong design ability:Heating length,lead wire length,lead wire length,rated voltage and power are determined be users.





Technical Details



Heating element Nickel alloy wire
Insulation Silicone rubber
Shape flat or round
End of cable waterproof silicone moulding
Cold tail 1m
Output power 40 or 50W/m
Tolerance 5% on resistance
Voltage 230V
Surface temperature -70~200ºC





Specifications



Silicone Rubber Insulation Heating Cable 1m For Freezer Drain Pipe 0





Applications:



Ground heating of buildings,refrigerators and warehouses,chute heating,gutter and roof defrosting.
