2 Pin RTD Circuit Standard Thermocouple Connector With Steel Wire Clamp

2 Pin RTD Circuit Standard Thermocouple Connector With Steel Wire Clamp

    • 2 Pin RTD Circuit Standard Thermocouple Connector With Steel Wire Clamp
    • 2 Pin RTD Circuit Standard Thermocouple Connector With Steel Wire Clamp
    • 2 Pin RTD Circuit Standard Thermocouple Connector With Steel Wire Clamp
    • 2 Pin RTD Circuit Standard Thermocouple Connector With Steel Wire Clamp
  • 2 Pin RTD Circuit Standard Thermocouple Connector With Steel Wire Clamp

    Product Details:

    Place of Origin: China
    Brand Name: GME

    Payment & Shipping Terms:

    Minimum Order Quantity: 100 pieces
    Packaging Details: Standard Exporting Carton
    Delivery Time: 7-10 working days
    Payment Terms: L/C, T/T, Western Union, Paypal
    Supply Ability: 100,000 pcs per month
    Contact Now
    Detailed Product Description
    Product Name: Thermocouple Connector Type: K, J, N, T, E
    Body Material: Plastic, Ceramic Model: Male, Female
    Dimension: Standard, Mini Sample: Available
    High Light:

    RTD Circuit Standard Thermocouple Connector

    ,

    2 Pin Standard Thermocouple Connector

    ,

    2 Pin RTD Connector

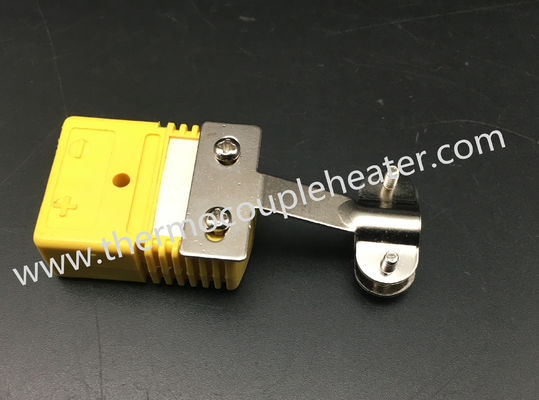

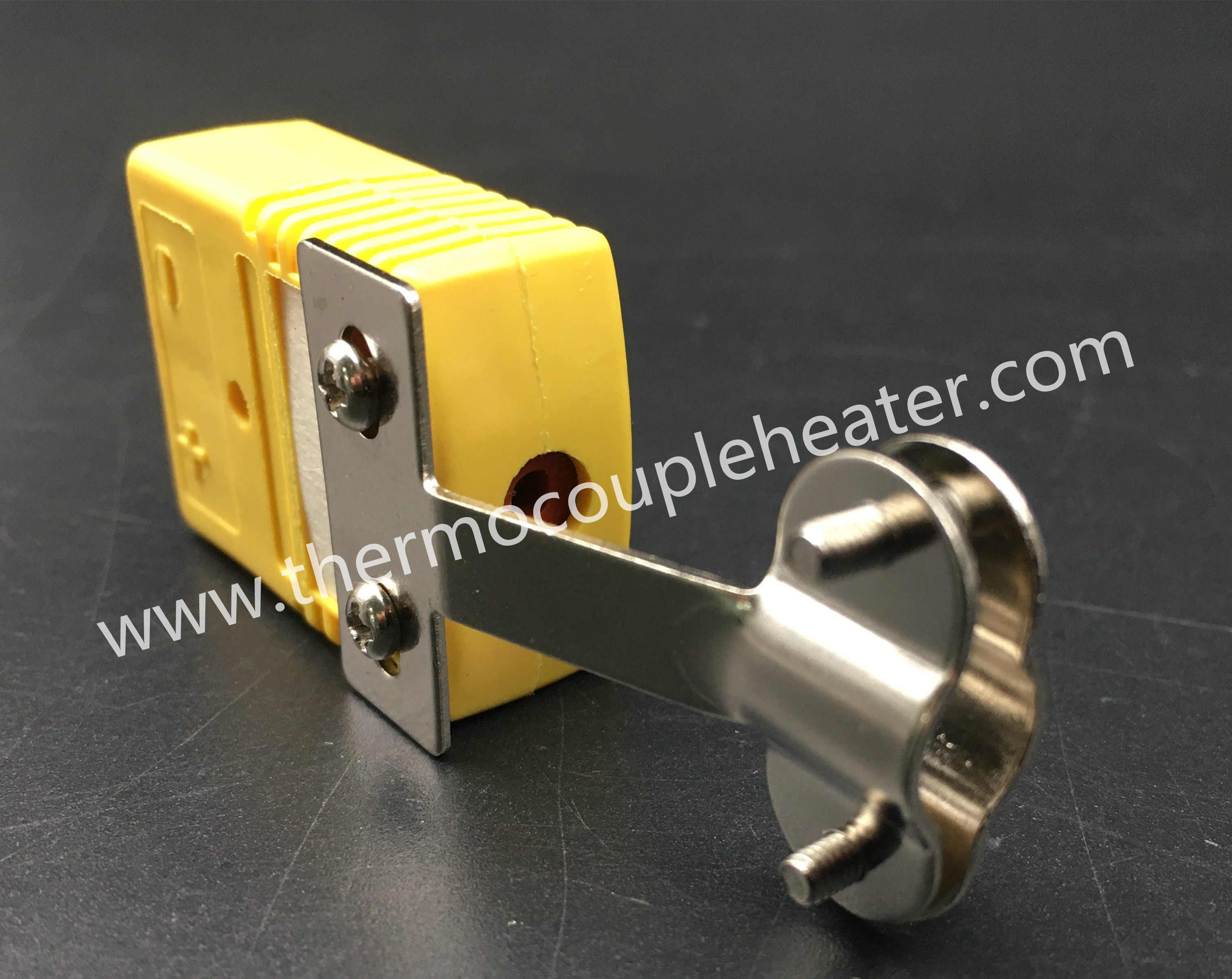

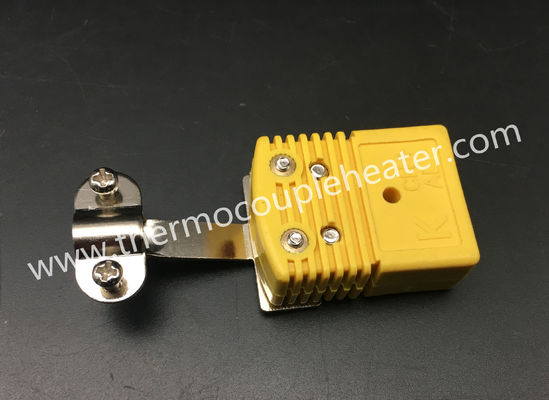

    Thermocouple Connectors Male & Female Plug With Steel Wire Clamp



    1. Description:



    Thermocouple connectors are flat 2 pin TC connectors designed to connect temperature sensor instrumentation and a temperature controller or process control HMI automation panel. Male 2 pole TC plugs and matched female 2 prong TC jack pairs are stock items.



    Thermocouple connector is widely used in thermocouple and RTD circuits ,it is best solution for quick and good contact. There are different models on offer for different applications.



    2. Features:



    Well designed body ensure good insulation inside, and well designed pins construct ensure good contact.
    Available in all color code standard. ANSI color code standard will be the one if the customer do not have special requirements.
    Original thermocouple alloy material pins, and spring loaded inserts.
    Pins are polarized
    Solid pins and hollow pins are both available, offer good contact and competitive price.
    Maximum ambient temperature for the thermoplastic body continuous usage is 200 degrees celsius.
    Thermoplastic body and ceramic material body are both available.



    3. Order codes:

    2 Pin RTD Circuit Standard Thermocouple Connector With Steel Wire Clamp

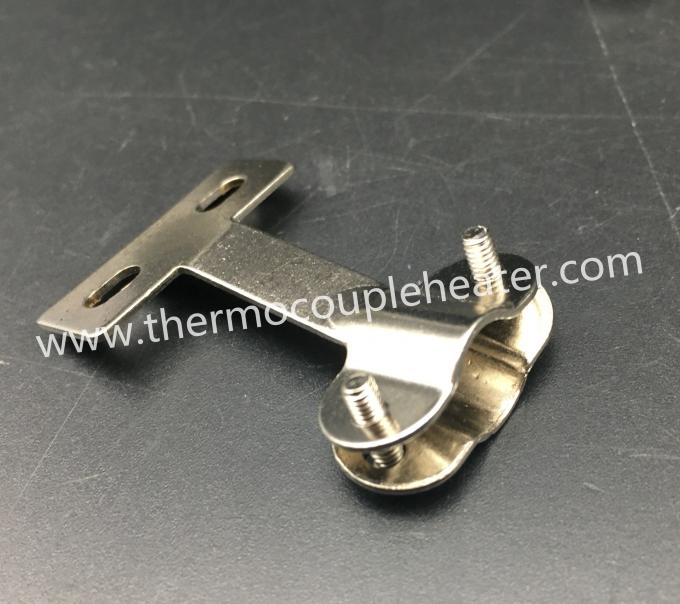

    4. Related wire clamp is available upon requests:



    2 Pin RTD Circuit Standard Thermocouple Connector With Steel Wire Clamp
