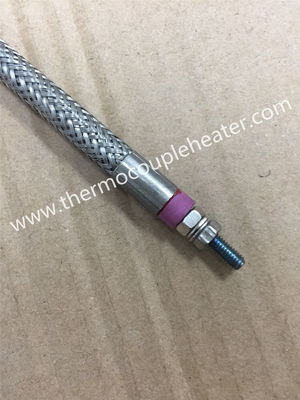

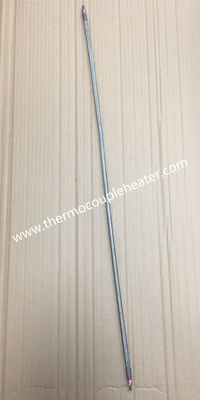

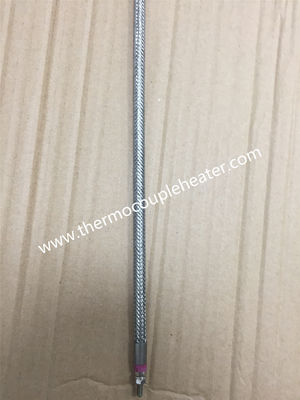

SS Braided Surface Flexible Tubular Heater For Hot Runner Manifolds

SS Braided Surface Flexible Tubular Heater For Hot Runner Manifolds

    • SS Braided Surface Flexible Tubular Heater For Hot Runner Manifolds
    • SS Braided Surface Flexible Tubular Heater For Hot Runner Manifolds
    • SS Braided Surface Flexible Tubular Heater For Hot Runner Manifolds
  • SS Braided Surface Flexible Tubular Heater For Hot Runner Manifolds

    Product Details:

    Place of Origin: China
    Brand Name: GME

    Payment & Shipping Terms:

    Minimum Order Quantity: 10 pieces
    Packaging Details: Standard exporting packing
    Delivery Time: 7-10 days
    Payment Terms: L/C, T/T, Western Union, Paypal
    Supply Ability: 100,000 pieces per month
    Contact Now
    Detailed Product Description
    Heating Wire: Ni80Cr20 Insulator: MgO
    Surface: Stainless Steel Braided / Threaded / Smooth Diameter: 6/6.5/8/8.5mm, Customerized
    Overall Length: 300-2000mm, Customerized Power: 450-3250W, As Per Heating Length
    High Light:

    Flexible Tubular Heater

    ,

    SS Braided Surface Tubular Heater

    ,

    hot runner manifolds tubular electric heaters

    Flexible Tubular Heater Stainless Steel Braided Surface For Hot Runner Manifolds



    Product Description


    Flexible tubular heaters can be manually bent in all three directions.Flexible tubular heaters make the heating of complex platens, shapes, and machines, possible. Flexible tubular heaters are completely flexible, and may be shaped at will. Around pipes, along platen paths, and other challenging shapes. Excellent replacements for traditional tubular heaters, which are not flexible and most can be custom made in most cases.
    Simplify your machine design, or reduce the maintenance time and cost by using our flexible tubular heaters.


    Specification





    Voltage 12~440V
    Wattage 100~3000W, or customized
    Size

    round section:φ6.0 - φ8.5mm

    square section:6*6mm, 8*8mm

    Electric Heating Wire NiCr8020
    Insulation MgO
    Sheath Metal braided/SS braided
    Operation Temperature 0~800C





    Feature



    1. Easy installation with a uniform finish
    2. Can be formed by hand
    3. Stored in a straight condition to save storage space
    4. No special installation tools required
    5. Up to 75% sheath contact with round and square hotflex heaters
    6. Rapid heat-up times
    7. Minimal temperature difference between heater sheath and heated tool
    8. 3-dimensional groove geometry possible
    9. Industry’s smallest bending radius
    10. Flexibility enables heat to be located where it is needed, an improvement over cartridge heaters
    11. Reduced energy costs, so tool mass can be reduced



    Application


    1. Plastic processing machineries.
    2. Engineering Industry.
    3. Packaging machinery.
    4. Shoe making machineries
    5. Foundry Equipments.
    6. Radiant Surface heating.
    7. Hot Runner Mould Systems.
