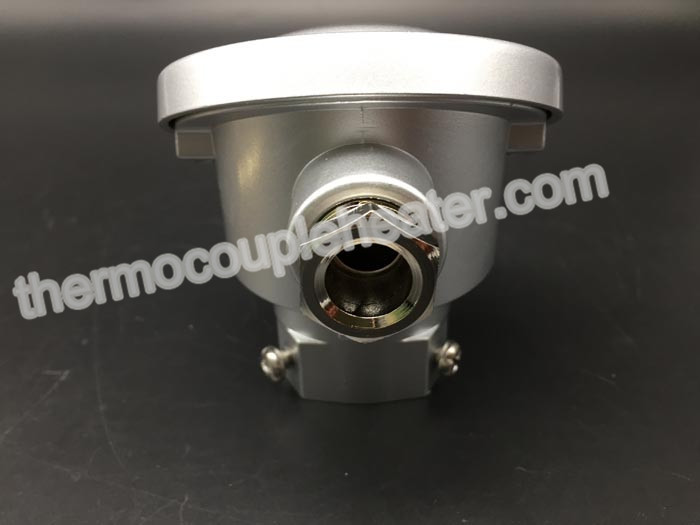

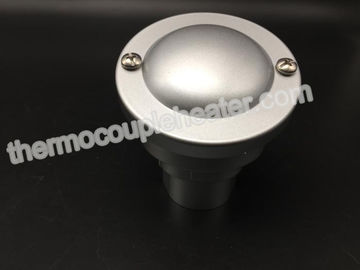

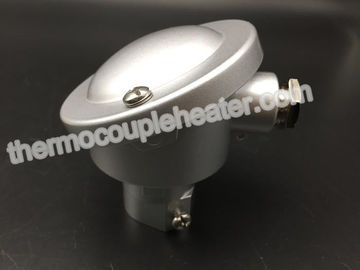

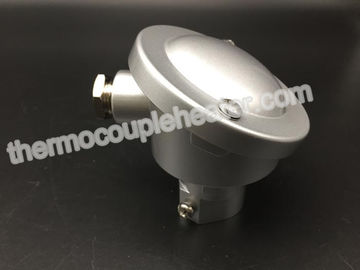

Industrial Silver Cast In Aluminium Thermocouple Head DIN A ISO9001 Passed

Industrial Silver Cast In Aluminium Thermocouple Head DIN A ISO9001 Passed

    • Industrial Silver Cast In Aluminium Thermocouple Head DIN A ISO9001 Passed
    • Industrial Silver Cast In Aluminium Thermocouple Head DIN A ISO9001 Passed
    • Industrial Silver Cast In Aluminium Thermocouple Head DIN A ISO9001 Passed
    • Industrial Silver Cast In Aluminium Thermocouple Head DIN A ISO9001 Passed
  • Industrial Silver Cast In Aluminium Thermocouple Head DIN A ISO9001 Passed

    Product Details:

    Place of Origin: China
    Brand Name: GME
    Certification: ISO9001
    Model Number: DIN A

    Payment & Shipping Terms:

    Minimum Order Quantity: 100 pieces
    Price: USD 2.0-10 FOB Shanghai/pcs
    Packaging Details: Export Carton Package or as Customer Request
    Delivery Time: 7-15 Working Days
    Payment Terms: T/T, Western Union, L/C,PayPal
    Supply Ability: 10000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: Temperature Sensor Connection Head Application: Industrial Temperature Measurement
    Model Number: DIN A Material: Aluminium Alloy
    Weight: 0.20kg Painting: Lacquer Painting Polyester Powder Coating
    High Light:

    industrial heating elements

    ,

    temperture sensor component

    Industrial Silver Cast In Aluminium Thermocouple Head DIN A , ISO9001





    1. Product description



    Cast In Aluminium Thermocouple Head are made of Aluminum, stainless steel, Bakelite or Iron . They are designed to provide access to connections between the sensor and the instrument wiring and to provide protection from the elements , which is widely used in thermocouple and RTD assembly .Thermocouple head terminal blocks are generally available from two to six terminals.



    2. Material



    1. Die-casting aluminium ADC12

    Aluminium alloy Cu Zn Si Mg Mn Fe Al
    ADC12 1.58% 0.05% 11.80% 0.06% 0.07% 0.34% Balance



    2. Bakelite plastic



    3. Stainless Steel 304, 316



    3. Technical Specifications

    Industrial Silver Cast In Aluminium Thermocouple Head DIN A ISO9001 Passed

    Wire entry Probe entry Terminal Block Fixing Hole
    M20x1.5 1/2" NPT 47mm, A series
    M20x1.5 1/2" BSPP 47mm, A series
    M20x1.5 22.5mm 47mm, A series
    M20x1.5 32.5mm 47mm, A series
    1/2" BSPP 1/2" BSPP 47mm, A series
    1/2" BSPP M24x1.5 47mm, A series
    1/2" BSPP 32.5mm' 47mm, A series
    Pg16 M24x1.5 47mm, A series



    4. Feature



    1. The appearance of our products is aesthetics.

    2. The thread entries are smooth and easy to be installed.

    3. High accuracy in paint spraying.

    4. About 50 models of heads are available .
