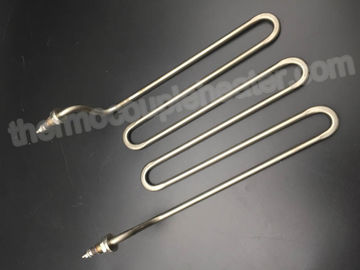

Stainless Steel Tubular Heating Elements For Water / Non - Corrosive Liquids

Large Image : Stainless Steel Tubular Heating Elements For Water / Non - Corrosive Liquids

Product Details:

Place of Origin:	China
Brand Name:	GME
Certification:	ISO9001/CE

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiable
Packaging Details:	Carton or wooden crate or as per your request
Delivery Time:	10 working days or above
Payment Terms:	L/C, T/T,PAYPAL
Supply Ability:	100000pcs per month

Contact Now

Detailed Product Description

Product Name:	8mm Diameter Stainless Steel 304 Formed Tubular Heating Elements	Application:	Industrial Heating Elements
Sheath Material:	Incoloy 800, SS304, SS321, SS316	Voltage:	Customized
Resistance Wire:	Ni80Cr20	Power:	Customized
Highlight:	thermostatic tubular heater , tubular heater elements

8mm Diameter Stainless Steel 304 Formed Tubular Immersion Heating Elements

Product Description

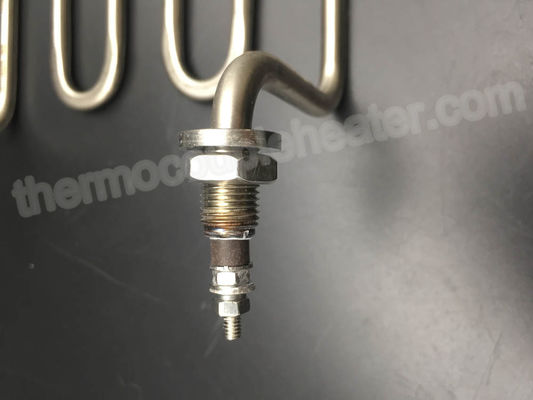

Custom heating elements can be provided to any length, formed into any configuration and sheathed in a variety of different materials to suit your application. Likewise, the connection/termination possibilities are limited only by your imagination and the availability of components. Standard terminations include threaded stud, threaded bulk-head, screw lug, quick disconnect spade, ceramic-to-metal hermetic, molded rubber lead, conventional lead wire terminal assembly and more.

Material	Material Max. Temp. °C	Application
Copper	150	Water, non-corrosive liquids
Steel	400	Oil immersion
Stainless Steel 304	650	Water,Corrosive liquids, food processing
Stainless Steel 316	650	Corrosive liquids,
Stainless Steel 321	650	intergranular corrosion situation
Incoloy 800	800	Water ,Corrosive liquids, air, clam

Specification

Voltage&Power:12V-480V, 200W-100,000W

Specification

1. The tube sheath materials available in SUS304,SUS316,SUS321 INCOLOY840,Incoloy800

2. Tube Diameter : 6.6mm ~ 25mm.

3. The surface load of the heating tube is 9.8W/cm2.

Feature

1. Quick temperature raising rate
2. Longer transfer of heat radiation
3. No contamination from dust: No convection needed
4. High safety: No spark, no naked fire, highly insulated, the radiation of the harmony heater is not harmful to human bodies
5. Low cost with long service life and high efficiency
6. Easy installation
7. Fast heat exchange rate

8. Shorter process time
9. Lower power needed

Application

Formed tubular heating elements is widely used in domestic or commercial water dispenser,coffee machines,water and oil heaters,showers water machine,dishwashers,etc.
