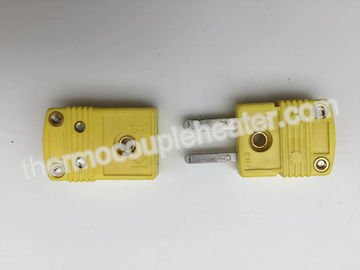

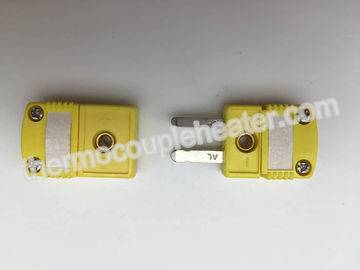

Yellow Thermoplastic Thermocouple Connectors Type K Male And Female For Industria

Yellow Thermoplastic Thermocouple Connectors Type K Male And Female For Industria

    • Yellow Thermoplastic Thermocouple Connectors Type K Male And Female For Industria
    • Yellow Thermoplastic Thermocouple Connectors Type K Male And Female For Industria
  • Yellow Thermoplastic Thermocouple Connectors Type K Male And Female For Industria

    Product Details:

    Place of Origin: China
    Brand Name: GME
    Certification: CE & ISO
    Model Number: Type J Mini Thermoplastic Thermocouple Connectors

    Payment & Shipping Terms:

    Minimum Order Quantity: 100 pcs
    Price: Negotiation
    Packaging Details: Exported Case Packing
    Delivery Time: 10-15 working days after received your payment
    Payment Terms: T/T, Western Union, D/P, L/C, Paypal
    Supply Ability: 25,000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: Type K Mini Thermoplastic Thermocouple Connectors Temperature Range Range: 0--600 Centigrade
    Materials: Thermoplastic Types: K, S, N, J, T, E
    Usage: Industrial, Thermocouple Accessories Material: Black
    Conductor Material:: Chromel, Alume Application: Industria
    High Light:

    thermocouple assemblies

    ,

    thermocouple parts and components



    Yellow Thermoplastic Mini Type K Thermocouple Connector Male And Female




    1. Description



    Thermocouple connectors are mini size flat 2 pin TC connectors designed to connect temperature sensor instrumentation and a temperature controller or process control HMI automation panel. Male 2 pole TC plugs and matched female 2 prong TC jack pairs are stock items.





    2.  Characteristics



    • Maximum ambient temperature for the thermoplastic body continuous usage is 200 degrees celsius.
    • Thermoplastic body and ceramic material body are both available.
    • Original thermocouple alloy material pins, and spring loaded inserts.
    •  Pins are polarized
    • Well designed body ensure good insulation inside, and well designed pins construct ensure good contact.
    • Available in all color code standard. ANSI color code standard will be the one if the customer do not have special requirements.
    • Solid pins and hollow pins are both available, offer good contact and competitive price.


    3. Thermocouple Connector Parameter.


    Wire size



    • Accepts wires from 0.2 mm to 2.0 mm.
    • Maximum cable diameter 8.0 mm.


    Max. Temperature



    • 200 Deg. C for thermoplastic body
    • 650 Deg. C for ceramic body

    Yellow Thermoplastic Thermocouple Connectors Type K Male And Female For Industria



    Mark

    Material

    Color

    K

    Nickel chrome - nickel silicon

    yellow (ANSI), green (IEC)

    J

    Iron-copper nickel

    Black

    N

    Silicon nickel chrome - nickel silicon magnesium

    Orange

    T

    Copper - copper nickel

    blue

    E

    Copper nickel- chrome nickel

    purple

    R/S

    Copper - copper nickel

    green



    Yellow Thermoplastic Thermocouple Connectors Type K Male And Female For Industria



    4. Thermocouple Connector Application


    This thermocouple connector is widely used in the thermocouple and RTD circuits and instrument machine.


    5. Thermocouple Connector Connector



    • Good Quality :We have strict quality control system .Good reputation in the foreigner market.
    • Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).
    • Low MOQ: It can meet your promotional business very well.
    • OEM Accepted : We can produce any your design as long as you provide us the drawing.
    • Good Service : We treat clients as friend.

    Yellow Thermoplastic Thermocouple Connectors Type K Male And Female For Industria
