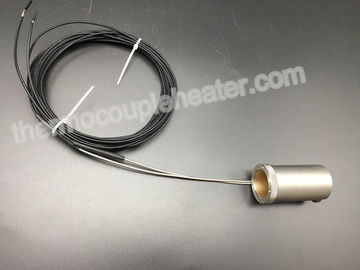

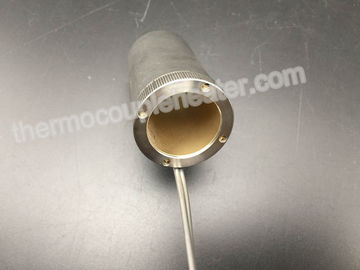

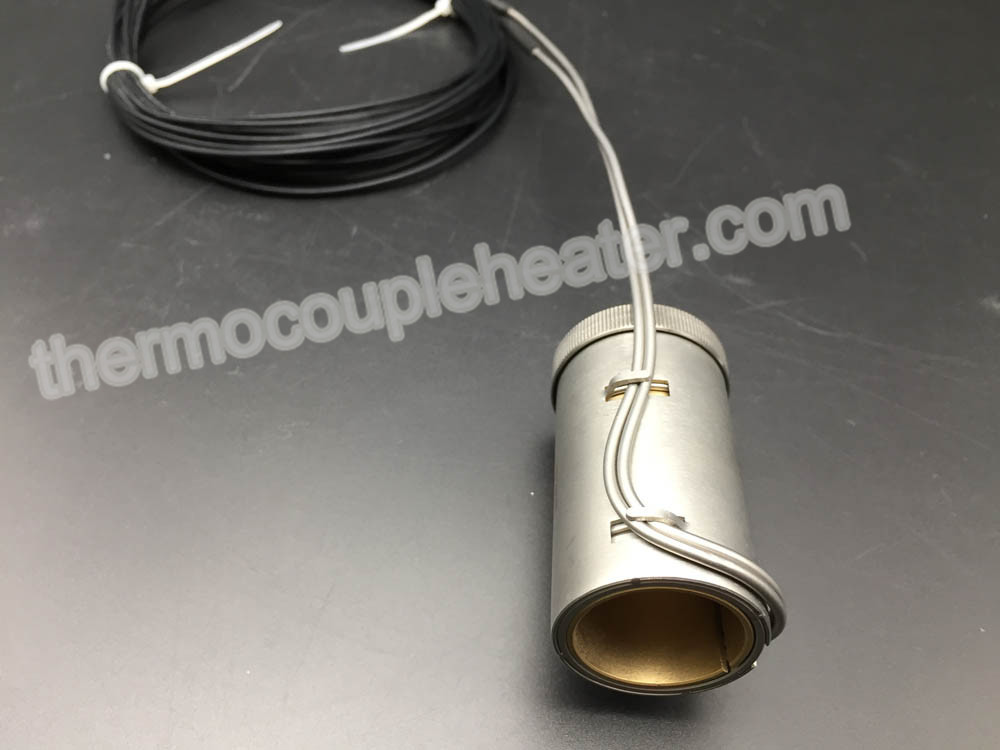

Hotlock Hot Runner Coil Heater With Brass Spiral Core And Stainless Steel Sleeve Cap

Hotlock Hot Runner Coil Heater With Brass Spiral Core And Stainless Steel Sleeve Cap

    • Hotlock Hot Runner Coil Heater With Brass Spiral Core And Stainless Steel Sleeve Cap
    • Hotlock Hot Runner Coil Heater With Brass Spiral Core And Stainless Steel Sleeve Cap
    • Hotlock Hot Runner Coil Heater With Brass Spiral Core And Stainless Steel Sleeve Cap
  • Hotlock Hot Runner Coil Heater With Brass Spiral Core And Stainless Steel Sleeve Cap

    Product Details:

    Place of Origin: China
    Brand Name: GME
    Certification: CE & ISO
    Model Number: Coil Heater

    Payment & Shipping Terms:

    Minimum Order Quantity: 10 pcs
    Price: negotiation
    Packaging Details: Exported Case Packing
    Delivery Time: 20,000pcs per month
    Payment Terms: D/P, L/C, Western Union, T/T, Paypal
    Contact Now
    Detailed Product Description
    Product Name: Hotlock Hot Runner Coil Heater With Brass Spiral Core And Stainless Steel Sleeve Cap Application: Hot Runner
    Insulated Material: Comressed MgO Power(W): 200-3000W
    Watt Density: 6.5 W / CM 2 Warranty: 1 Year
    Moistureproof: IP 65 Lead Wire Length: 1000 Mm Or Customized



    Hotlock Hot Runner Coil Heater With Brass Spiral Core And Stainless Steel Sleeve Cap




    1. Brief Introduction



    The Hotlock Nozzle Coil Heater are constructed with a Stainless Steel inner sleeve and a Stainless Steel outer sleeve. The heater is tightly sandwiched between these sleeves eliminating the heat transfer problems associated with other dual sleeved designs.



    The materials used direct the heat inward toward the nozzle resulting in a very efficient heater with even heat distribution. The tightly toleranced I.D allows a slip fit with no clamping required.



    Our coil heater made of Germany heater wire ,the united states high-purity magnesium oxide materials and strict process technology,there are various sections and sizes,square ,round and flat cross sections and sizes available ,provide high –performance electric heater for heating hot runner mold and other fileds. Heaters maximum temperature up to 700C.The integration of temperature thermocouple for precise temperature control ,can provide K J E themocuple ,blasting and black surface treatment ,also provides bright surface.



    2. Specification



    Sheath material Chrome Nickel Steel
    Insulation material High purity MgO
    Heating element NiCr 80:20
    Thermocouple 'J' type (Fe K) 'K' type (Cr Al) grounded or ungrounded
    Connection Wires Stranded Nickel wires with PTFE coating
    Power Tolerance (+5% ,-10%) (smaller tolerances on request )
    Insulation Resistance ≥ 500 MΩ at 500V AC
    Current Leakage ≤ 0.5 mA at 253V AC
    Sheath Temperature 750°C
    Dielectric strength (high voltage test ) Min. 1000V



    Technical Drawing



    Hotlock Hot Runner Coil Heater With Brass Spiral Core And Stainless Steel Sleeve Cap










    3. Feature

    • Robust Design with Choice of Terminal Exits
    • Highly Non-corrosive
    • Maximum heat transfer due to more contact area
    • Advanced Thermal Engineering
    • Designed for even heat profile
    • Precision fit on Hot Runner Nozzles & Manifolds
    • CE Certified
    • Available with built in Thermocouple
    • Standard sizes available with various cross section
    • Various Watt Density options available.

    4. Application

    • Injection & Blow Moulding Machine Nozzles.
    • PET prefrom & Thin wall container Moulds.
    • Hot Runner Manifolds.
    • Hot Runner Nozzles & Bushings.
    • Hot runner Injection moulds

    5. Packing



    Hotlock Hot Runner Coil Heater With Brass Spiral Core And Stainless Steel Sleeve Cap
