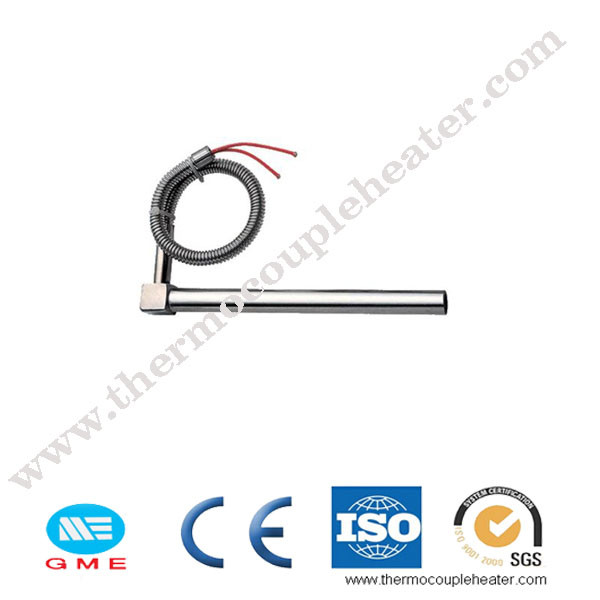

200W 300W 400W 500W Single ended heating resistance rod Cartridge Heater with thermocouple K

    • 200W 300W 400W 500W Single ended heating resistance rod Cartridge Heater with thermocouple K
    • 200W 300W 400W 500W Single ended heating resistance rod Cartridge Heater with thermocouple K
    • 200W 300W 400W 500W Single ended heating resistance rod Cartridge Heater with thermocouple K
    • 200W 300W 400W 500W Single ended heating resistance rod Cartridge Heater with thermocouple K
  • 200W 300W 400W 500W Single ended heating resistance rod Cartridge Heater with thermocouple K

    Product Details:

    Place of Origin: China
    Brand Name: GME
    Certification: ISO/CE/UL/CSA

    Payment & Shipping Terms:

    Minimum Order Quantity: 50pcs
    Price: USD 1-100 FOB Shanghai/pc
    Packaging Details: Boxes or Wooden Cartons
    Delivery Time: 7-15 work days
    Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram, L/C
    Supply Ability: 10000pcs/Month
    Contact Now
    Detailed Product Description
    Lead Wire: Silicon, Glassfiber Shealth Material: SS304 ,SS321 ,SS316
    Color: Biack And White Wattage Tolerance: +5%, -10%
    Application: Oil, Water Or Other Liquid Etc Power Source: Electric
    Voltage: 12-480v Dimension(L*W*H): Customizable
    Type: Air Heater, Cartidge Heaters Insulation: Mgo Powder

    200W 300W 400W 500W Single ended heating resistance rod Cartridge Heater with thermocouple K



    Description:


    1) Cartridge heaters is consist of a cylindrical stainless steel tube and thus provide a high corrosion prevention. The heating wire inside which is wound onto a ceramic core. The number of coils varies depending on the power. and provide a great uniform distribution of heat, which considerably increases the long life of the heater as well as prevents the oxidation of the heater wire even at high temperatures .The solids, liquids, and gases need to be heated by cartridge heater, transmit heat quickly by conduction if the producer of the heat (the cartridge) is in direct contact with the heat sink (any solid, liquid, or gas).

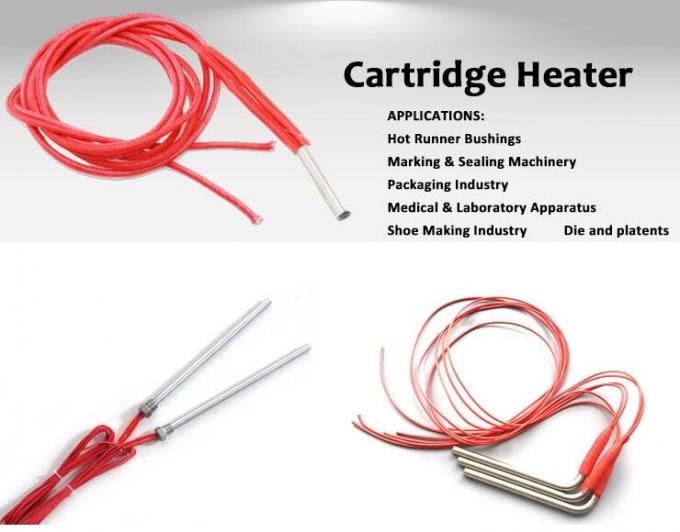

    2) Cartridge heater is Widely used for manufacturing plastic and rubber parts in the car industry or in the food processing industry, etc they are also commonly found in the chemical, electronics, medical equipment, packing and nuclear industries.Apart from our broad standard range we also develop and manufacture cartridge heaters according to your special demands..



    3) Cartridge heaters are used for several heating metal parts and can be fitted with threaded bushings for liquid heating for certain applications. cartridge heaters will reach metal temperatures of up to 760°C with the appropriate material, watt density, and fit selections .


    Specification:



    1. Part temperatures up to 1400°F ( 760° C ) on alloy 800 sheath

    2. Watt densities up to 40W/cm2

    3. Maximum voltage up to 480VAC, Minimum voltage up to 5VAC

    4. Minimum diameter up to 3mm

    5. Maximum diameter up to 35mm

    Technical Detail:

    1 Tube diameter: Φ3mm-Φ30mm
    2 Tube Material:SS304;SS316,SS321,NICOLOY800 etc
    3 Insulation Material:High-purity Mgo
    4 Reisistance wire element:Ni-Cr or FeCr
    5 Lead Connection Option: Crimped or Swaged leads
    6 Lead and type of connection leads, 10" Fiberglass Standard(Wire options,silicone high temperature frberglass).





    Sheath material SS304.321.316L,Incoloy800.840,Titanium
    Insulation material High-purity MgO
    Resistance Ni-Cr or FeCr
    Maximum voltage 480VAC
    Wattage density high/middle/low(5-40w/cm2)
    Wattage tolerances toloerance :+5% -10%
    Dimensional Diameter: Min. dia:3mm
    Length: Customized
    Lead options Crimped- on / Swaged- in
    Lead types Swage fiberglass insulation nickel wire ( 750°C )
    Crimp teflon line ( 250°C ) Crimp
    silicon insulated wire ( 200°C )
    Crimp fiberglass insulation nickel wire ( 450°C )
    Internal Type J or K available thermocouple
    Lead protection options Stainless steel braid
    Stainless steel flexible hose
    other options Bent heaters, in no-heat section, up to 90° angle
    mounting flange




    200W 300W 400W 500W Single ended heating resistance rod Cartridge Heater with thermocouple K
