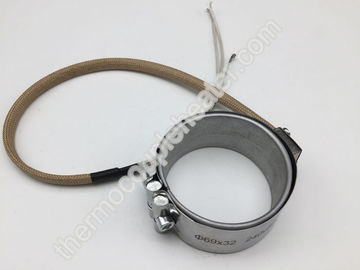

Stainless Steel Mica Band Heater For Plastic Injection Mold Without Thermocouple

Stainless Steel Mica Band Heater For Plastic Injection Mold Without Thermocouple

Stainless Steel Mica Band Heater For Plastic Injection Mold Without Thermocouple

Product Details:

Place of Origin: China
Brand Name: GME
Certification: CE & ISO
Model Number: -

Payment & Shipping Terms:

Minimum Order Quantity: 10 pieces
Price: negotiation
Packaging Details: Export Carton Box
Delivery Time: 7-15 working days
Payment Terms: L/C, D/P, T/T, Western Union, Paypal
Supply Ability: 20,000pcs per month
Contact Now
Detailed Product Description
Insulated Material: Stainless Steel Mica Band Heater For Plastic Injection Mold Without Thermocouple Product Name: ID 80mm X Height 70mm 230V 600W Mica Band Heater Stainless Steel Heating Element
Warranty: 1 Year Lead Wire Length: 1000 Mm Or Customized
Application: Plastic Mold Material: Stainless Steel 304, 316

Stainless Steel Mica Band Heater For Plastic Injection Mold Without Thermocouple







1. Mica Band Heater Brief Introduction



Mica Band heaters are used in plastic processing industry for keeping the nozzles of injection molding machines hot. Nozzle heaters are manufactured from high quality mica sheet or ceramic, and have Nickel Chrome resistance. Nozzle heaters are covered by metal sheathing & can be rolled to the required shape. Band heaters operate efficiently when the sheath temperatures are kept below 280 degree centigrade. If this temperature is maintained, the life of the band heaters gets long.





2. Mica Band Heater Features:


High class Nickel Chrome ribbon is used.
Maximum power: 3w/cm2(s.steel),4.5w/cm2(brass),6.5w/cm2(ceramic insulation)
Operating temperature up maximum of 500 degree centigrade
Axial, Radial & Tangential terminals are available
Thermocouple holes can be provided as per client's requirements



3. Mica Band Heater Technical Information​.



Heater material :copper, SS304, cast aluminum, cast copper, ceramic
Insulation material :imported high-temperature mica
Resistance wire: Ni80Cr200
Electrical property: ≤0.5mA
Wattage tolerance: +5%-10%
Input voltage and wattage :to be customized as request
Specification :to be customized as request



Stainless Steel Mica Band Heater For Plastic Injection Mold Without Thermocouple





4. Mica Band Heater Application



Band heaters are commonly used in the plastics industry: to heat plasticization cylinders, extruders and injection presses. They are also employed on woodworking machinery and scientific-medical equipment.



Flat mica bands are used in the packing trade (sealing bars and wheels), industrial ironing (mangles) and plastics (extrusion/blower machines).



Injection molding
Blow-molding
Plastic extrusion
Container, pipe, or tank heating
Process applications
