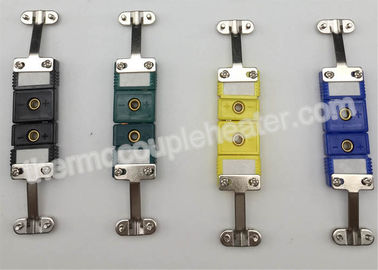

Type J / K / T / R / S Miniature Thermocouple Connector With Metal Wire Holder

Type J / K / T / R / S Miniature Thermocouple Connector With Metal Wire Holder

1. Description

Thermocouple connectors are mini  flat 2 pin TC connectors designed to connect temperature sensor instrumentation and a temperature controller or process control HMI automation panel. Male 2 pole TC plugs and matched female 2 prong TC jack pairs are stock items.

Connector is widely used in thermocouple and RTD circuits ,best solution for quick and good contact. Different models are on offer for different applications.

2.  Characteristics

• Well designed body ensure good insulation inside, and well designed pins construct ensure good contact.
• Available in all color code standard. ANSI color code standard will be the one if the customer do not have special requirements.
• Original thermocouple alloy material pins, and spring loaded inserts.
•  Pins are polarized
• Solid pins and hollow pins are both available, offer good contact and competitive price.
• Maximum ambient temperature for the thermoplastic body continuous usage is 200 degrees celsius.
• Thermoplastic body and ceramic material body are both available.

3. Thermocouple Connector Parameter.

Wire size

• Accepts wires from 0.2 mm to 2.0 mm.
• Maximum cable diameter 8.0 mm.

Max. Temperature

• 200 Deg. C for thermoplastic body
• 650 Deg. C for ceramic body

4. Thermocouple Connector Connector

• Good Quality :We have strict quality control system .Good reputation in the foreigner market.
• Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).
• Low MOQ: It can meet your promotional business very well.
• OEM Accepted : We can produce any your design as long as you provide us the drawing.
• Good Service : We treat clients as friend.
