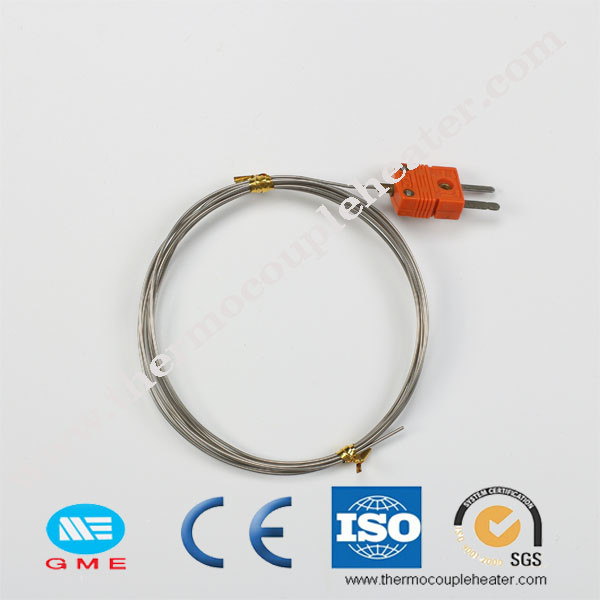

Assembly Thermocouple RTD With K E J B R S Type Thermocouple With Plug

Assembly Thermocouple RTD With K E J B R S Type Thermocouple With Plug

    • Assembly Thermocouple RTD With K E J B R S Type Thermocouple With Plug
    • Assembly Thermocouple RTD With K E J B R S Type Thermocouple With Plug
    • Assembly Thermocouple RTD With K E J B R S Type Thermocouple With Plug
  • Assembly Thermocouple RTD With K E J B R S Type Thermocouple With Plug

    Product Details:

    Place of Origin: China
    Brand Name: GME
    Certification: CE

    Payment & Shipping Terms:

    Minimum Order Quantity: 50pcs
    Packaging Details: cartons, pallet
    Delivery Time: 7~10 working days
    Payment Terms: T/T, Western Union, MoneyGram, L/C
    Supply Ability: 100000 pcs per Month
    Contact Now
    Detailed Product Description
    Power Source: Electric Temperature Range: -200~650℃
    Voltage: 12-480V Probe Material: SS304/SS316
    Style: K, J, S Pairs Quantity Of Element: Simplex/duplex
    Heating Element: Nichrome Resistance Mounting: Thread/flange/none
    Function: Temperature Sensor Feature: Economical
    Types Of Terminal Box: Anti-spray/water-proof Connection: Thread
    Sample: Available



    High quality and cheap assembly thermocouple with K E J B R S type thermocouple with plug

    Description:



    1) GME Thermocouples are manufactured in many different configurations for multitude of applications. Diameters, lengths, sheath material, lead lengths and sensor material are just a few of the variables that go into determining the style of thermocouple when manufactured. The main determining factors of what type thermocouple needs to be used in a application is temperature, environment, response time and accuracy.



    2) The junction of the thermocouple can be grounded, ungrounded or exposed. The thermocouple junction may be of many different styles, from tube type to a washer configuration. The lead length may vary depending on the distance of the temperature controller from the thermocouple sensor. The metal that the sensor is constructed of determines the type of thermocouple manufactured.




    Specification:



    Type K
    Model WRNK-191
    Circle dia customized
    Temperature range 0~+1300C
    Tube material SS310/304/316,inconel600/ceramic
    Fixing screw/flange/none
    Cable stainless/silicone/teflon



    Assembly Thermocouple RTD With K E J B R S Type Thermocouple With Plug





    Features:



    • Thermocouple Wires: Cromel-Alumel, Iron- Constant, Copper-Constant, imported Bright & Oxidized finish, SWG 10 to 36. PT/PTRH 10%, 13% .

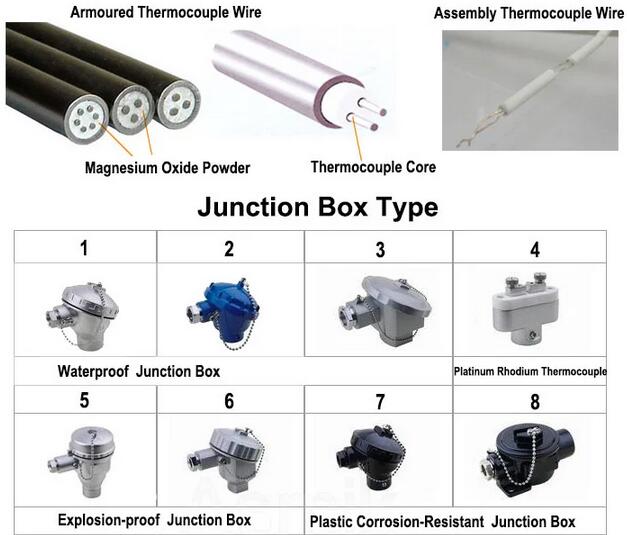

    • Thermocouple Extension & Compensating Cables: Fiber glass covered, PVC / PVC. Asbestos / Asbestosis, Teflon/Teflon, Insulated, Teflon/Fg/SS Braided single pair, multi pair, Type K, J, T, R, and PT-100 RTD Cables 2 core, 3 core, 4 core , 6 core, Also Teflon /silicon rubber Teflon/shielded/Teflon etc qualities.
    • Thermocouple M.I. Cables: SS 316, 310 & Inconel 600 quality type K, J, Simplex 1mm,1.5mm, Simplex & Duplex 3mm,6mm, 8mm, also PT-100 RTD Thermocouple M I Cables SS 316 quality. 3mm, 5mm, 6mm 4 core
    • Thermocouple Assemblies: Straight, L Type , Rotating type, Inmelt Bolt type, Pencil type, Washer, Holder with Spring. Rotating Type, Adjustable Types etc. Made out of SS tube 4.8mm, 6mm,supplied with Spring & Brass bayonets Single Slot & Double Slot , 10mm id, 12mm id, 14mm id, etc.
    • Thermocouple Brass Parts: ADAPTORS 1/8 BSP, 1/4 BSP, 1/2 BSP, 3/8 BSP Single Pin, Double pin Bayonets.
