Electric 3- Wire Thermocouple RTD Pt100 For 300c 600C In High Temperature

Electric 3- Wire Thermocouple RTD Pt100 For 300c 600C In High Temperature

    • Electric 3- Wire Thermocouple RTD Pt100 For 300c 600C In High Temperature
    • Electric 3- Wire Thermocouple RTD Pt100 For 300c 600C In High Temperature
    • Electric 3- Wire Thermocouple RTD Pt100 For 300c 600C In High Temperature
    • Electric 3- Wire Thermocouple RTD Pt100 For 300c 600C In High Temperature
    • Electric 3- Wire Thermocouple RTD Pt100 For 300c 600C In High Temperature
  • Electric 3- Wire Thermocouple RTD Pt100 For 300c 600C In High Temperature

    Product Details:

    Place of Origin: China
    Brand Name: GME
    Certification: CE

    Payment & Shipping Terms:

    Minimum Order Quantity: 50pcs
    Packaging Details: cartons, pallet
    Delivery Time: 7~10 working days
    Payment Terms: T/T, Western Union, MoneyGram, L/C
    Supply Ability: 100000 pcs per Month
    Contact Now
    Detailed Product Description
    Power Source: Electric Temperature Range: -200~650℃
    Voltage: 12-480V Probe Material: SS304/SS316
    Style: K, J, S Pairs Quantity Of Element: Simplex/duplex
    Heating Element: Nichrome Resistance Mounting: Thread/flange/none
    Function: Temperature Sensor Feature: Economical
    Types Of Terminal Box: Anti-spray/water-proof Connection: Thread
    Sample: Available



    3-wire rtd pt100 thermocouple for 300c 600C in high temperature

    Description:

    The appearances of sheath thermocouples are greatly differential due to their different use requirements. But their basic structures are roughly the same. They are usually composed to the main components such as armoured thermocouple elements, mounted fixing devices, connection boxes and so on .


    1. Sheath thermocouple element: it is a solid substance combined by metal sleeves, insulants (commonly the magnesia powder) and thermocouple wires. According to the structural form of the measured terminal, It may be divided into unground type , ground type, terminal exposed type , separable unground type for consumers’ choice. If not defined by the consumers , we may offer the unground type.
    2. For installing the setting device, its structural form may be divided into non-fixing device , fixed cutting sleeve thread, movable cutting sleeve screw, fixed cutting sleeve flange , fixed compressed flange, flexible compressed flange, outer protection tube type etc.
    3. The connection methods: its structure may be divided into porcelain patch board, easy type, co-external diam. Protection cap type, anti-splash connecting box type, water-proof terminal block type, explosion isolation junction block type, socket type, spring- load type, handle type, with compensation conductor type etc.


    Specification:

    K type thermocouple temperature sensor
    Mark: N.K.E.J.T.R
    Material:304/316/316L
    Materials wire: metal wire
    Temp. :0-400C



    PT100 /K /J -X-X-X-X-X
    Probe diameter (mm) X 3 ,4,5......
    Probe length (mm) X 40,50,60......
    Fittings N No fittings
    M6 M6
    M8 M8
    M12 M12
    1/2"NPT 1/2"NPT
    1/4"NPT 1/4"NPT
    More options More options
    Wire length(mm) X 1000,1500,2000.......
    Wire material SS Stainless steel
    PVC PVC
    More options .......

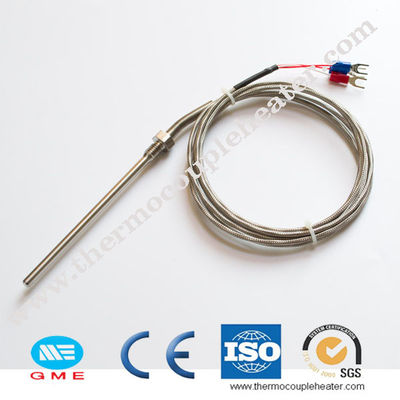

    Electric 3- Wire Thermocouple RTD Pt100 For 300c 600C In High Temperature


    Feature:

    1)Factory with 25 years experience.
    2)Quick delivery ( within 3~5 working days).
    3)Retail/Wholesale/OEM/ODM available .
    We expect to cooperate with machinery manufacturers, better price for bulk order.
    4)We provide after sales service and technical assistance as per the customers requirement and needs.
