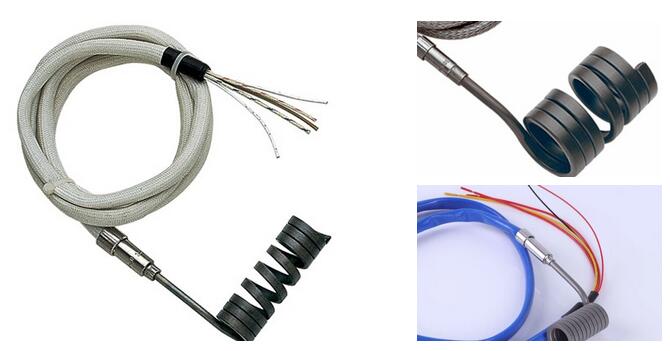

Spring Type Hot Runner Coil Heater With K Thermocouple 1M Cord Stainless Steel Braid

Large Image : Spring Type Hot Runner Coil Heater With K Thermocouple 1M Cord Stainless Steel Braid

Product Details:

Place of Origin:	China
Brand Name:	GME
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	cartons， pallet
Delivery Time:	7~10 working days
Payment Terms:	T/T, Western Union, MoneyGram, L/C
Supply Ability:	100000 pcs per Month

Contact Now

Detailed Product Description

Power Source:	Electric	Dimension:	Customized
Voltage:	12-480V	Sheath Material:	Stainless Steel Or Nickel
Cross Section:	3.2*1.8mm	Style:	Straight Or Coil
Lead Wire:	Copper, , Fiberglass Silicon	Coiling Scheme:	Tangential, Radial Exits, Axial
Highlight:	electric resistance heater , coil heater with thermocouple , Spring Type Hot Runner Coil Heater

Spring Type Hot Runner Coil Heater With K Thermocouple 1M Cord Stainless Steel Braid

Description:

1) Nozzle coil Heater is a tube-shapedindustrial heating element (electrical resistance), which is widely used in the process heating industry, usually custom manufactured to a specific watt density, based on its intended application.

2) There are various kinds of enamel tubular heater, U shape, W shape, double end, etc. Our enamel tubular heaters are customized according to your specifications.

Specification:

1. Maximum Sheath Temperature: 700°C
2. Voltage: 12V~380V
3. Wattage: 70W~1000W
4. Sectional area: 3X3, 4.2X2.2, 4X2, 4X2.7, 4X2.5 3.3 X 3.3 3.5 X 3.5 4 X 4,2.2X1.3

5. Available sheath: nylon,metal braided,fiberglass ,silicone rubber, kevlar

Features

* Standard sizes available with various cross section

* Various Watt Density option available
* Designed for even heat profile
* Precision fit on Hot Runner Nozzles
* Highly Non-corrosive

Build-in thermocouple power	With or without J/K thermocouple
Available sheath	nylon,metal braided,fiberglass ,silicone rubber, kevlar
Sheath's color	standard is black,other color is also available
Resistance Wire	Ni Cr 80-20
Die Electrical Strength	800V A/C
Insulation	>5 M W
Thermocouple	J type (Standard) or K type
Unheated Length	35 mm Standard
Wattage Tolerance	+ 10% (+ 5% Available Upon Request)
Resistance Tolerance	+ 10% (+ 5% Available Upon Request)

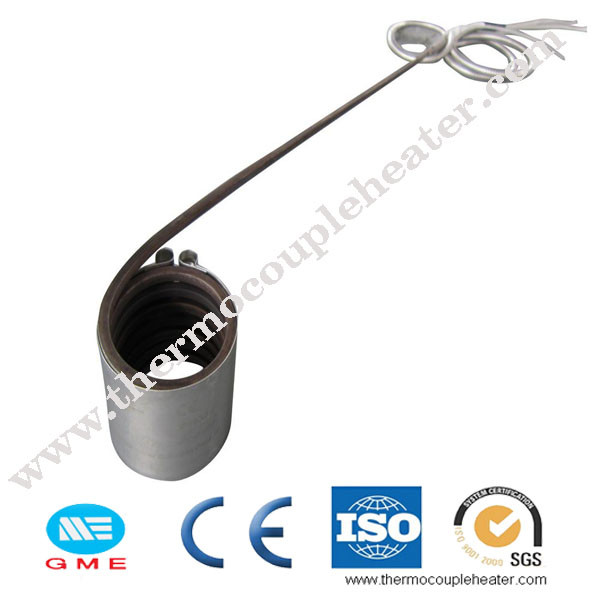

Spring Type Hot Runner Coil Heater With K Thermocouple 1M Cord Stainless Steel Braid 0

Application:

l Plastic Processing machinery.

l Water and Oil Heating Appliances.

l Packaging machineries

l Vending Machines.

l Dies and Tools.

l Heating Chemical Solutions.

l Ovens & Dryers

l Kitchen equipments

l Medical equipments
