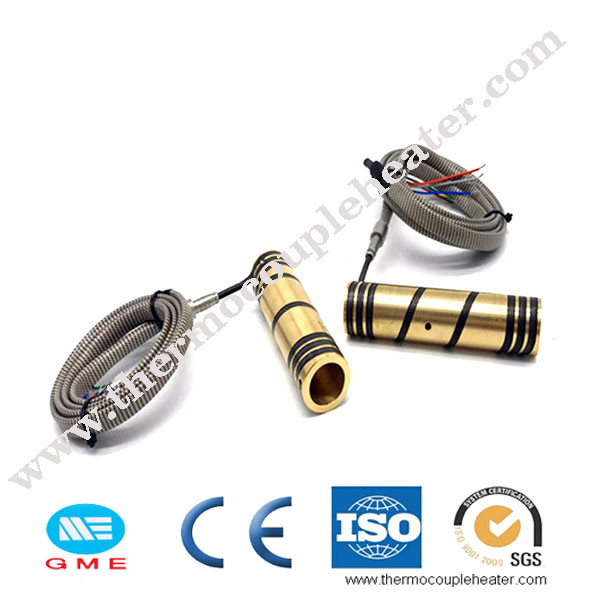

20mm Barrel Spring Type Brass Coil Heaters , Small Heating Element For Mould

20mm Barrel Spring Type Brass Coil Heaters , Small Heating Element For Mould

    • 20mm Barrel Spring Type Brass Coil Heaters , Small Heating Element For Mould
    • 20mm Barrel Spring Type Brass Coil Heaters , Small Heating Element For Mould
    • 20mm Barrel Spring Type Brass Coil Heaters , Small Heating Element For Mould
    • 20mm Barrel Spring Type Brass Coil Heaters , Small Heating Element For Mould
    • 20mm Barrel Spring Type Brass Coil Heaters , Small Heating Element For Mould
    • 20mm Barrel Spring Type Brass Coil Heaters , Small Heating Element For Mould
  • 20mm Barrel Spring Type Brass Coil Heaters , Small Heating Element For Mould

    Product Details:

    Place of Origin: China
    Brand Name: GME
    Certification: CE

    Payment & Shipping Terms:

    Minimum Order Quantity: 50pcs
    Price: Negotiable
    Packaging Details: cartons, pallet
    Delivery Time: 7~10 working days
    Payment Terms: T/T, Western Union, MoneyGram, L/C
    Supply Ability: 100000 pcs per Month
    Contact Now
    Detailed Product Description
    Power Source: Electric Dimension: Customized
    Voltage: 120v 220v 240v 380v, 220V Sheath Material: Stainless Steel Or Nickel
    Cross Section: 3.0x3.0,3.3x3.3mm,4.50 * 4.50 Mm Style: Straight Or Coil
    Lead Wire: Teflon, Fiberglass , Metal Mesh Coiling Scheme: Tangential, Radial Exits, Axial
    Material: Brass And Stainless Steel Application: Manifolds, Hot Runner/ Injection
    Color: Silver Or Fully Black



    20mm barrel spring type brass coil heater heating element for mould



    Description:



    1) Length of hot runner heater within 20-3000mm is mainly used for hot runner mold or as well as other precision heating system.Spring heating ring external using high quality Ni-Cr steel tube,the internal use of high purity magnesium oxide,high temperature resistance wire,and first-class manufacturing technology.



    2) The wire is after the annealed,with flexibility can be sent into an arc or circle heating.Its high working temperature,fast heating,uniform heating precision,long service life,can be automatically controlled area,high thermal conduction,while internal heating material damage,while internal heating material damage,external can be reuses.



    Specification:



    1.simple structure
    2.long-time usage
    3.high efficient heater exchange
    4.it could easy to bent into many kinds of shape
    5.good insulation could withstand high voltage



    Cross Section
    1.5mm , 1.8mm, 1.3x2.3mm
    Sheath material
    Chrome Nickel Steel
    Insulation material
    High purity MgO
    Heating element
    NiCr 8020
    Voltage Range
    Maximum 250 volts, standard 230 volts
    Power rating
    Depending on application
    Insulation Resistance
    10 MW @ 500V DC (special on request)
    Power tolerance
    ± 10% (Tighter Tolerance available)
    Current Leakage
    < 0.5 mA @ 253 V AC
    Unheated Length
    Minimum 25 mm plus adapter connection
    Minimum Bending diameter
    6mm


    20mm Barrel Spring Type Brass Coil Heaters , Small Heating Element For Mould



    Application:



    1. Injection moulding machine nozzle
    2. Hot Runner Nozzles & Bushings
    3. Packaging machineries
    4. Hot runner Injection moulds.
    5. Injection & Blow Moulding Machine Nozzles.
    6. PET prefrom & Thin wall container Moulds
    7. Hot runner Manifolds.
