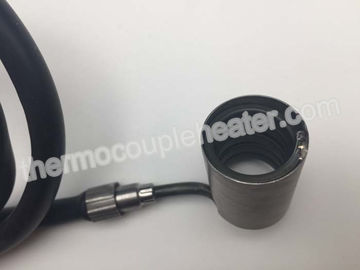

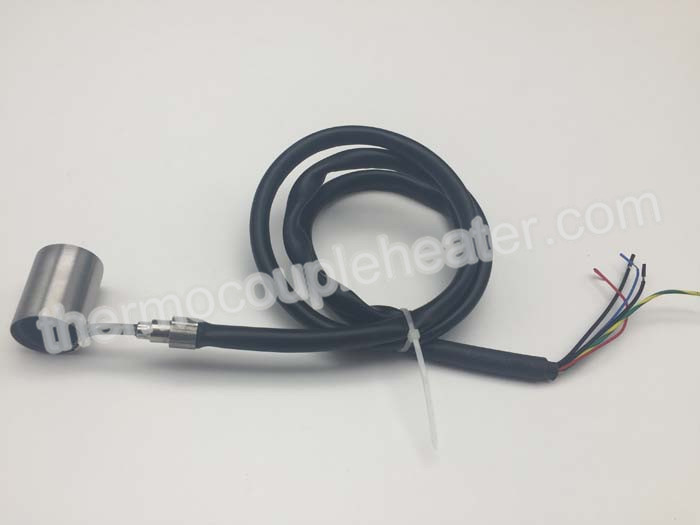

Armored Hot Runner Coil Heaters With J Type Thermocouple And Black Silicone Cable

Armored Hot Runner Coil Heaters With J Type Thermocouple And Black Silicone Cable

    • Armored Hot Runner Coil Heaters With J Type Thermocouple And Black Silicone Cable
    • Armored Hot Runner Coil Heaters With J Type Thermocouple And Black Silicone Cable
  • Armored Hot Runner Coil Heaters With J Type Thermocouple And Black Silicone Cable

    Product Details:

    Place of Origin: China
    Brand Name: GME
    Certification: CE & ISO
    Model Number: -

    Payment & Shipping Terms:

    Minimum Order Quantity: 10 pieces
    Price: negotiation
    Packaging Details: Export Carton Box
    Delivery Time: 7-15 working days
    Payment Terms: L/C, D/P, T/T, Western Union, Paypal
    Supply Ability: 20,000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: Straight Hot Runner Coil Heater With J Type Thermocouple And Black Silicone Cable Thermocouple: Type J
    Application: Hot Runner Plastic Mold Material: Stainless Steel 304, 316
    Moisture Proof: IP 65 Insulated Material: Comressed MgO
    Warranty: 1 Year Lead Wire Length: 1000 Mm Or Customized
    High Light:

    electric resistance heater

    ,

    coil heater with thermocouple

    ,

    Armored Hot Runner Coil Heaters



    Armored Hot Runner Coil Heaters With J Type Thermocouple And Black Silicone Cable





    1. Coil Heater Brief Introduction



    Coil heaters are high performance mini tubular heaters that have small rectangular, square or round cross sections that are flexible and can acquire different shapes and configurations.



    Cable heaters could be coiled, to form coil heaters that are ideal whenever a large amount of heat is required in a confined space. Coil heaters have many applications but are mostly utilized as powerful heating cells inside hot runner nozzles in plastic injection molding.



    The sheath material of standard cable heaters is stainless 304; their heating core is coiled or straight solid Nickel Chrome wire. Cable heaters can transmit up to 35 W/in2 heating capacity and can attain up to 15000F surface temperature.



    Coil and cable heaters can accommodate "J" type or "K" type thermocouple sensors that could be placed internally at the tip or the middle of a heater. They can be made as well to have profiled or distributed wattage configuration.



    2. Coil Heater Characteristics



    • Standard sizes available with various cross section
    • Various Watt Density option available
    • Designed for even heat profile
    • Advanced Thermal Engineering
    • Available with in built Thermocouple
    • Precision fit on Hot Runner Nozzles
    • Choice of Terminal Exits
    • Highly Non-corrosive



    3. Coil Heater Parameter.

    Armored Hot Runner Coil Heaters With J Type Thermocouple And Black Silicone Cable

    •

    Spring coil heater (H series)

    3.0x3.0
    3.3x3.3
    4.0x2.0
    4.2x2.2
    4.5x2.7

    Φ3.0

    Φ4.0

    Φ5.0

    3.5x3.5
    4.0x4.0

    5.0x5.0

    Voltage

    220V,230V,240V

    Power tolerance 115W-200W

    +/-10%

    Power tolerance  201W-2000W

    +5%-10%

    Out jacket length

    30mm~280mm

    Diameter of the inner sleeve/wrapped diameter

    10mm~42mm

    Unheating length

    45mm

    Max power density

    9W/cm²

    Heating Length tolerance

    +/-0.05mm

    Unheating length tolerance

    +/-2.5%

    Tolerance ID d ≤20mm

    Without inner sleeve:-0.15mm
    With inner sleeve:0.05mm~0.10mm

    Tolerance ID d 20mm~30mm

    Without inner sleeve:-0.20mm
    With inner sleeve:0.05mm~0.10mm

    Tolerance ID d ≥30mm

    Without inner sleeve:-0.25mm
    With inner sleeve:0.05mm~0.10mm

    Tolerance cross section

    +/-0.15mm

    +/-0.20mm

    Thermocouple

    K,J,E

    None

    Material

    304,321,316

    Maximum working temperature

    650℃

    Die electrical strength

    800V

    1000V



    4. Spring Coil Heater Application



    This Heating Coil is widely applied for hot runner system, plastic industry, packaging machinery, medical

    equipment, casting process,other electric heating industry, etc..
