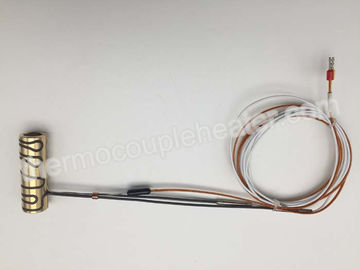

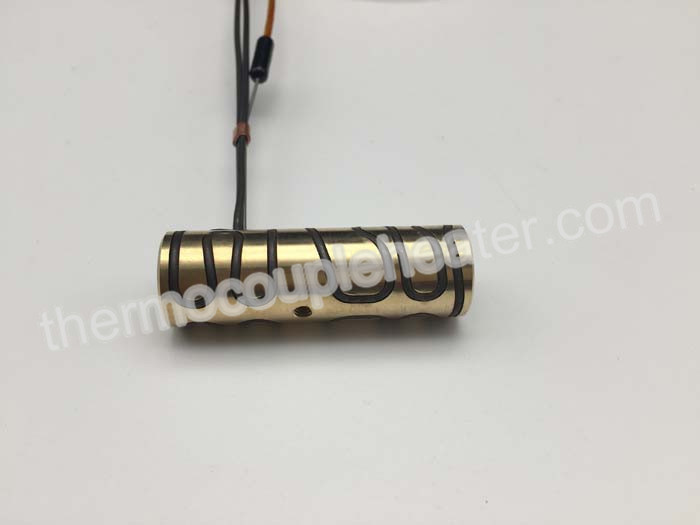

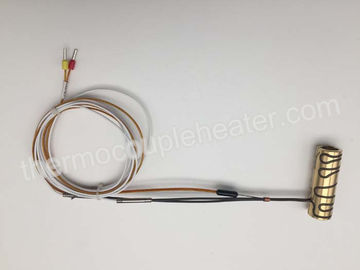

Moistureproof Press In Brass Nozzle Coil Heaters With Slot For Hot Runner System

Moistureproof Press In Brass Nozzle Coil Heaters With Slot For Hot Runner System

    • Moistureproof Press In Brass Nozzle Coil Heaters With Slot  For Hot Runner System
    • Moistureproof Press In Brass Nozzle Coil Heaters With Slot  For Hot Runner System
    • Moistureproof Press In Brass Nozzle Coil Heaters With Slot  For Hot Runner System
  • Moistureproof Press In Brass Nozzle Coil Heaters With Slot  For Hot Runner System

    Product Details:

    Place of Origin: China
    Brand Name: GME
    Certification: CE & ISO

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pcs
    Price: Negotiation
    Packaging Details: Standard Export Packing
    Delivery Time: 7-15 working days after received your payment
    Payment Terms: T/T or western Union or Paypal
    Supply Ability: 10,000 pcs per month
    Contact Now
    Detailed Product Description
    Name: Coil Heater Application: Hot Runner
    Material: Brass Lead Wire Length: 1000mm Or Customize
    Warranty: 1 Year Insulated Material: Comressed MgO
    Moistureproof: IP65 Cross Section: 1.5mm
    Thermocouple: Type J Tube Length: 110 Mm
    Form: Straight Or Coiled Type: Tangential, Radial Exits, Axial
    Wire: Braided Copper Tinned Conductor Etc Wire Insulation: Teflon Etc.
    Protection Sleeves: Fiberglass, Silicon, Braided Metal Screen Etc





    Pressed In Brass Nozzle Coil Heaters With Slot For Hot Runner System





    1. Introduction



    Wuhan Global Metal hot runner coil heater use Germany heater wire, United States high-purity magnesium oxide material, and strict process technology. There are various cross section and size for choice, such as square, round and flat, provide high-performance electric heater for heating hot runner mold and other fields.

    Heater maximum temperature up to 650 ºC, the integration of temperature thermocouple for the precise temperature control, can provide K, J, E thermocouple, blasting and blackening surface treatment, also can provide bright surface.





    2. Characteristics



    1) Very good performance of the heating uniformity in the heating area.

    2) The inside insulated cover, same as the German GC.

    3)The moisture-proof is IP65.

    4) High insulation (more than 500M ohm) and high pressure resistance (1000V above), can meet special requirement if customers need.





    3. Parameter



    Spring coil heater (H series) 3.0x3.0
    3.3x3.3
    4.0x2.0
    4.2x2.2
    4.5x2.7
    Φ3.0 Φ4.0 Φ5.0 3.5x3.5
    4.0x4.0
    5.0x5.0
    Voltage 220V,230V,240V
    Power tolerance 115W-200W +/-10%
    Power tolerance 201W-2000W +5%-10%
    Out jacket length 30mm~280mm
    Diameter of the inner sleeve/wrapped diameter 10mm~42mm
    Unheating length 45mm
    Max power density 9W/cm²
    Heating Length tolerance +/-0.05mm
    Unheating length tolerance +/-2.5%
    Tolerance ID d ≤20mm Without inner sleeve:-0.15mm
    With inner sleeve:0.05mm~0.10mm
    Tolerance ID d 20mm~30mm Without inner sleeve:-0.20mm
    With inner sleeve:0.05mm~0.10mm
    Tolerance ID d ≥30mm Without inner sleeve:-0.25mm
    With inner sleeve:0.05mm~0.10mm
    Tolerance cross section +/-0.15mm +/-0.20mm
    Thermocouple K,J,E None
    Material 304,321,316
    Maximum working temperature 650℃
    Die electrical strength 800V 1000V





    4. Application



    hot runner system

    plastic industry

    packaging machinery

    medical equipment

    casting process

    other electric heating industry
