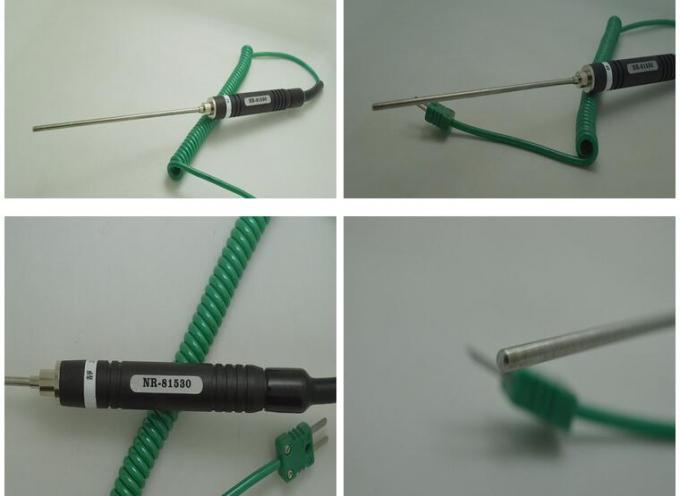

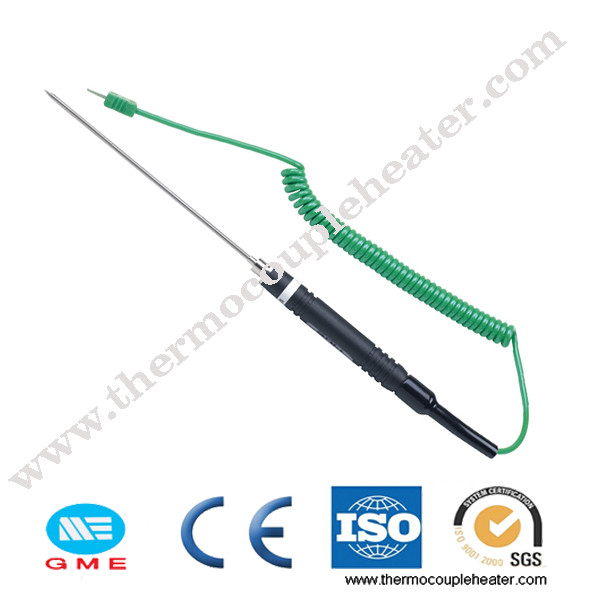

Portable Handheld Surface Thermocouple RTD Type K For Food Industry Use

Armoured K type thermocouple with SS sheath and Mineral insulated cable

Description:


1) Thermocouples are used in industry for measuring the temperature of gases, liquids or solid surfaces etc., Its usually assembled with indicators, recorders or computers.

2) A thermocouple consists of two dissimilar metals joined together at one end. When the junction of the two metals be cooled or heated and a voltage is produced that can be correlated back to the emperature.The calibrations are K, N, E.J, T, S, R, B. Each calibration has a different temperature range.


Specification:

1. Sheath thermocouple element: it is a solid substance combined by metal sleeves, insulants (commonly the magnesia powder) and thermocouple wires. According to the structural form of the measured terminal, It may be divided into unground type , ground type, terminal exposed type , separable unground type for consumers’ choice. If not defined by the consumers , we may offer the unground type.
2. For installing the setting device, its structural form may be divided into non-fixing device , fixed cutting sleeve thread, movable cutting sleeve screw, fixed cutting sleeve flange , fixed compressed flange, flexible compressed flange, outer protection tube type etc.
3. The connection methods: its structure may be divided into porcelain patch board, easy type, co-external diam. Protection cap type, anti-splash connecting box type, water-proof terminal block type, explosion isolation junction block type, socket type, spring- load type, handle type, with compensation conductor type etc.
