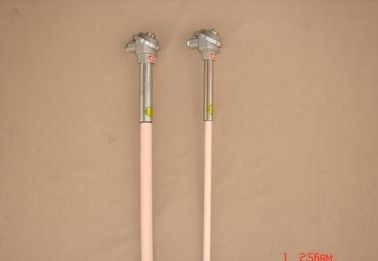

High Temperature Immersion Sensor R S B Platinum Rhodium Type Ceramic Probe Thermocouple

High Temperature Immersion Sensor R S B Platinum Rhodium Type Ceramic Probe Thermocouple

    • High Temperature Immersion Sensor R S B Platinum Rhodium Type Ceramic Probe Thermocouple
    • High Temperature Immersion Sensor R S B Platinum Rhodium Type Ceramic Probe Thermocouple
  • High Temperature Immersion Sensor R S B Platinum Rhodium Type Ceramic Probe Thermocouple

    Product Details:

    Place of Origin: Wuhan, China
    Certification: ISO9001/ CE

    Payment & Shipping Terms:

    Minimum Order Quantity: 10pcs
    Packaging Details: Carton for export
    Delivery Time: 7~20 working days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 100000 pcs per Month
    Contact Now
    Detailed Product Description
    Type: S Type Thermocouple Tube Diameter: 8/10/16/22/25mm
    Wire Material: Platinum Rhodium Key Words: Ceramic Temperature Sensor
    Temperature: 0-1600℃



    High Temperature Immersion Sensor R S B Platinum Rhodium Type Ceramic Probe Thermocouple

    Specification:

    1.S type thermocouple
    2.Tempe.range:0~1600C/1800C
    3.probe size:25*1350mm
    4.Protectiontube:Corundum&310S
    5.ISO9001-2008/CE

    Information
    Type S thermocouples are constructed using one wire of 90% Platinum and 10% Rhodium (the positive or "+" wire) and a second wire of 100% platinum (the negative or "-" wire). Like type R, type S thermocouples are used up to 1600 °C. In particular, type S is used as the standard of calibration for the melting point of gold (1064.43 °C).

    Type B thermocouples use a platinum–rhodium alloy for each conductor. One conductor contains 30% rhodium while the other conductor contains 6% rhodium. These thermocouples are suited for use at up to 1800 °C. Type B thermocouples produce the same output at 0 °C and 42 °C, limiting their use below about 50 °C.

    WR Serial thermocouple

    1. Graduation mark : N/K/E/J/T/S/R/B
    2. Thermocouple pair No.
      1. Single No.
    3. Setting device
      1. Non-fixed setting device
    4. Cold junction form
      1. Easy type
      2. Anti-splash terminal block type(may be replaced by water-proof type)
      3. Water-proof terminal block type
    5. Outer protection tube materials
      1. Diameter 16mm outer protection tube
    6. Outer protection tube materials
      1. T1 High alumina (admantine spar) porcelain outer protection tube



    Product Description



    Thermocouple category Product model Graduation mark Thermometric Specification Thermal response
    scope Diam(mm) Protection tube material Time T (s)
    Single WRB-120-T     Φ16   <150
    Pt Rh30-Pt Rh6 WRB-121-T     Φ25   <360
    Double WRB-120-T B 0~1800 Φ16 Corundum material <150
    PtRh 30-Pt Rh6 WRB-121-T     Φ25   <360
    single Pt Rh 10-Pt WRS-120-T     Φ16   <150
    WRS-121-T     Φ25 High-alumina material <360
    Double Pt Rh10-Pt WRS-120-T S 0~1600 Φ16   <150
    WRS-121-T     Φ25   <360



    High Temperature Immersion Sensor R S B Platinum Rhodium Type Ceramic Probe Thermocouple
    High Temperature Immersion Sensor R S B Platinum Rhodium Type Ceramic Probe Thermocouple
    High Temperature Immersion Sensor R S B Platinum Rhodium Type Ceramic Probe Thermocouple
