Barrels And Dies Of Mica Insulated Band Heaters For Plastic Molding Machines

    • Barrels And Dies Of Mica Insulated Band Heaters For Plastic Molding Machines
    • Barrels And Dies Of Mica Insulated Band Heaters For Plastic Molding Machines
  • Barrels And Dies Of Mica Insulated Band Heaters For Plastic Molding Machines

    Product Details:

    Place of Origin: Wuhan, China
    Certification: ISO9001:2008

    Payment & Shipping Terms:

    Minimum Order Quantity: 10pcs
    Packaging Details: packing for export
    Delivery Time: 5-8 working days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 500 Set/Sets per Month
    Contact Now
    Detailed Product Description
    Sheath Material: S.steel/ Brass Voltage: 110-380V
    Thermocouple: K /J Lead Wire: S.steel Braided / Fiberglass Silicone Sheath
    Heating Element: Nickle Chrome Wire/ribbon Insulation: Mica/ceramic


    Barrels And Dies Of Mica Insulated Band Heaters For Plastic Molding Machines

    Product Description

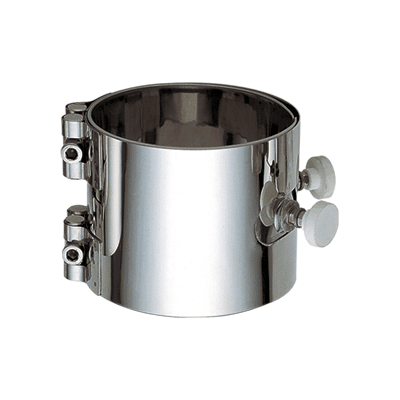

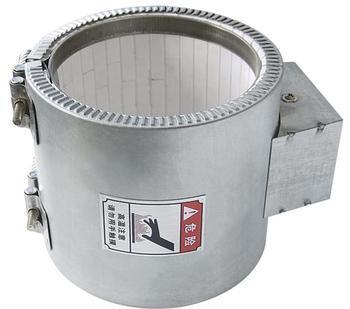

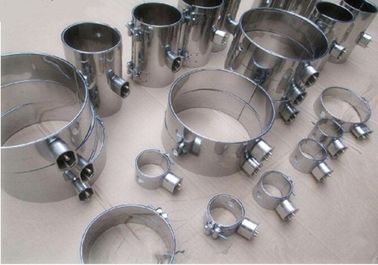

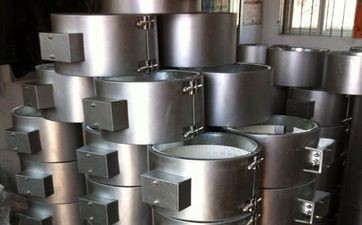

    Nozzle & Band Heaters Description:

    Nozzle & Band heaters are are used in plastic processing industry for keeping the nozzles of injection molding machines hot. Nozzle heaters are manufactured from high quality mica sheet or ceramic, and have Nickel Chrome resistance. Nozzle heaters are covered by metal sheathing & can be rolled to the required shape. Band heaters operate efficiently when the sheath temperatures are kept below 280 degree centigrade. If this temperature is maintained, the life of the band heaters gets long.


    Nozzle & Band Heater Features

    • The sheath of the heater is rust resistance.
    • High class Nickel Chrome ribbon is used.
    • Maximum power: 3w/cm2(s.steel),4.5w/cm2(brass),6.5w/cm2(ceramic insulation)
    • Operating temperature up maximum of 500 degree centigrade
    • Axial, Radial & Tangential terminals are available
    • Thermocouple holes can be provided as per client's requirements

    Nozzle & Band Heater Applications:

    • Plastic processing Machinery
    • Injection & Blow Molding
    • Extruders
    • Many other Applications. (Medical, Lab-equipments…etc)

    Barrels And Dies Of Mica Insulated Band Heaters For Plastic Molding Machines

    Barrels And Dies Of Mica Insulated Band Heaters For Plastic Molding Machines

    Barrels And Dies Of Mica Insulated Band Heaters For Plastic Molding Machines
