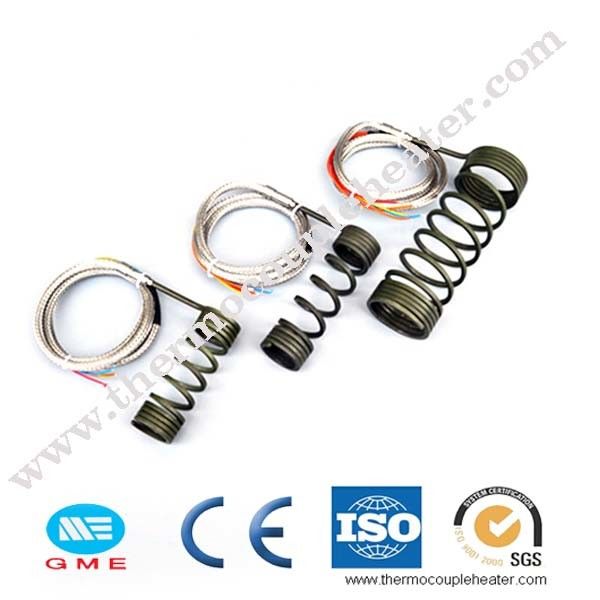

Spring Coil Heaters With Thermocouple Customized For Nozzle/ Heat Exchange

Spring Coil Heaters With Thermocouple Customized For Nozzle/ Heat Exchange

    • Spring Coil Heaters With Thermocouple Customized For Nozzle/ Heat Exchange
    • Spring Coil Heaters With Thermocouple Customized For Nozzle/ Heat Exchange
    • Spring Coil Heaters With Thermocouple Customized For Nozzle/ Heat Exchange
    • Spring Coil Heaters With Thermocouple Customized For Nozzle/ Heat Exchange
  • Spring Coil Heaters With Thermocouple Customized For Nozzle/ Heat Exchange

    Product Details:

    Place of Origin: China
    Brand Name: GME
    Certification: CE

    Payment & Shipping Terms:

    Minimum Order Quantity: 50pcs
    Price: Negotiable
    Packaging Details: cartons, pallet
    Delivery Time: 7~10 working days
    Payment Terms: T/T, Western Union, MoneyGram, L/C
    Supply Ability: 100000 pcs per Month
    Contact Now
    Detailed Product Description
    Power Source: Electric Dimension: Customized
    Voltage: 120v 220v 240v 380v, 220V Sheath Material: Stainless Steel Or Nickel
    Cross Section: 3.0x3.0,3.3x3.3mm,4.50 * 4.50 Mm Style: Straight Or Coil
    Lead Wire: Teflon, Fiberglass , Metal Mesh Coiling Scheme: Tangential, Radial Exits, Axial
    Material: Brass And Stainless Steel Application: Manifolds, Hot Runner/ Injection
    Surface Finishing: Bright Or Soft Annealed Insulation Resistance: > 5 MΩ

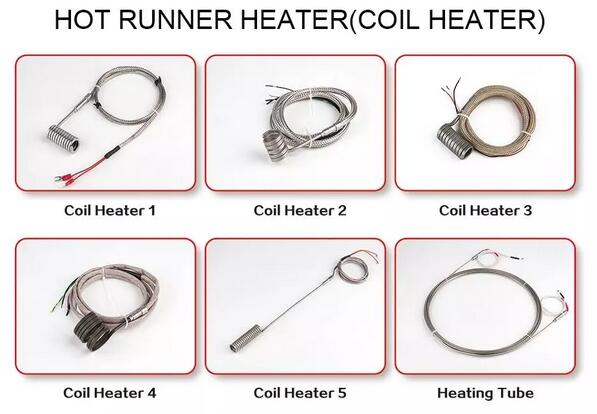

    Spring Coil Heaters With Thermocouple Customized For Nozzle/ Heat Exchange

    Description:



    1) Spring coil heater is made of nickel chrome resistance wire placed inside chrome nickel steel tube that is filled with MgO powder.



    2) Spring coil heater is also known as high performance tubular heaters or cable heaters. 3) Spring heater can be produced with or without built in thermocouples.



    4) Spring coil heater is widely used in heating engineering, mold, plastic industry, including the transfer machinery, medical equipment, casting process, welding, heat treatment process and many other industries and fields


    Specification:



    1) Customized voltage and power



    2) Various sizes of cross section, including 1.8, 2*4, 2.2*4.2, 3.0, 3*3, 3.5*3.5, 4*6 and other specifications.
    3) High watt density 25w/sq.cm, low watt density 5w/sq.cm.

    4) Temperature: 650 degree
    5) Materials: stainless steel
    6) Thermocouple type J/K/E can be attached.

    7) High temperature Teflon lead wire



    Model Dimension(MM) Voltage(V) Power(W) Key technical indexes
    Φ45x50 Φ45x50 220 1000

    1.Use condition: environment temperature -20~+60°C,

    2.Leakage current <0.5MA

    3.Insulation resistance ≥5M

    4.Ground resistance <0.1

    5.Voltage resistance: no electric breakdown for 1 minute under 1500V

    6.Temperature endurance: 100-1200°C



    Φ22X160 Φ22X160 230 1200
    Φ40X40 Φ40X40 220 400
    Φ30X50 Φ30X50 220 400
    Note: Other models are available according to your specifications. Please refer to the Order Guide





































    Spring Coil Heaters With Thermocouple Customized For Nozzle/ Heat Exchange


    Application:



    1.Caustic Cyanide used in gold processing
    2.Caustic solutions Detergent
    3.Sterilizing equipment
    4.Plastic processing&packaging machinery
    5.Ovens&dryers
    6.Dies&Tools
    7.Water& Oil heating appliances
    8.Vending machines
    9.Medical equipmentstailed information about what you need.
