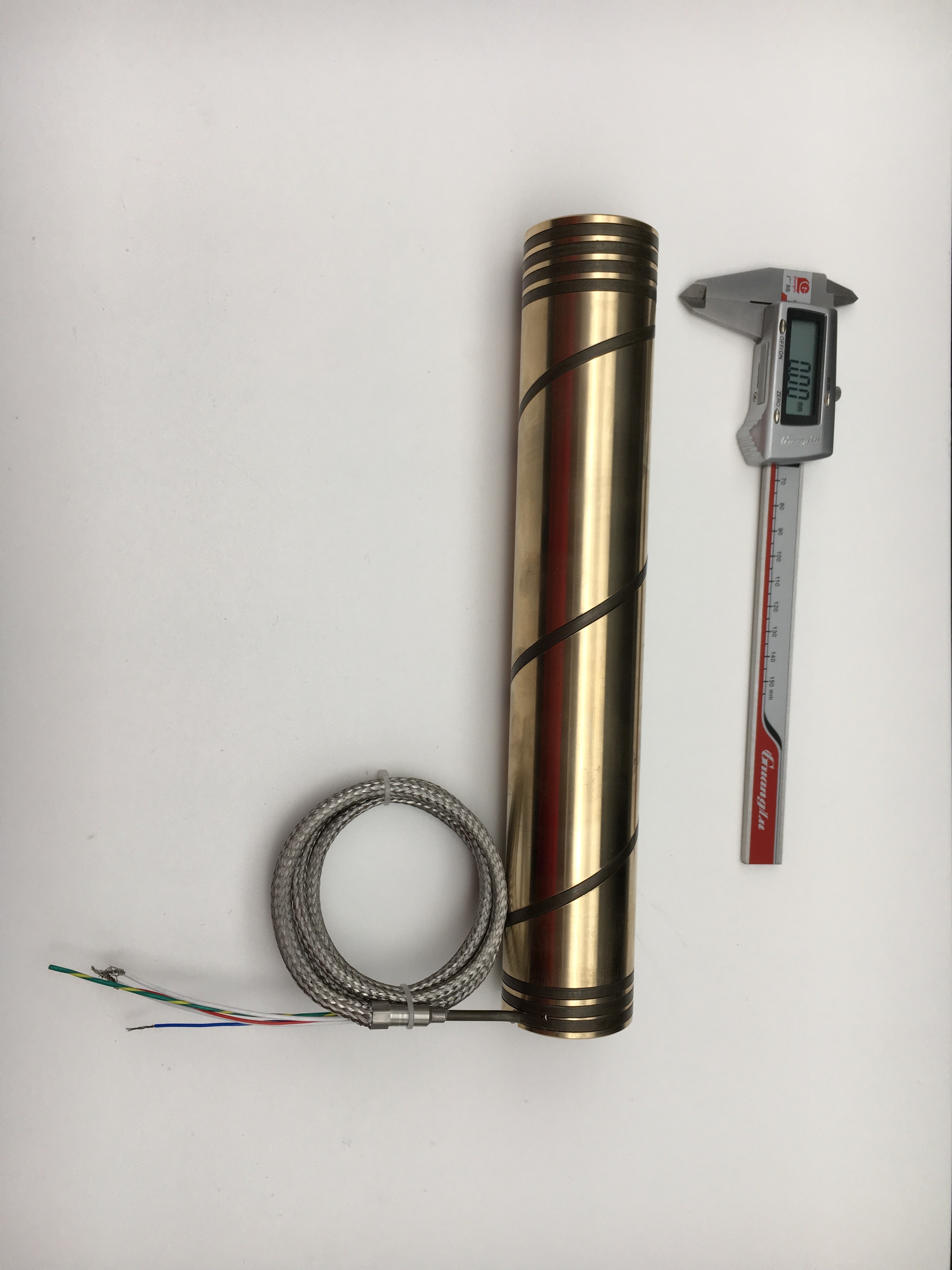

Injection Mould Brass Electric Tube Heaters 230V 1000W ODM / OEM Service

Injection Mould Brass Electric Tube Heaters 230V 1000W ODM / OEM Service

Injection Mould Brass Electric Tube Heaters 230V 1000W ODM / OEM Service

Product Details:

Place of Origin: China
Brand Name: GME
Certification: ISO

Payment & Shipping Terms:

Minimum Order Quantity: 100 PCS
Price: negotiatable
Packaging Details: export carton, wooden box
Delivery Time: 15 days after receiving full payment
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Size: ID 40.00mm X48.00mm X282 MmL Cross Section Size: 3mm*3mm
Voltage: 230V Power: 1000W



Injection Mould Brass Electric Tube Heaters 230V 1000W ODM / OEM Service



Description:



230v 1000w enclosed brass nozzle heater in plastic injection mould is an advance concept of thermal engineering which has a construction similar to high watt density cartridge heaters,our production length in 400-3000mm is mainly used for hot runner mold ,as well as other precision heating system.Spring heating ring external using high quality Ni-Cr steel tube,it has glass fiber package which can prevent leakage,the external use of high purity magnesium oxide, hightemperture resistance wire, and first-class manufacturing technology.These Heaters can be constructed with or without built in thermocouples. Its high working temperature ,fast heating,uniform heating precision,long service life,can be automatically controlled area,high thermal conduction,while internal heating material damage,external can reuse.



Features:



Voltage and power according to your requirement

Building in the thermocouple according to your requirement



Specification:



Inner Diameter of coiled heater 8-100mm(+0.05mm)
Coil style Length 15-400mm(+0.05mm)
Staright style length 400-3000mm(0.5mm)
Cross-section

Round Dia:1.8mm;3.7mm;4.2mm

Square:3.2×3.2mm;3.6×3.6mm;

Rectangular:1.5×2.1mm;2.2×4.2mm;2.3×4.3;4×6mm;

Tube Material SUS304/SUS316
Power According to your requirement
Insulation High purity MGO
Inner heating element NiCr8020
Voltage 110v;220v;240v;380v
Wattage 100-1500W(5w/cm2) +5% -10%
Max temperature 650℃
Built-in thermocouple With or without J/K TC(Available)
Service ODM/OEM
Delivery time

7 days (10-500pcs)

15days(More than 500pcs)
