Stainless Steel Mica Heater Bands For Injection Molding / Plastic Process Equiptment

Stainless Steel Mica Heater Bands For Injection Molding / Plastic Process Equiptment

    • Stainless Steel Mica Heater Bands For Injection Molding / Plastic Process Equiptment
    • Stainless Steel Mica Heater Bands For Injection Molding / Plastic Process Equiptment
    • Stainless Steel Mica Heater Bands For Injection Molding / Plastic Process Equiptment
  • Stainless Steel Mica Heater Bands For Injection Molding / Plastic Process Equiptment

    Product Details:

    Place of Origin: China
    Brand Name: GME
    Certification: CE & ISO
    Model Number: -

    Payment & Shipping Terms:

    Minimum Order Quantity: 10 pieces
    Price: negotiation
    Packaging Details: Export Carton Box
    Delivery Time: 7-15 working days
    Payment Terms: L/C, D/P, T/T, Western Union, Paypal
    Supply Ability: 20,000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: 77mm X 140mm 220V 400W Stainless Steel Mica Strip Heater For Plastic Process Equiptment Application: Plastic Mold
    Material: Stainless Steel 304, 316 Insulated Material: Mica
    Warranty: 1 Year Lead Wire Length: 1000 Mm Or Customized

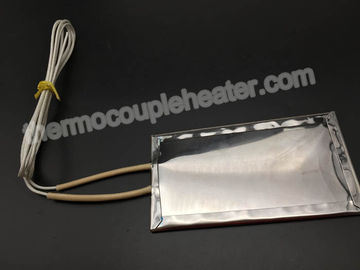

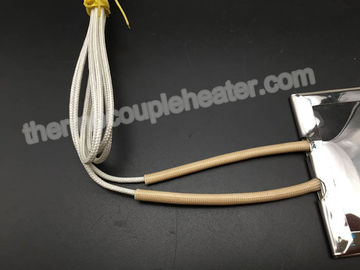

    77mm x 140mm 220V 400W Stainless Steel Mica Strip Heater For Plastic Process Equiptment





    1. Mica Strip Heater Brief Introduction



    Mica strip heater is made of mica insulation with nickel chrome heating wire, stainless steel as sheath.. Mica strip heater ( Mica heater plate ) use good insulation property mica and heat-resistant property, mica strip heater ( sheet ) as support and insulation layer, stainless steel board as support protection sheath, mica strip heater can be made as plate shape, sheet shape, column shape, canister shape, band shape etc different shapes heating element. Mica strip heater can be designed high power as 1000W, max temperature 300 °C.







    2. Mica Strip Heater Technical Information​.



    Heater material :copper, SS304, cast aluminum, cast copper, ceramic
    Insulation material :imported high-temperature mica
    Wattage tolerance: +5%-10%

    Resistance wire: Ni80Cr200
    Electrical property: ≤0.5mA
    Input voltage and wattage :to be customized as request
    Specification :to be customized as request







    3. Mica Strip Heater Features:

    Stainless Steel Mica Heater Bands For Injection Molding / Plastic Process Equiptment



    mica heater mica strip heater
    sheath 304 stainless steel
    insulation mica
    resistance heating wire nickel chrome wire
    temperature 500-600 degree celsius
    wattage density 3w per square centimetre
    shape customized demands available







    4. Mica Band Heater Application



    Band heaters are commonly used in the plastics industry: to heat plasticization cylinders, extruders and injection presses. They are also employed on woodworking machinery and scientific-medical equipment.

    Flat mica bands are used in the packing trade (sealing bars and wheels), industrial ironing (mangles) and plastics (extrusion/blower machines).



    Injection molding
    Blow-molding
    Plastic extrusion
    Container, pipe, or tank heating
    Process applications
