Armored K Type Thermocouple Temperature Sensor High Temperature Thermocouple

Armored K Type Thermocouple Temperature Sensor High Temperature Thermocouple

    • Armored K Type Thermocouple Temperature Sensor High Temperature Thermocouple
    • Armored K Type Thermocouple Temperature Sensor High Temperature Thermocouple
  • Armored K Type Thermocouple Temperature Sensor High Temperature Thermocouple

    Product Details:

    Place of Origin: China
    Brand Name: GME
    Certification: CE

    Payment & Shipping Terms:

    Minimum Order Quantity: 50pcs
    Packaging Details: cartons, pallet
    Delivery Time: 7~10 working days
    Payment Terms: T/T, Western Union, MoneyGram, L/C
    Supply Ability: 100000 pcs per Month
    Contact Now
    Detailed Product Description
    Voltage: 12-480V Probe Material: SS304/SS316
    Pairs Quantity Of Element: Simplex/duplex Heating Element: Nichrome Resistance
    Mounting: Thread/flange/none Function: Temperature Sensor
    Feature: Economical Types Of Terminal Box: Anti-spray/water-proof



    Armored K typeThermocouple Temperature sensor high temperature thermocouple

    Description:



    1) K type thermocouple sensor is used for temperature measuring and calibration.It consists of two dissimilar metal wires, joined at one end.Industrial-purpose K type thermocouple is usually connected with display meter and other meters to directly measure temperature of liquid, vapor, gas and solid surface ranging from -40°C to 1800°C.



    2) Thermocouples are manufactured in a variety of styles, such as thermocouple probes, thermocouple probes with connectors, transition joint thermocouple probes, infrared thermocouples, bare wire thermocouple or even just thermocouple wire.





    Specification:



    1,Easy assembly and convenient for replacement.
    2,Spring thermal element with good shock-proof performance.
    3,Wide measuring range.
    4,High mechanical strenghth, good pressure-resistant.
    5,Can be used to measure high temperatures because metals have high melting points.
    6, Respond very quickly to temperature changes because metals have high conductivities.
    7,Sensitive to very small changes in temperature.
    8,Has precision accuracy in temperature measurement.



    Dimension As per customer's request
    Temperature range As per customer's request

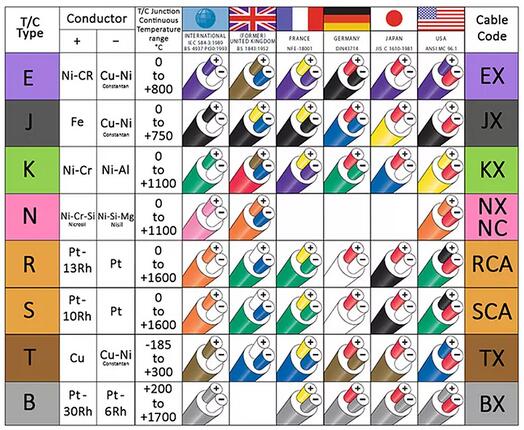

    Sensor Type K, E, J, T, B, R, S, RTD PT100
    Element Single or Dual
    Thermocouple Head Cast iron, Die Cast Aluminum, Polypropylene, Explosion Proof, Bakelite, Wall mounted (for freezing purpose)
    Process Connection 1/8”, 1/4”, 3/8”, 1/2”, 3/4”, 1”, 11/2” NPT or PF
    Element Size
    (mineral insulated)
    1.0, 1.6, 3.2, 4.8, 6.4, 8.0 mm

    Element Size

    (non-mineral insulated)

    2.3, 3.2, 4.0, 4.8, 5.0, 6.0, 6.3, 8.0, 9.5, 10, 12, 12.7, 15, 16, 20.5, 21.7 mm
    Tube Material 304SS, 310SS, 316SS, 446SS (P4), INCONEL 600, Mullite 610, Al2O399.8% (710), TE (Teflon), Titanium, Hastalloy
    Junction Grounded, ungrounded, exposed




    Armored K Type Thermocouple Temperature Sensor High Temperature Thermocouple



    Application



    Thermocouple application includes temperature measurement for ovens, kilns, gas turbine exhaust, diesel engines, and other industrial processes. It is also widely use in science and industry such as steel industry, process plants, manufacturing, heating appliance, and etc.
